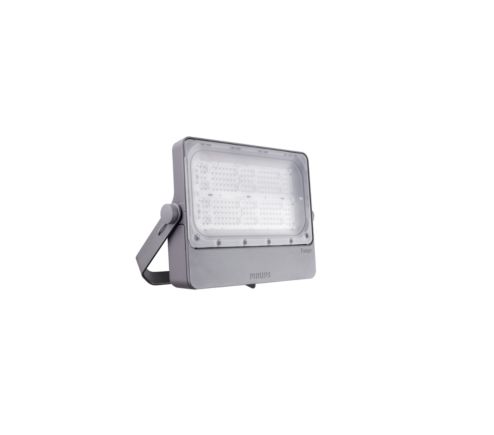

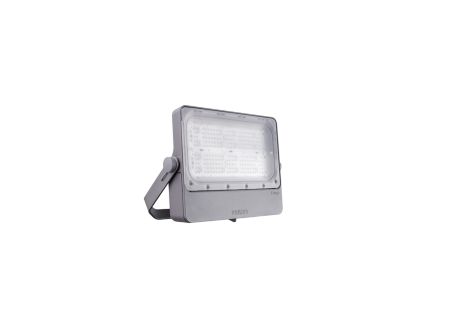

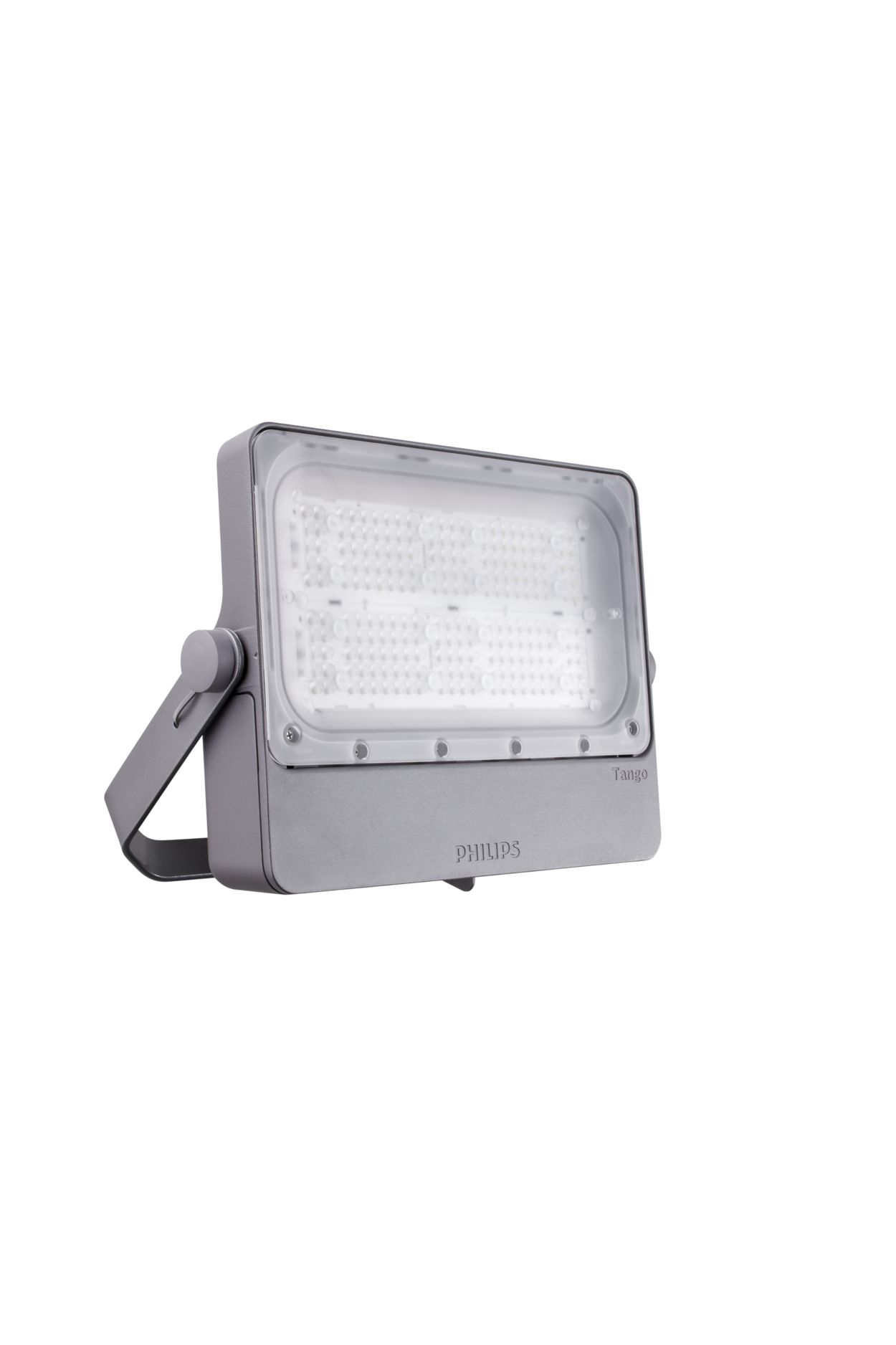

BVP432 LED206/NW 220~240V 150W SMB GM

Specifications Show all

Operating and Electrical

Connection	Flying leads/wires
Power Consumption	120 W
Line Frequency	50 or 60 Hz
Cable	Cable 1.5 m without plug
Input Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.9

Product Data

Order product name	BVP432 LED206/NW 220~240V 150W SMB GM
Order code	54048400
Full product code	871951454048400
Full product name	BVP432 LED206/NW 220~240V 150W SMB GM
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
Material number (12NC)	911401689006
EAN/UPC - Case	8719514540484

Approval and Application

CE mark	CE mark
Protection class IEC	Safety class I
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Control interface	-
Dimmable	No

General Information

Driver included	Yes
Lighting Technology	LED

Mechanical and Housing

Overall length	347 mm
Optical cover/lens material	Polycarbonate
Housing Color	Gray
Housing Material	Aluminum die cast
Overall width	414 mm
Dimensions (Height x Width x Depth)	77 x 414 x 347 mm
Overall height	77 mm

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Optical cover/lens type	Polycarbonate bowl/cover
Correlated Color Temperature (Nom)	4000 K
Light source color	740 neutral white
Luminous Efficacy (rated) (Nom)	171 lm/W
Luminous Flux	20,600 lumen
Color rendering index (CRI)	>70
