| Connection | Connection unit 5-pole
|
| Power Consumption | 405
W
|
| Cable | -
|
| Inrush current | 13
A
|
| Number of products on MCB of 16 A type B | 3
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220 to 240
V
|
| Inrush time | 1.32
ms
|
| Input Frequency | 50 to 60
Hz
|
| Power Factor (Fraction) | 0.99
|

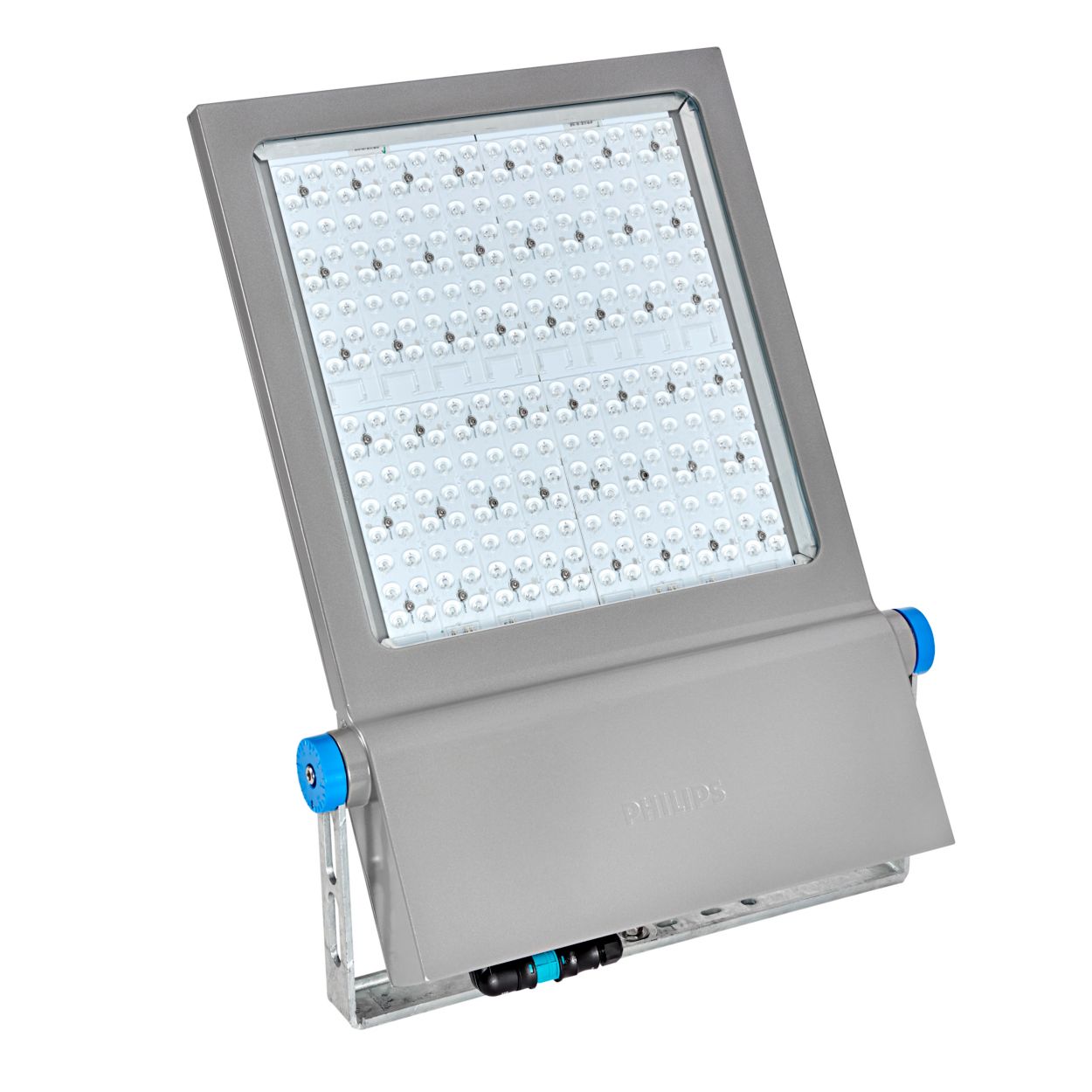

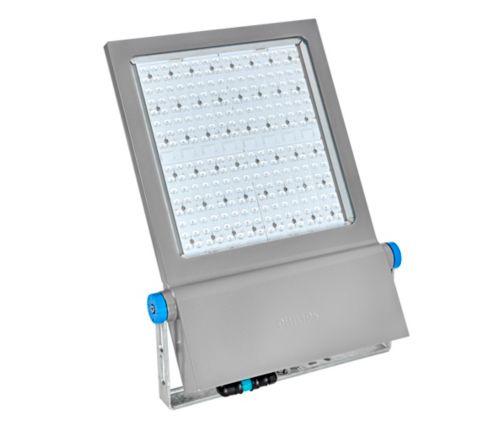

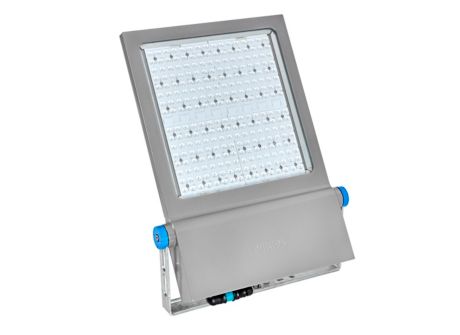

| Full product name | BVP651 LED650-4S/740 DX10 ALU PSU
|
| Numerator - Quantity Per Pack | 1
|
| Order code | 10807600
|
| Full product code | 871869910807600
|
| Material number (12NC) | 912300023763
|
| EAN/UPC - Case | 8718699108076
|
| Order product name | BVP651 LED650-4S/740 DX10 ALU PSU
|
| Numerator - Packs per outer box | 1
|
| Driver failure rate at 5000 h | 0.005
%
|
| Control gear failure rate at median useful life 100000 h | 0.1
%
|
| Lumen maintenance at median useful life* 100000 h | L96
|
| Flammability mark | For mounting on normally flammable surfaces
|
| CE mark | Yes
|
| Protection class IEC | Safety class I
|
| Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 4 kV differential mode and 4 kV common mode
|
| Sustainability rating | -
|
| Warranty period | 5 years
|
| EU RoHS compliant | Yes
|
| Mech. impact protection code | IK08
[5 J vandal-protected] |
| ENEC mark | ENEC mark
|
| Driver/power unit/transformer | Power supply unit (ON/OFF)
|
| Control interface | -
|
| Constant light output | No
|
| Dimmable | No
|
| Product family code | BVP651
[ClearFlood large] |
|
| Number of gear units | 2 units
|
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
|
* At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Lamp family code | LED650
[LED module 65000 lm] |
|
| Service tag | Yes
|
|
| Light source engine type | LED
|
|
| Driver included | Yes
|
|
| Light source replaceable | Yes
|
|
| Value ladder | Specification
|
|
| Lighting Technology | LED
|
| Fixation material | Steel
|
| Optic material | Acrylate
|
| Effective projected area | 0.41
m²
|
| Reflector material | -
|
| Overall length | 817
mm
|
| Mounting device | Mounting bracket adjustable
|
| Optical cover/lens material | Glass
|
| Housing Material | Aluminum die cast
|
| Optical cover/lens shape | Flat
|
| Housing Color | Aluminum
|
| Optical cover/lens finish | Clear
|
| Dimensions (Height x Width x Depth) | 80 x 597 x 817 mm
|
| Overall width | 597
mm
|
| Overall height | 80
mm
|
| Performance ambient temperature Tq | 25 °C
|
| Initial chromaticity | (0.380, 0.390) SDCM <5
|
| Luminous flux tolerance | +/-7%
|
| Init. Color Rendering Index Tolerance | +/-2
|
| Power consumption tolerance | +/-10%
|
| Ambient temperature range | -40 to +50 °C
|
| Optical cover/lens type | Flat glass
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Light source color | 740 neutral white
|
| Luminous Efficacy (rated) (Nom) | 130
lm/W
|
| Standard tilt angle posttop | 0°
|
| Luminaire light beam spread | 20° - 4° x 150°
|
| Optic type outdoor | Distribution extra wide 10
|
| Color rendering index (CRI) | 70
|
| Luminous Flux | 52,800
lumen
|
| Upward light output ratio | 0
|
| Standard tilt angle side entry | 0°
|
