    • Essential LEDtube - Affordable LED solution

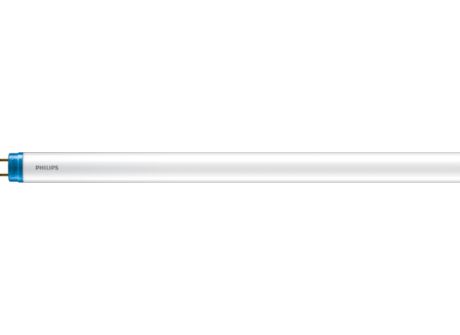

      CorePro LEDtube HO 1200mm 18W865T8 AP
      LED
      CorePro LEDtube HO 1200mm 18W865T8 AP
      Essential LEDtube

      CorePro LEDtube HO 1200mm 18W865T8 AP

    Specifications Show all

    Operating and Electrical
    Power Consumption
    18 W
    Input Frequency
    50 to 60 Hz
    Voltage (Nom)
    220-240 V
    Starting Time (Nom)
    0.5 s
    Warm-up time to 60% light
    0.5 s
    Line Frequency
    50 to 60 Hz
    Power Factor (Fraction)
    0.9
    Approval and Application
    Energy Saving Product
    Yes
    Energy Consumption kWh/1000 h
    18 kWh
    EU RoHS compliant
    Yes
    Approval Marks
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Product Data
    Order product name
    CorePro LEDtube HO 1200mm 18W865T8 AP
    Order code
    73404900
    Full product code
    871869673404900
    Material number (12NC)
    929001383508
    Full product name
    CorePro LEDtube HO 1200mm 18W865T8 AP
    Numerator - Packs per outer box
    10
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8718696734056
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    Tube, double-ended
    Product Length
    1,200 mm
    General Information
    Switching Cycle
    200,000
    Cap-Base
    G13  [Medium Bi-Pin Fluorescent]
    Lighting Technology
    LED
    Nominal lifetime
    30,000 hour(s)
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    65 °C
    Light Technical
    Color Designation
    Cool Daylight
    Correlated Color Temperature (Nom)
    6500 K
    Color Code
    865  [CCT of 6500K]
    Luminous Efficacy (rated) (Nom)
    116.00 lm/W
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Beam Angle (Nom)
    240 degree(s)
    Color Consistency
    <6
    Luminous Flux
    2,100 lumen
    Color rendering index (CRI)
    80

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G13
    G13
    G13
    G13
    Performance Diagrams
    Lumen Maintenance Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Lumen Maintenance Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Lumen Maintenance Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Lumen Maintenance Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Life Expectancy Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - CorePro LEDtube HO 1200mm 18W865T8 AP
    Spectral Power Distribution Colour - CorePro LEDtube HO 1200mm 18W865T8 AP
    Light Distribution Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Light Distribution Diagram - CorePro LEDtube HO 1200mm 18W865T8 AP
    Downloads
    Product Data Sheet
    Green Data
    Visuals
    Software Plugins
    • IES IES File - CorePro LEDtube HO 1200mm 18W865T8 AP IES 1.9 kB
