    • The new generation of energy-saving LED PLC 4P tube lighting

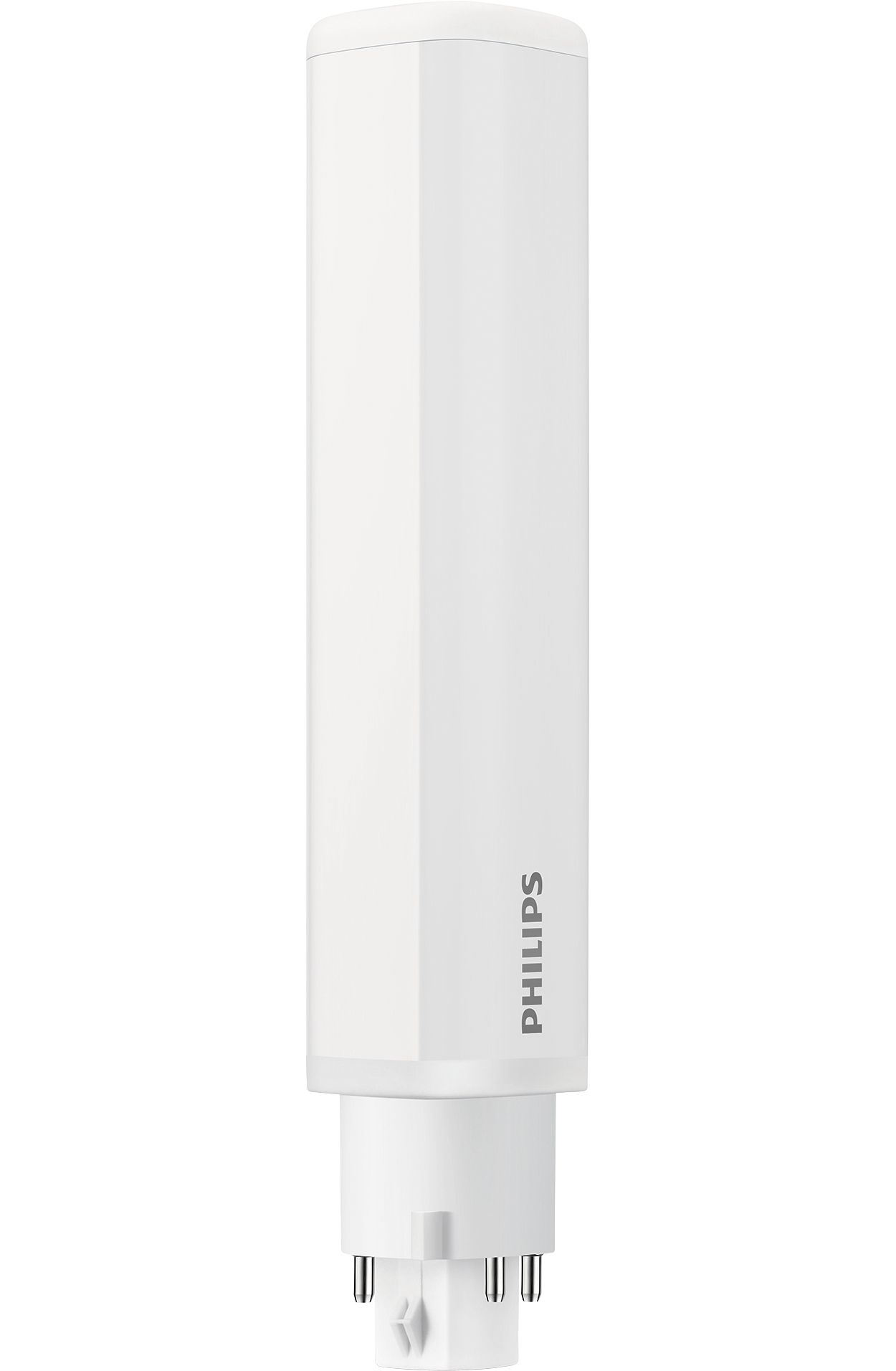

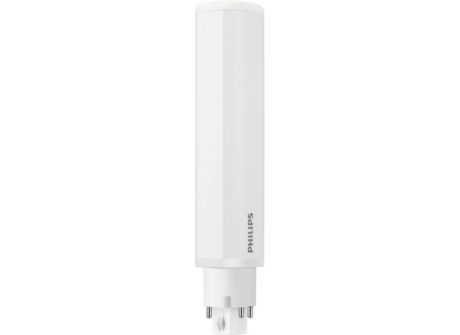

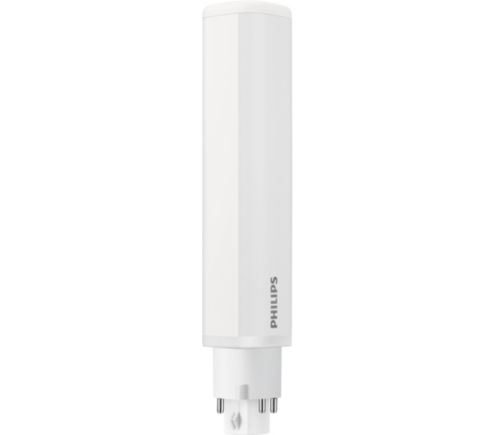

      CorePro LED PLC 9W 830 4P G24q-3
      LED
      CorePro LED PLC 9W 830 4P G24q-3
      CorePro LED PLC 4P

      CorePro LED PLC 9W 830 4P G24q-3

    Specifications Show all

    Operating and Electrical
    Power Consumption
    9 W
    Voltage (Nom)
    20-50 V
    Warm-up time to 60% light
    0.5 s
    Starting Time (Nom)
    0.5 s
    Line Frequency
    30000-80000 Hz
    Input Frequency
    30000-80000 Hz
    Power Factor (Fraction)
    0.9
    Product Data
    Order product name
    CorePro LED PLC 9W 830 4P G24q-3
    Order code
    54115900
    Full product code
    871869654115900
    Full product name
    CorePro LED PLC 9W 830 4P G24q-3
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material number (12NC)
    929001200802
    EAN/UPC - Case
    8718696541166
    Approval and Application
    Energy Efficiency Class
    F
    EPREL Registration Number
    403550
    CE mark
    Yes
    Energy Saving Product
    Yes
    Energy Consumption kWh/1000 h
    9 kWh
    EU RoHS compliant
    Yes
    Approval Marks
    TUV
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Controls and Dimming
    Dimmable
    No
    General Information
    Switching Cycle
    50,000
    Flux measurement reference
    Sphere
    Cap-Base
    G24Q-3  [G24q-3]
    Lighting Technology
    LED
    Nominal lifetime
    30,000 hour(s)
    Mechanical and Housing
    Bulb Material
    Plastic
    Product Length
    200 mm
    Bulb Shape
    Tube, single-ended
    Temperature
    Ambient temperature range
    -20 °C to 35 °C
    T-Case Maximum (Nom)
    76 °C
    Light Technical
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Color Code
    830  [CCT of 3000K]
    Luminous Efficacy (rated) (Nom)
    100.00 lm/W
    Beam Angle (Nom)
    120 degree(s)
    Luminous Flux
    950 lumen
    Color Consistency
    <6
    Color rendering index (CRI)
    83
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G24q-3
    G24q-3
    G24q-3
    G24q-3
    Performance Diagrams
    Lumen Maintenance Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Lumen Maintenance Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Lumen Maintenance Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Lumen Maintenance Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Life Expectancy Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Photometrics
    General uniform lighting - CorePro LED PLC 9W 830 4P G24q-3
    General uniform lighting - CorePro LED PLC 9W 830 4P G24q-3
    Spectral Power Distribution Colour - CorePro LED PLC 9W 830 4P G24q-3
    Spectral Power Distribution Colour - CorePro LED PLC 9W 830 4P G24q-3
    Light Distribution Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Light Distribution Diagram - CorePro LED PLC 9W 830 4P G24q-3
    Downloads
    Product Data Sheet
    Green Data
    Visuals
    Brochures
    Software Plugins
    • IES IES File - CorePro LED PLC 9W 830 4P G24q-3 IES 4.6 kB
