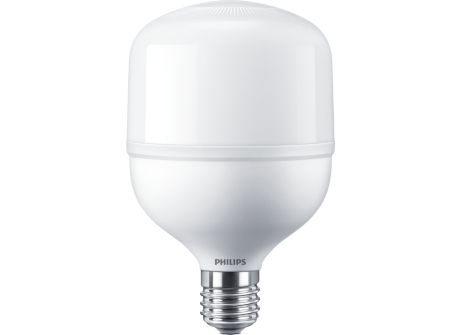

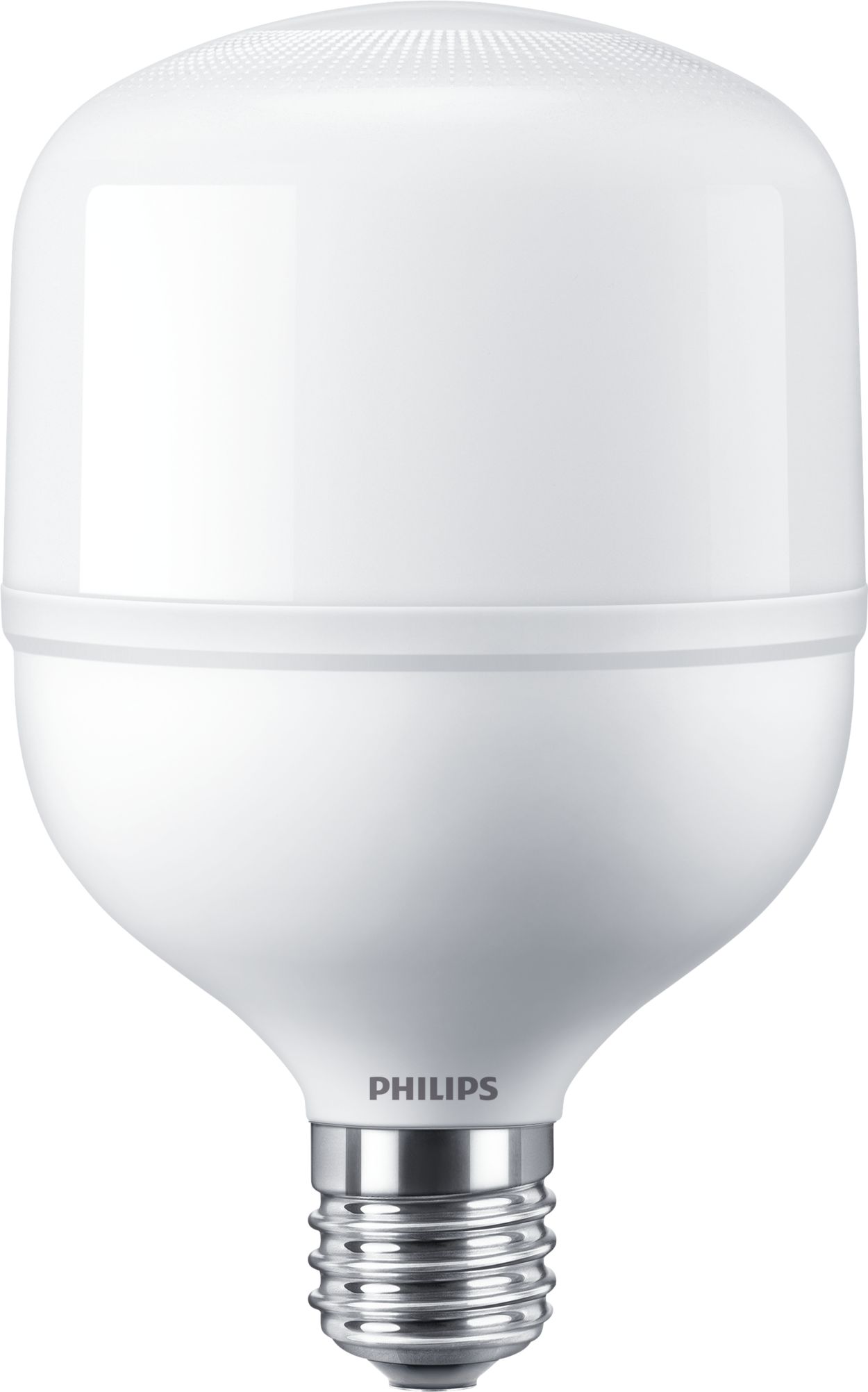

TrueForce Core HB MV ND 55W E40 865 G3

Specifications Show all

Operating and Electrical

Power Consumption	55 W
Input Frequency	50 to 60 Hz
Voltage (Nom)	100-277 V
Wattage Equivalent	125 W
Warm-up time to 60% light	0.5 s
Starting Time (Nom)	0.5 s
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9

Product Data

Order product name	TForce Core HB MV ND 55W E40 865 G3
Order code	78091300
Full product code	871869978091300
Material number (12NC)	929002409608
Full product name	TrueForce Core HB MV ND 55W E40 865 G3
Numerator - Packs per outer box	6
Numerator - Quantity Per Pack	1
EAN/UPC - Case	8718699780920

Approval and Application

Energy Efficiency Class	E
EPREL Registration Number	804330
Energy Consumption kWh/1000 h	55 kWh
EU RoHS compliant	Yes

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	T-shape

General Information

Switching Cycle	50,000
Flux measurement reference	Sphere
Cap-Base	E40  [E40]
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	80 °C

Light Technical

Color Designation	Cool Daylight
Correlated Color Temperature (Nom)	6500 K
Color Code	865  [CCT of 6500K]
Luminous Efficacy (rated) (Nom)	127.00 lm/W
Beam Angle (Nom)	180 degree(s)
Luminous Flux	7,000 lumen
Color Consistency	<6
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color rendering index (CRI)	80
