    • A simple, low cost LED replacement for HID high-bay lamps with TrueForce LED for Industrial and Retail applications

      TrueForce LED HPI UN 95W E40 840 NB
      LED

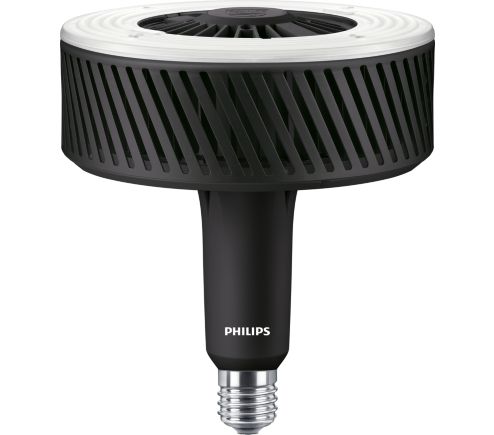

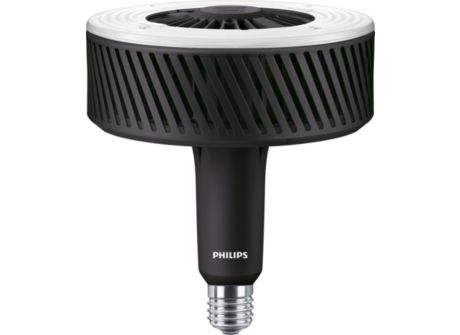

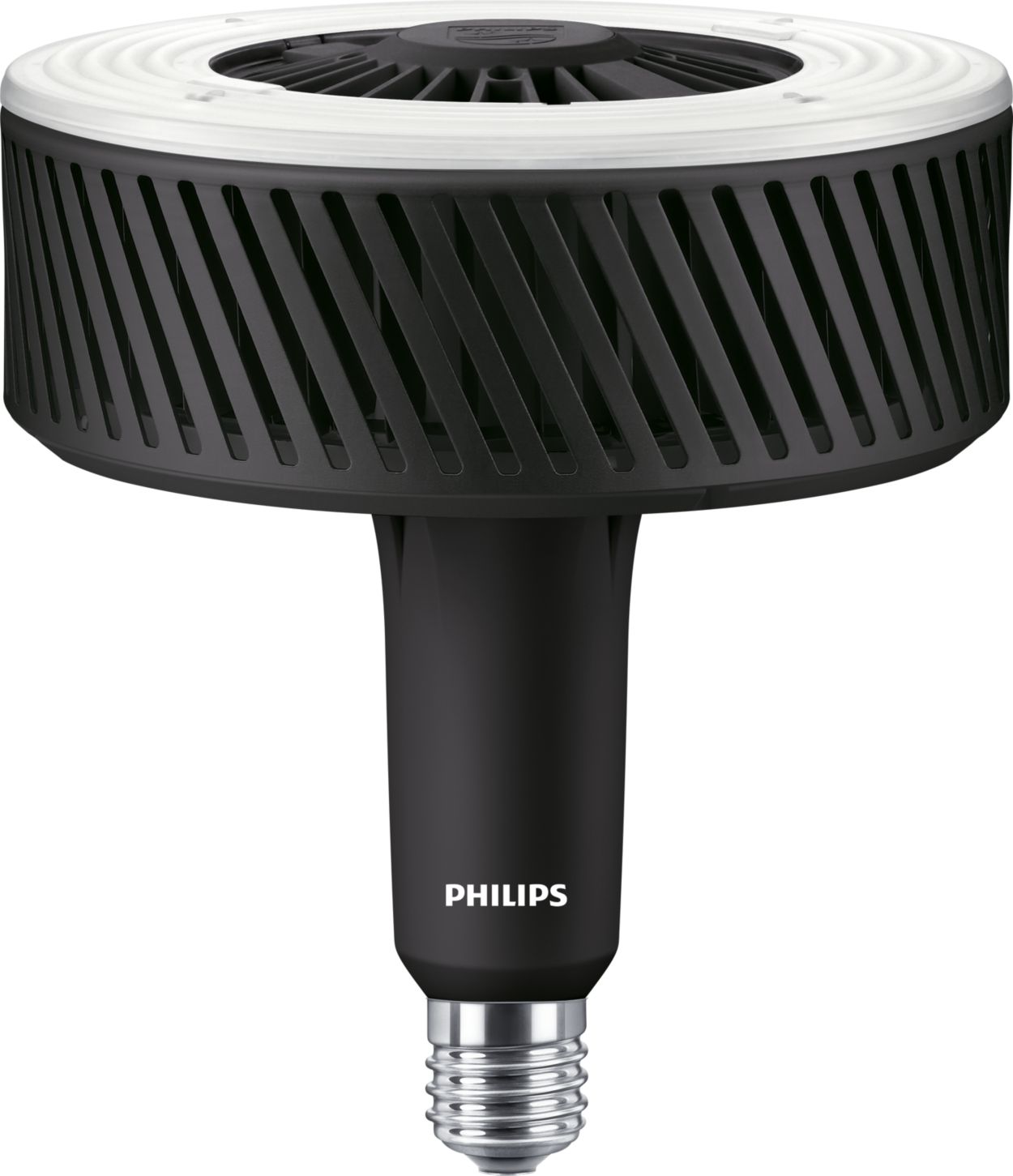

      TrueForce LED HPI UN 95W E40 840 NB
      MASTER - LED HID HPI

      TrueForce LED HPI UN 95W E40 840 NB

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    500 mA
    Power Consumption
    95 W
    Voltage (Nom)
    220-240 V
    Wattage Equivalent
    250 W
    Warm-up time to 60% light
    1 s
    Starting Time (Nom)
    0.5 s
    Line Frequency
    50 Hz
    Input Frequency
    50 Hz
    Power Factor (Fraction)
    0.9
    Product Data
    Order product name
    TForce LED HPI UN 95W E40 840 NB
    Order code
    75367200
    Full product code
    871869975367200
    Material number (12NC)
    929002350702
    Full product name
    TrueForce LED HPI UN 95W E40 840 NB
    Numerator - Packs per outer box
    3
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8718699753689
    Approval and Application
    Energy Efficiency Class
    F
    EPREL Registration Number
    403624
    CE mark
    Yes
    Energy Consumption kWh/1000 h
    95 kWh
    EU RoHS compliant
    Yes
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    Others
    General Information
    Switching Cycle
    50,000
    Flux measurement reference
    Narrow Cone
    Cap-Base
    E40  [E40]
    Lighting Technology
    LED
    Nominal lifetime
    50,000 hour(s)
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    55 °C
    Light Technical
    Color Designation
    Cool White (CW)
    Correlated Color Temperature (Nom)
    4000 K
    Color Code
    840  [CCT of 4000K]
    Luminous Efficacy (rated) (Nom)
    136 lm/W
    Beam Angle (Nom)
    60 degree(s)
    Color Consistency
    <6
    Luminous Flux
    13,000 lumen
    Color rendering index (CRI)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     E40 Others
    E40 Others
    E40
    E40
    Performance Diagrams
    Lumen Maintenance Diagram - TForce LED HPI UN 95W E40 840 NB
    Lumen Maintenance Diagram - TForce LED HPI UN 95W E40 840 NB
    Life Expectancy Diagram - TForce LED HPI UN 95W E40 840 NB
    Life Expectancy Diagram - TForce LED HPI UN 95W E40 840 NB
    Photometrics
    General uniform lighting - TForce LED HPI UN 95W E40 840 NB
    General uniform lighting - TForce LED HPI UN 95W E40 840 NB
    Spectral Power Distribution Colour - TForce LED HPI UN 95W E40 840 NB
    Spectral Power Distribution Colour - TForce LED HPI UN 95W E40 840 NB
    Light Distribution Diagram - TForce LED HPI UN 95W E40 840 NB
    Light Distribution Diagram - TForce LED HPI UN 95W E40 840 NB
    Downloads
    Product Data Sheet
    Green Data
    Visuals
    Brochures
    Software Plugins
    • IES IES File - TForce LED HPI UN 95W E40 840 NB IES 3.5 kB
