    • Mains-voltage linear R7S with very high light output

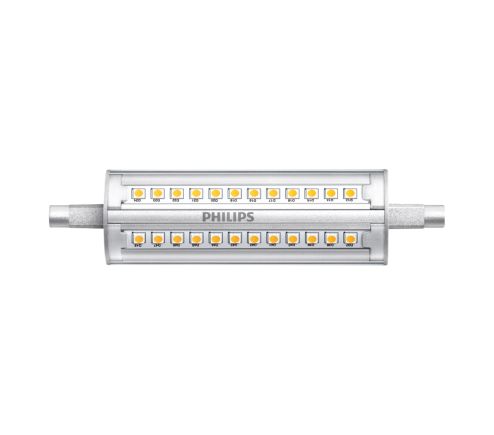

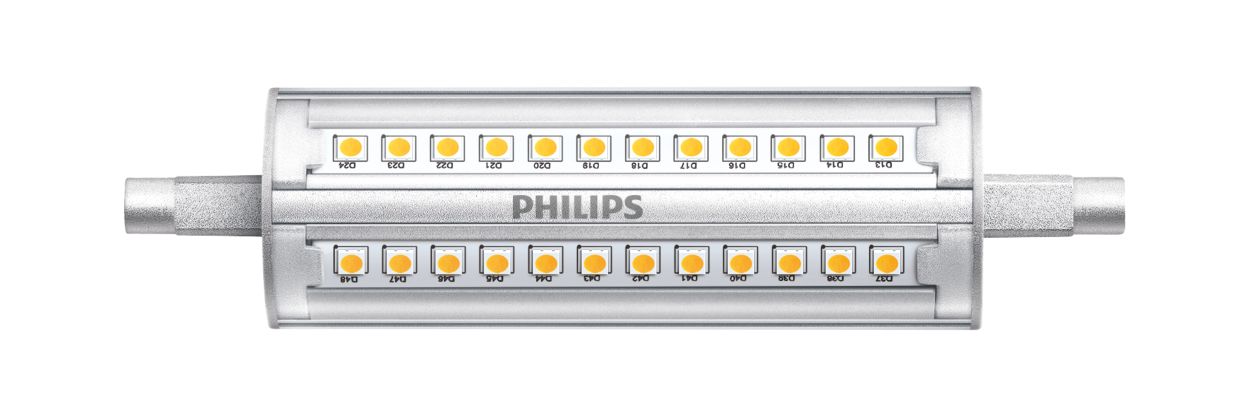

      CorePro LED linear R7S 118mm 14-100W 840 D
      LED
      CorePro LED linear R7S 118mm 14-100W 840 D
      CorePro LEDlinear MV

      CorePro LED linear R7S 118mm 14-100W 840 D

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    74 mA
    Power Consumption
    14 W
    Voltage (Nom)
    220-240 V
    Wattage Equivalent
    100 W
    Warm-up time to 60% light
    0.5 s
    Starting Time (Nom)
    0.5 s
    Line Frequency
    50 to 60 Hz
    Input Frequency
    50 to 60 Hz
    Power Factor (Fraction)
    0.8
    Product Data
    Order product name
    CorePro R7S 118mm 14-100W 840 D
    Order code
    57881000
    Full product code
    871869657881000
    Material number (12NC)
    929001243802
    Full product name
    CorePro LED linear R7S 118mm 14-100W 840 D
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    EAN/UPC - Case
    8718696578827
    Approval and Application
    EPREL Registration Number
    465217
    Energy Efficiency Class
    E
    CE mark
    Yes
    Energy Saving Product
    Yes
    Energy Consumption kWh/1000 h
    14 kWh
    EU RoHS compliant
    Yes
    Suitable For Accent Lighting
    No
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    Mechanical and Housing
    Bulb Shape
    Linear
    General Information
    Switching Cycle
    50,000
    Flux measurement reference
    Sphere
    Cap-Base
    R7S  [R7s]
    Lighting Technology
    LED
    Nominal lifetime
    15,000 hour(s)
    Temperature
    T-Case Maximum (Nom)
    90 °C
    Light Technical
    Color Designation
    Cool White (CW)
    Correlated Color Temperature (Nom)
    4000 K
    Color Code
    840  [CCT of 4000K]
    Luminous Efficacy (rated) (Nom)
    128.57 lm/W
    Luminous Flux
    1,800 lumen
    Color Consistency
    <6
    Color rendering index (CRI)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     R7s Linear
    R7s Linear
    R7s
    R7s
    Photometrics
    General uniform lighting - CorePro R7S 118mm 14-100W 840 D
    General uniform lighting - CorePro R7S 118mm 14-100W 840 D
    Spectral Power Distribution Colour - CorePro R7S 118mm 14-100W 840 D
    Spectral Power Distribution Colour - CorePro R7S 118mm 14-100W 840 D
    Light Distribution Diagram - CorePro R7S 118mm 14-100W 840 D
    Light Distribution Diagram - CorePro R7S 118mm 14-100W 840 D
    Downloads
    Product Data Sheet
    Green Data
    Visuals
    Software Plugins
    • IES IES File - CorePro R7S 118mm 14-100W 840 D IES 4.6 kB
