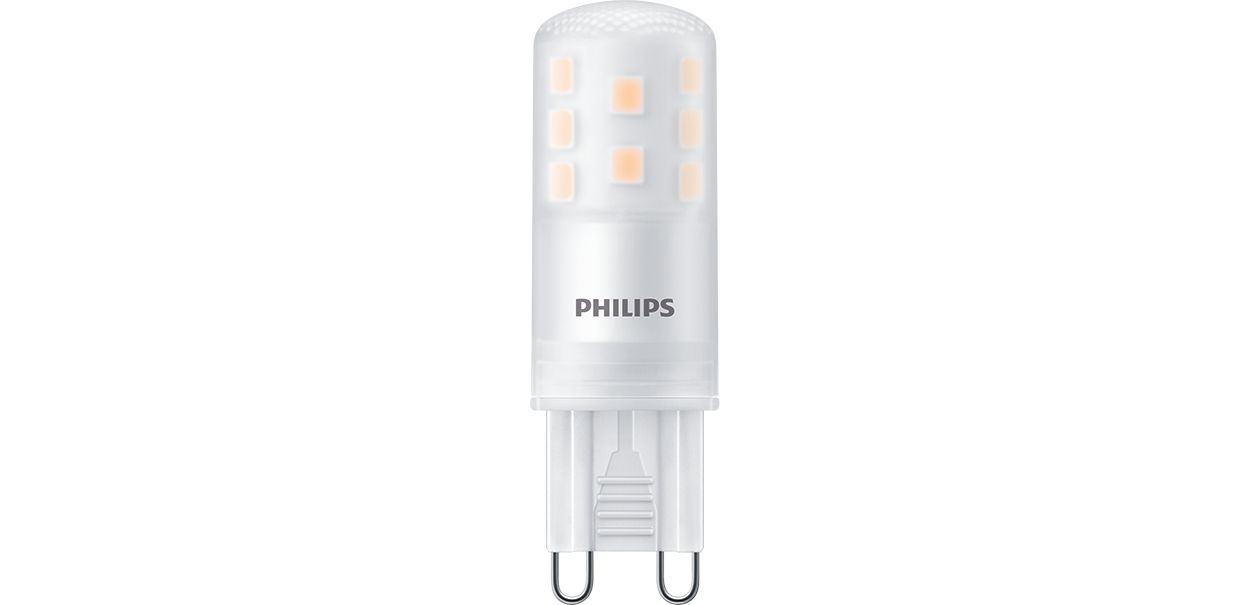

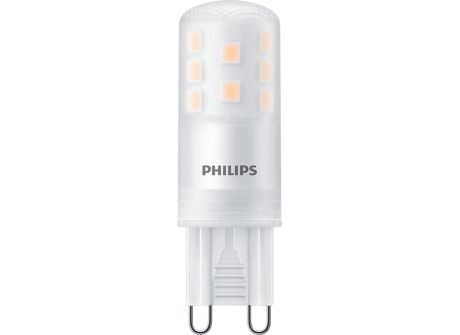

CorePro LEDcapsuleMV 2.6-25W G9 827 D

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	14.5 mA
Power Consumption	2.6 W
Voltage (Nom)	220-240 V
Wattage Equivalent	25 W
Starting Time (Nom)	0.5 s
Warm-up time to 60% light	0.5 s
Line Frequency	50 to 60 Hz
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.7

Product Data

Order product name	CorePro LEDcapsuleMV 2.6-25W G9 827 D
Order code	76669600
Full product code	871869976669600
Full product name	CorePro LEDcapsuleMV 2.6-25W G9 827 D
Numerator - Packs per outer box	12
Numerator - Quantity Per Pack	1
Material number (12NC)	929002389902
EAN/UPC - Case	8718699766702

Approval and Application

Energy Efficiency Class	E
EPREL Registration Number	374868
CE mark	Yes
Energy Consumption kWh/1000 h	3 kWh
EU RoHS compliant	Yes
Suitable For Accent Lighting	No

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Finish	Frosted
Bulb Shape	Capsule

General Information

Switching Cycle	50,000
Flux measurement reference	Sphere
Cap-Base	G9  [G9]
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Temperature

T-Case Maximum (Nom)

86 °C

Light Technical

Color Designation	Warm White (WW)
Correlated Color Temperature (Nom)	2700 K
Color Code	827  [CCT of 2700K]
Luminous Efficacy (rated) (Nom)	115.00 lm/W
Luminous Flux	300 lumen
Color Consistency	<6
Color rendering index (CRI)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %
