| Lamp Current (Nom) | 400
mA
|
| Power Consumption | 4.2
W
|
| Voltage (Nom) | ac electronic 12
V
|
| Wattage Equivalent | 40
W
|
| Warm-up time to 60% light | 0.5
s
|
| Starting Time (Nom) | 0.5
s
|
| Line Frequency | -
Hz
|
| Input Frequency | -
Hz
|
| Power Factor (Fraction) | 0.9
|

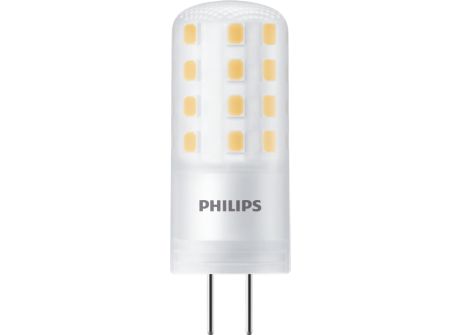

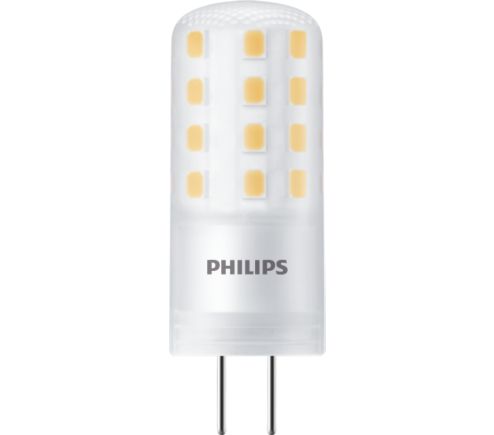

| Order product name | CorePro LEDcapsuleLV 4.2-40W GY6.35 827D
|
| Order code | 17102200
|
| Full product code | 872016917102200
|
| Full product name | CorePro LEDcapsuleLV 4.2-40W GY6.35 827D
|
| Numerator - Packs per outer box | 12
|
| Numerator - Quantity Per Pack | 1
|
| Material number (12NC) | 929003609002
|
| EAN/UPC - Case | 8720169171039
|
| EPREL Registration Number | 1403030
|
| Energy Efficiency Class | F
|
| CE mark | Yes
|
| Energy Consumption kWh/1000 h | 5
kWh
|
| EU RoHS compliant | Yes
|
| Suitable For Accent Lighting | No
|
| Dimmable | Only with specific dimmers
|
| Switching Cycle | 50,000
|
| Flux measurement reference | Sphere
|
| Cap-Base | GY6.35
[GY6.35] |
| Lighting Technology | LED
|
| Nominal lifetime | 15,000
hour(s)
|
| Bulb Material | Plastic
|
| Bulb Finish | Frosted
|
| Bulb Shape | Capsule
|
| Ambient temperature range | -20 °C to 45 °C
|
| T-Case Maximum (Nom) | 90
°C
|
| Color Designation | Warm White (WW)
|
| Correlated Color Temperature (Nom) | 2700
K
|
| Color Code | 827
[CCT of 2700K] |
| Luminous Efficacy (rated) (Nom) | 111
lm/W
|
| Color Consistency | <6
|
| Luminous Flux | 470
lumen
|
| Color rendering index (CRI) | 80
|
| LLMF At End Of Nominal Lifetime (Nom) | 70
%
|
