    • Reliable, high performance technology for extreme LED applications

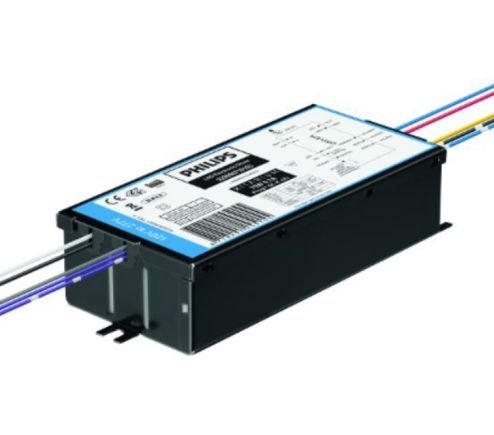

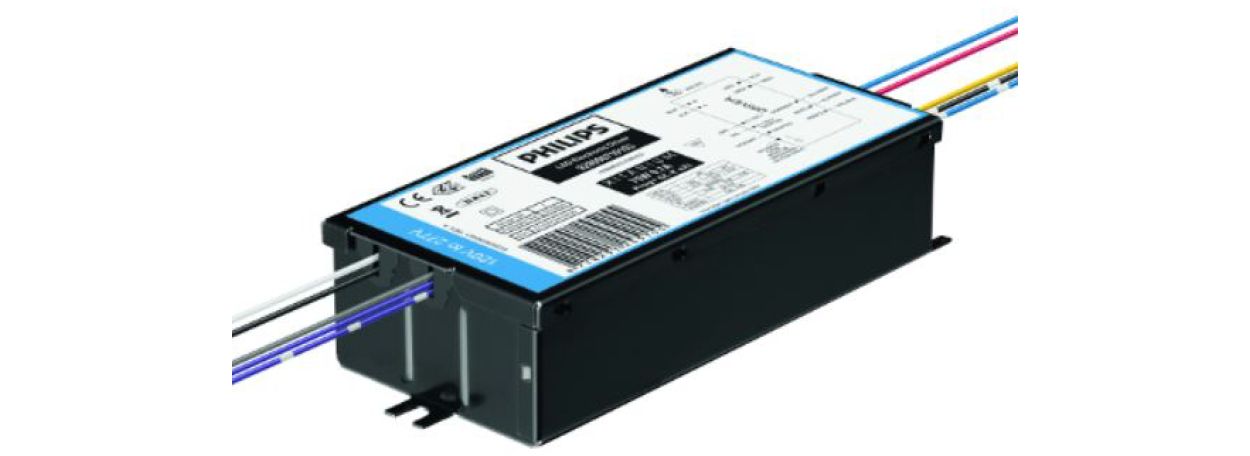

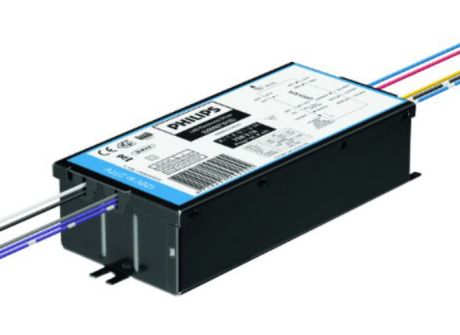

      XITANIUM 100W 0.7A PROG+ GL-Z sXt
      LED
      XITANIUM 100W 0.7A PROG+ GL-Z sXt
      Xitanium LED drivers - programmable

      XITANIUM 100W 0.7A PROG+ GL-Z sXt

    Specifications Show all

    Operating and Electrical
    Earth Leakage Current (Max)
    0.35 mA
    Diagnostics
    True
    Output Current (Min)
    47 mA
    Inrush Current Width to 50% of Peak
    150 µs
    Total Harmonic Distortion IEC (Max)
    20 %
    Open Circuit Voltage (DC) (Max)
    200 V
    Power Consumption
    115 W
    Output Power (Min)
    3.4 W
    Output Current (Max)
    700 mA
    Inrush Current Peak (Max)
    80 A
    Power Factor 50% Load (Min)
    0.94
    Output Power (Nom)
    35-100 W
    Input Current (Max)
    480 mA
    Line Frequency
    50 to 60 Hz
    Output Voltage (Min)
    71 V
    Maximum Efficiency at Full Load
    91.5 %
    Input Frequency
    50 to 60 Hz
    Output Voltage (Max)
    143 V
    Output Current Ripple (Max)
    4 %
    Output Current (Nom)
    100-700 mA
    Output Current Tolerance (Min)
    -5 %
    Output Power (Max)
    100 W
    Output Current Tolerance (Max)
    5 %
    Number of Products on MCB (16A Type B) (Max)
    9
    Product Data
    Order product name
    XITANIUM 100W 0.7A PROG+ GL-Z sXt
    Order code
    24519300
    Full product code
    871829124519300
    Full product name
    XITANIUM 100W 0.7A PROG+ GL-Z sXt
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material number (12NC)
    929000708703
    EAN/UPC - Case
    8718291245209
    Approval and Application
    Protection class IEC
    Safety class I/II
    Isolation Classification
    Class I and Class II
    Ingress protection code
    IP20  [Finger-protected]
    Surge Protection (Common/Differential)
    4/4 kV
    Output Current Set Options
    DALI
    Approval Marks
    CCC certificate
    CE marking
    CB Certificate
    ENEC certificate
    UL certificate
    Controls and Dimming
    D4i compliant
    No
    DynaDimmer
    Yes
    Control Interface
    1-10V/AmpDim/DALI/Dynadimmer
    Constant light output
    Yes
    Dimmable
    Yes
    Dimming Range
    100-10 %
    General Information
    Lighting Technology
    LED
    Nominal lifetime
    100,000 hour(s)
    Mechanical and Housing
    Overall length
    165 mm
    Housing Color
    Black
    Housing
    Z-can 165x70x50
    Overall width
    70 mm
    Product Length
    165 mm
    Dimensions (Height x Width x Depth)
    38 x 70 x 165 mm
    Overall height
    38 mm
    Wiring
    Output Wire Length
    275 mm mm
    Input Wire Cross Section (Nom)
    0.82 mm²
    Temperature
    T-Case Switch Off (Nom)
    85 °C
    Ambient temperature range
    -40 °C to 55 °C
    T-Case Lifetime (Nom)
    66 °C
    T-Case Maximum (Max)
    80 °C
    T-Case Lifetime (Max)
    70 °C
    Module Temperature Protection
    Programmable
    System characteristics
    YellowDot ready
    No
    Central DC Operation
    No
    Installation Diagrams
    Xitanium 75W 0.70A, 100W 0.53A Programmable
    Xitanium 75W 0.70A, 100W 0.53A Programmable
    Xitanium 75W 0.70A Prog+ sXt
    Xitanium 75W 0.70A Prog+ sXt
