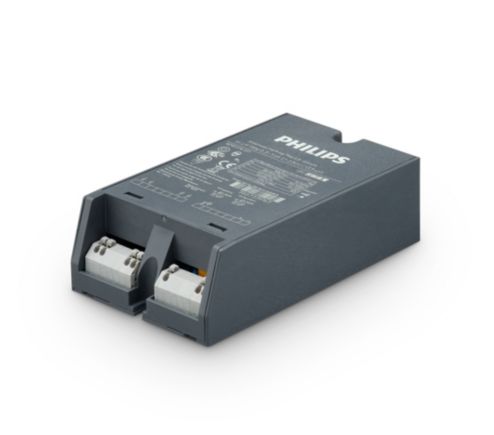

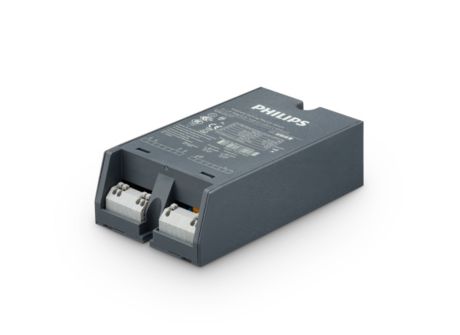

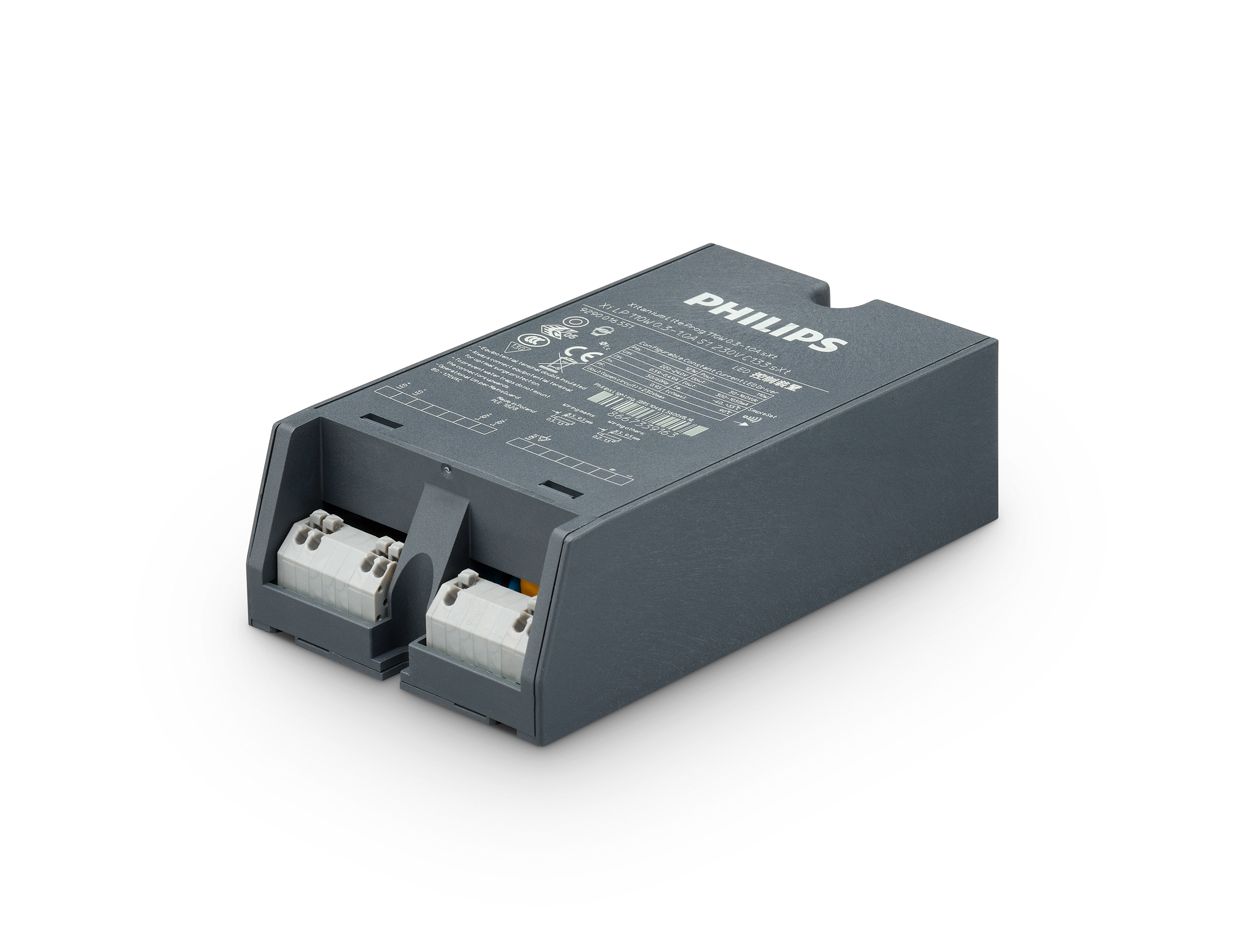

Xi LP 110W 0.2-0.7A S1 230V C133 sXt

Specifications Show all

Operating and Electrical

Diagnostics	True
Output Current (Min)	200 mA
Inrush Current Width to 50% of Peak	270 µs
Output Power (Max)	110 W
Open Circuit Voltage (DC) (Max)	300 V
Output Power (Min)	4.9 W
Maximum Efficiency at Full Load	91.5 %
Output Current (Max)	700 mA
Inrush Current Peak (Max)	45 A
Output Voltage (Min)	70 V
Output Current Ripple (Max)	4 %
Output Voltage (Max)	220 V

Product Data

Order product name	Xi LP 110W 0.2-0.7A S1 230V C133 sXt
Order code	61034000
Full product code	871869961034000
Material number (12NC)	929001655006
Full product name	Xi LP 110W 0.2-0.7A S1 230V C133 sXt
Numerator - Packs per outer box	12
Numerator - Quantity Per Pack	1
EAN/UPC - Case	8718699610357

Approval and Application

Protection class IEC	Safety class I/II
Isolation Classification	Class I and Class II
Ingress protection code	IP20  [Finger-protected]
Surge Protection (Common/Differential)	Luminaire surge protection level until 6 kV differential mode and 10 kV common mode
Approval Marks	CCC certificate	CE marking	CB Certificate	ENEC certificate
Output Current Set Options	SimpleSet

Controls and Dimming

D4i compliant	No
DynaDimmer	Yes
Constant light output	Yes
Dimmable	1-10V
Dimming Range	100-10 %

General Information

Lighting Technology	LED
Nominal lifetime	100,000 hour(s)

Mechanical and Housing

Overall length	133 mm
Dimensions (Height x Width x Depth)	40 x 77 x 133 mm
Overall height	39.5 mm
Housing	C133_LP_S1
Overall width	77 mm
Product Length	133 mm

Temperature

T-Case Maximum (Max)	90 °C
T-Case Lifetime (Max)	80 °C

System characteristics

Central DC Operation	No
YellowDot ready	No
