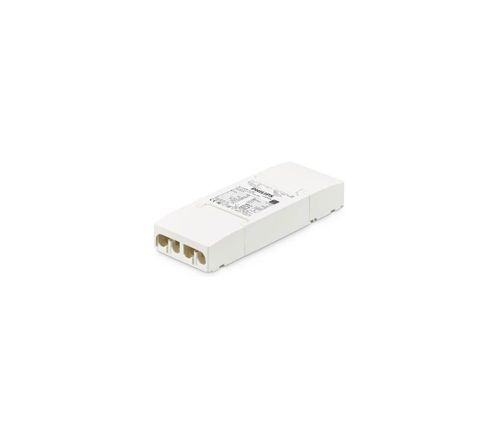

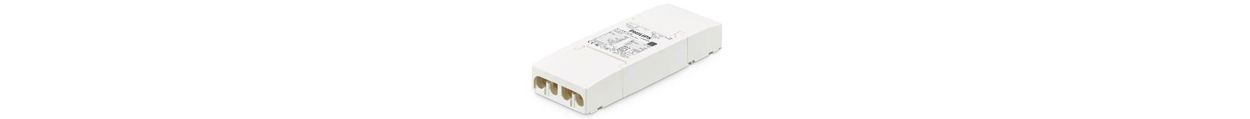

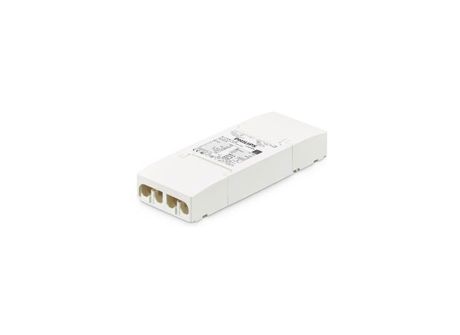

Xitanium 20W WH 0.15-0.5A 54V Is G2

Specifications Show all

Operating and Electrical

Output Current (Min)	150 mA
Output Power (Max)	20 W
Open Circuit Voltage (DC) (Max)	60 V
Output Power (Min)	6 W
Output Voltage (Min)	24 V
Output Current (Max)	540 mA
Output Voltage (Max)	54 V
Output Current Ripple (Max)	4 %

Product Data

Order product name	Xitanium 20W WH 0.15-0.5A 54V Is G2
Order code	61040100
Full product code	871869961040100
Material number (12NC)	929001471006
Full product name	Xitanium 20W WH 0.15-0.5A 54V Is G2
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	20
EAN/UPC - Case	8718699610418

Approval and Application

Protection class IEC	Safety class I/II
Isolation Classification	Class I and Class II
Ingress protection code	IP20  [Finger-protected]
Approval Marks	CE marking	CB Certificate	ENEC certificate	CCC certificate	RCM compliance
Output Current Set Options	NFC, LEDSet

Controls and Dimming

Dimmable

No

General Information

Lighting Technology

LED

Mechanical and Housing

Overall length	200 mm
Overall height	32 mm
Dimensions (Height x Width x Depth)	32 x 75 x 200 mm
Housing	WH Independent
Overall width	75 mm
Product Length	200 mm

Temperature

T-Case Maximum (Max)	75 °C
T-Case Lifetime (Max)	75 °C

System characteristics

Central DC Operation	Yes
YellowDot ready	No
