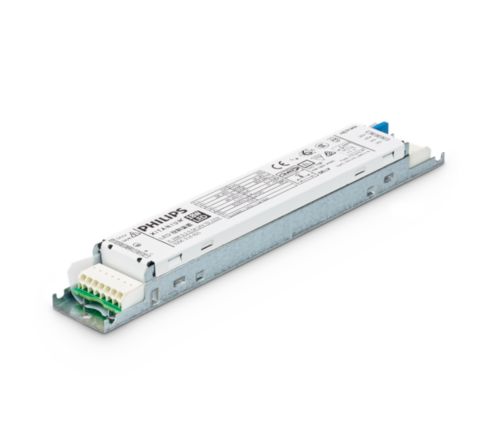

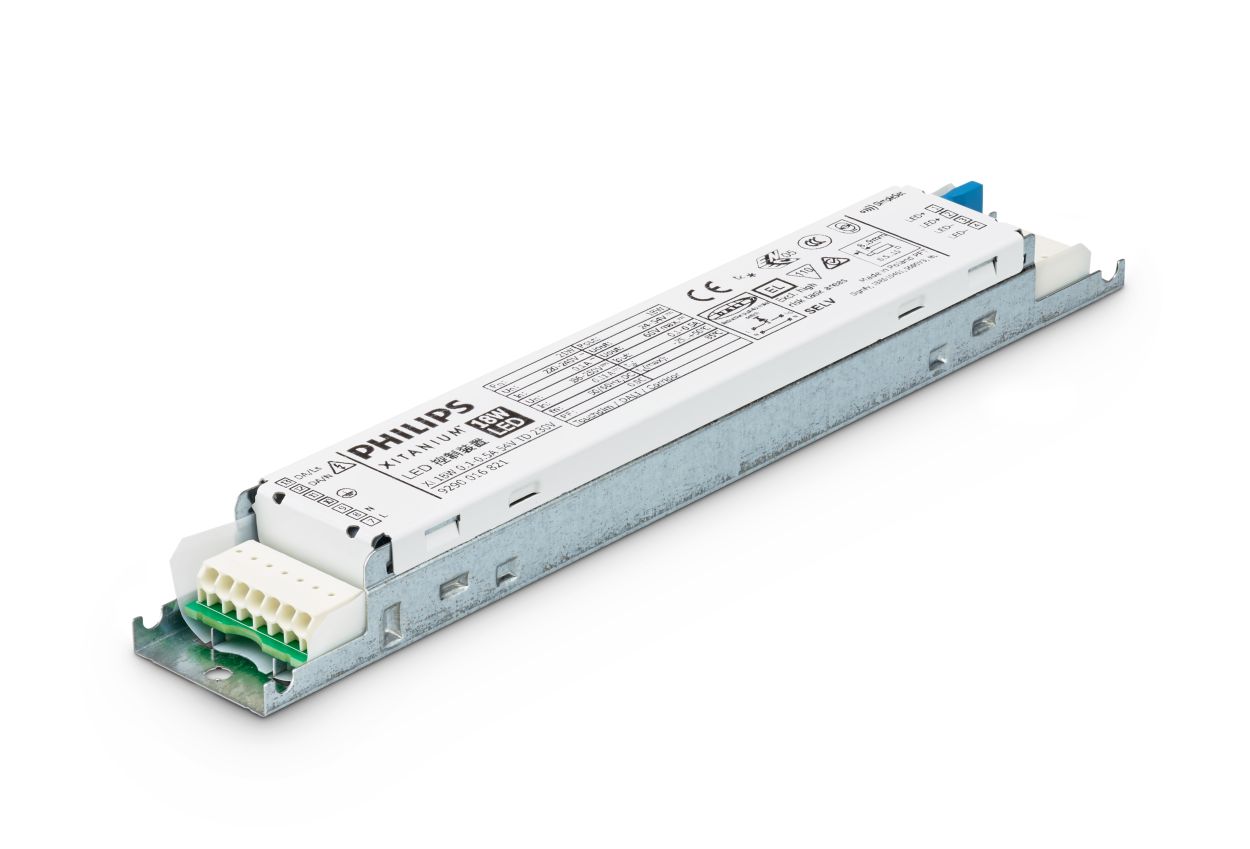

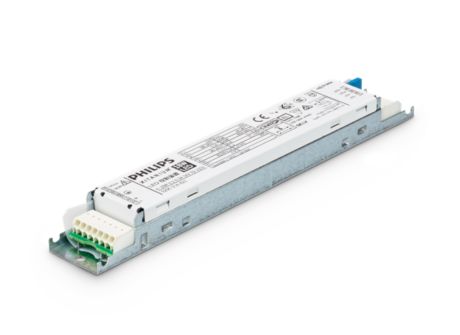

Xitanium 18W 0.1-0.5A 54V S 230V

Specifications Show all

Operating and Electrical

Constant Voltage (CV)	False
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Diagnostics	False
Output Current (Min)	100 mA
Total Harmonic Distortion IEC (Max)	20 %
Mains voltage performance (DC)	186-254 V
Open Circuit Voltage (DC) (Max)	60 V
Power Consumption	101 W
Output Power (Min)	6 W
Inrush Current Peak (Max)	20.4 A
Constant Current (CC)	True
Energy Metering	No
Input current (DC)	0.12
Default output current	100 mA
Maximum Efficiency at Full Load	89.3 %
Output Voltage (Min)	24 V
Output Current (Max)	500 mA
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Output Voltage (Max)	54 V
Output Current Ripple (Max)	4 %
Power Factor 100% Load (Max)	0.9
Line Frequency	50 to 60 Hz
Number of Products on MCB (16A Type-C) (Max)	24 piece/unit
Mains voltage operation (DC)	168-279 V
Input current (AC)	0.1 mA
Output Power (Max)	18 W
Inrush Current Width to 50% of Peak	195 µs
Output Current Tolerance (Max)	5 %
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9

Product Data

Order code	69838600
Full product name	Xitanium 18W 0.1-0.5A 54V S 230V
Numerator - Quantity Per Pack	1
Full product code	871869969838600
Material number (12NC)	929001487906
EAN/UPC - Case	8718699698393
Order product name	Xitanium 18W 0.1-0.5A 54V S 230V
Numerator - Packs per outer box	20

Approval and Application

Corridor Mode	True
Protection class IEC	Safety class I
Short Circuit Protection	Protected
Open Circuit Protection	Protected
Isolation Classification	No
Ingress protection code	IP20  [Finger-protected]
Over Power Protection	Protected
Approval Marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Output Current Set Options	SimpleSet

Controls and Dimming

D4i compliant	No
DynaDimmer	No
Constant light output	No
Dimmable	No

General Information

Nominal lifetime	100,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Overall length	210 mm
Housing	Office 210x30x21 7p4p NFC right
Overall width	30 mm
Dimensions (Height x Width x Depth)	21 x 30 x 210 mm
Product Length	210 mm
Overall height	21 mm

Wiring

Input Wire Gauge	16-20
Cable Length From Device to Lamp	2 m
Input Wire Cross Section (Max)	1.5 mm²
Connector Type Input Terminals	Wago 744
Input Wire Cross Section (Min)	0.5 mm²
Output Wire Cross Section (Max)	1.5 mm²
Input wire strip length	8 mm to 9 mm mm
Output wire strip length	8 mm to 9 mm mm
Output Wire Cross Section (Min)	0.5 mm²
Hot Wiring	no
Connector Type Output Terminals	Wago 744

Temperature

Ambient temperature range	-25 °C to 50 °C
T-Case Maximum (Max)	75 °C
T-Case Lifetime (Max)	65 °C
Maximum case temperature (in case of failure)	110 °C
Module Temperature Protection	no

System characteristics

Central DC Operation	Yes
YellowDot ready	No
