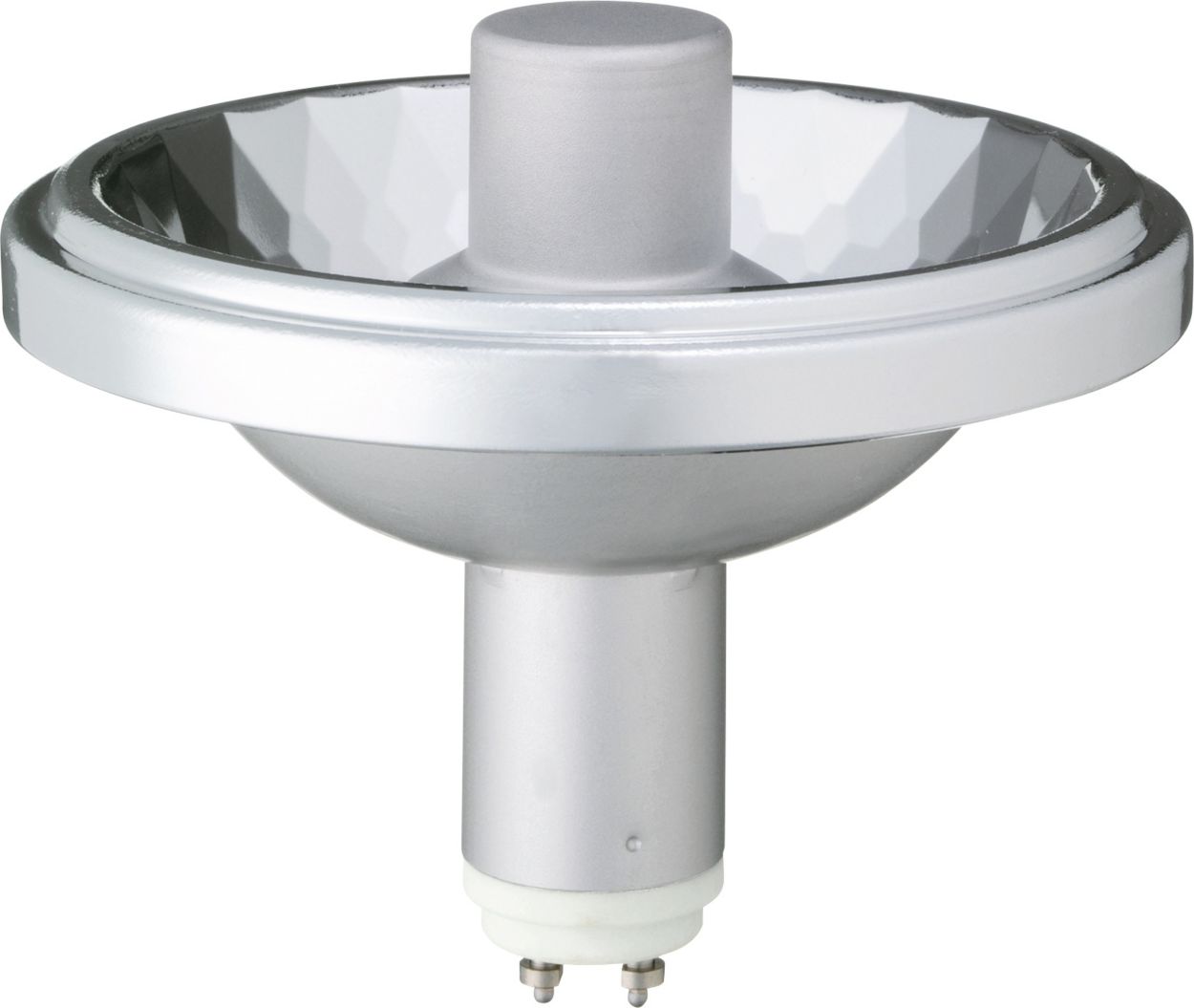

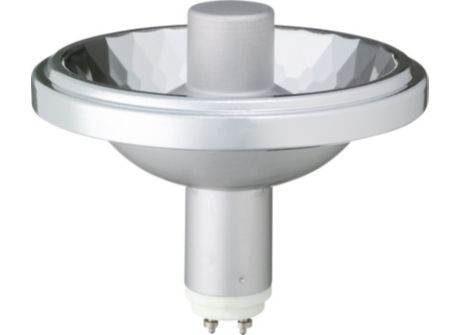

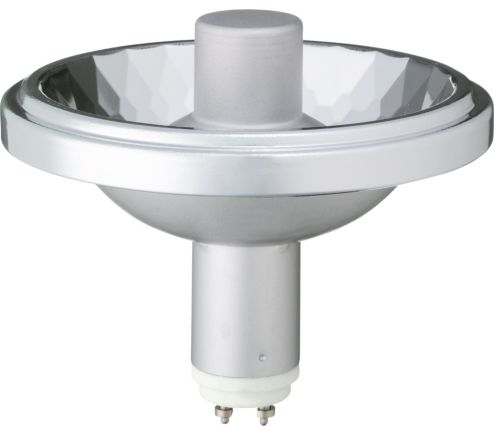

    MASTERColour CDM-R111 Elite CDM-R111 Elite 35W/930 GX8.5 24D

    • Perfect sparkle, trendy design

      MASTERColour CDM-R111 Elite CDM-R111 Elite 35W/930 GX8.5 24D
      MASTERColour CDM-R111 Elite CDM-R111 Elite 35W/930 GX8.5 24D
      MASTERColour CDM-R111 Elite

      MASTERColour CDM-R111 Elite CDM-R111 Elite 35W/930 GX8.5 24D

    Specifications Show all

    Operating and Electrical
    Voltage (Nom)
    89 V
    Power Consumption
    39.1 W
    Voltage (Nom)
    89 V
    Warm-up time to 60% light
    120 s
    Product Data
    Order product name
    MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Order code
    68944700
    Full product code
    871829168944700
    Material number (12NC)
    928195405330
    Full product name
    MASTERColour CDM-R111 Elite CDM-R111 Elite 35W/930 GX8.5 24D
    Numerator - Packs per outer box
    6
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8718291689454
    Approval and Application
    Energy Efficiency Class
    G
    EPREL Registration Number
    473280
    Mercury (Hg) Content (Max)
    4.7 mg
    Energy Consumption kWh/1000 h
    40 kWh
    Mercury (Hg) Content (Nom)
    4.7 mg
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Finish
    Reflector
    Bulb Shape
    R111  [R 111mm]
    General Information
    Switching Cycle
    1,050
    Flux measurement reference
    Narrow Cone
    Operating Position
    UNIVERSAL  [Any or Universal (U)]
    Cap-Base
    GX8.5  [GX8.5]
    Light Technical
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    3000 K
    Color Code
    930  [CCT of 3000K]
    Luminous Intensity (Nom)
    8,500 cd
    Luminous Efficacy (rated) (Nom)
    46 lm/W
    Chromaticity Coordinate Y (Nom)
    0.398
    Luminous Flux in 90° Cone (Rated)
    1,750 lumen
    Beam Angle (Nom)
    24 degree(s)
    Luminous Flux
    1,750 lumen
    Chromaticity Coordinate X (Nom)
    0.434
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color rendering index (CRI)
    90
    Installation Diagrams
     GX8.5 R 111mm Reflector CCT of 3000K
    GX8.5 R 111mm Reflector CCT of 3000K
    GX8.5
    GX8.5
    any
    any
    Performance Diagrams
    Service Lifetime - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Service Lifetime - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Service Lifetime - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Service Lifetime - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Photometrics
    Accent Diagram - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Accent Diagram - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Spectral Power Distribution Colour - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Spectral Power Distribution Colour - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Light Distribution Diagram - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
    Light Distribution Diagram - MASTERC CDM-R111 Elite 35W/930 GX8.5 24D
