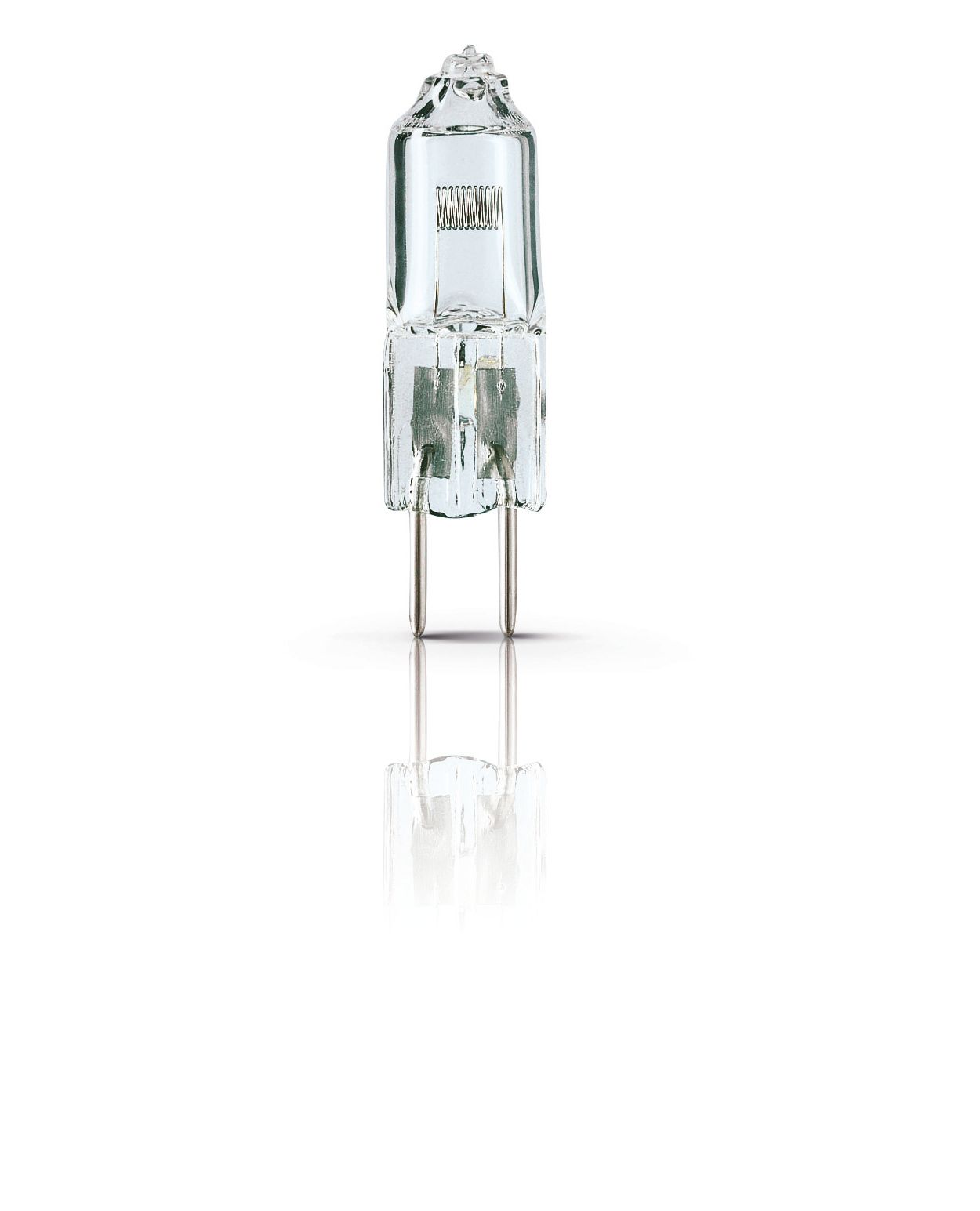

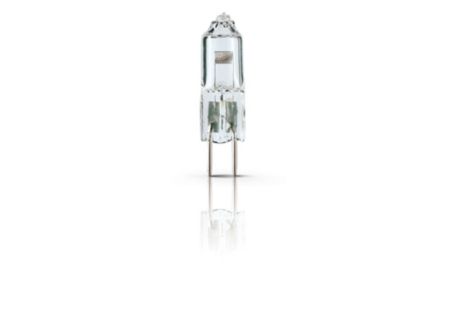

7724 100W GY6.35 12V 1CT/10X10F

Specifications Show all

General information

Cap base	GY6.35  [ GY6.35]
Philips code	7724
ANSI Code	EVA
LIF Code	M28
Operating position	S90  [ Standing +/-90D or Base Down (BDH)]
Main application	Projection
Life to 50% failures (nom.)	2000 h

Light technical

Luminous flux (rated) (nom.)	2800 lm
Correlated Colour Temperature (Nom)	3300 K
Colour rendering index (nom.)	100

Operating and electrical

Power (Rated) (Nom)	100 W
Voltage (Nom)	12 V

Mechanical and housing

Bulb material	Quartz-UV Open
Filament shape	Flat
Filament dimensions WxH	5x3.1

Luminaire design requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	871150040985050
Order product name	7724 EVA 100W GY6.35 12V
EAN/UPC – product	8711500409850
Order code	40985050
SAP numerator – quantity per pack	1
Numerator – packs per outer box	100
SAP material	923872517103
Net Weight (Piece)	0.003 kg
