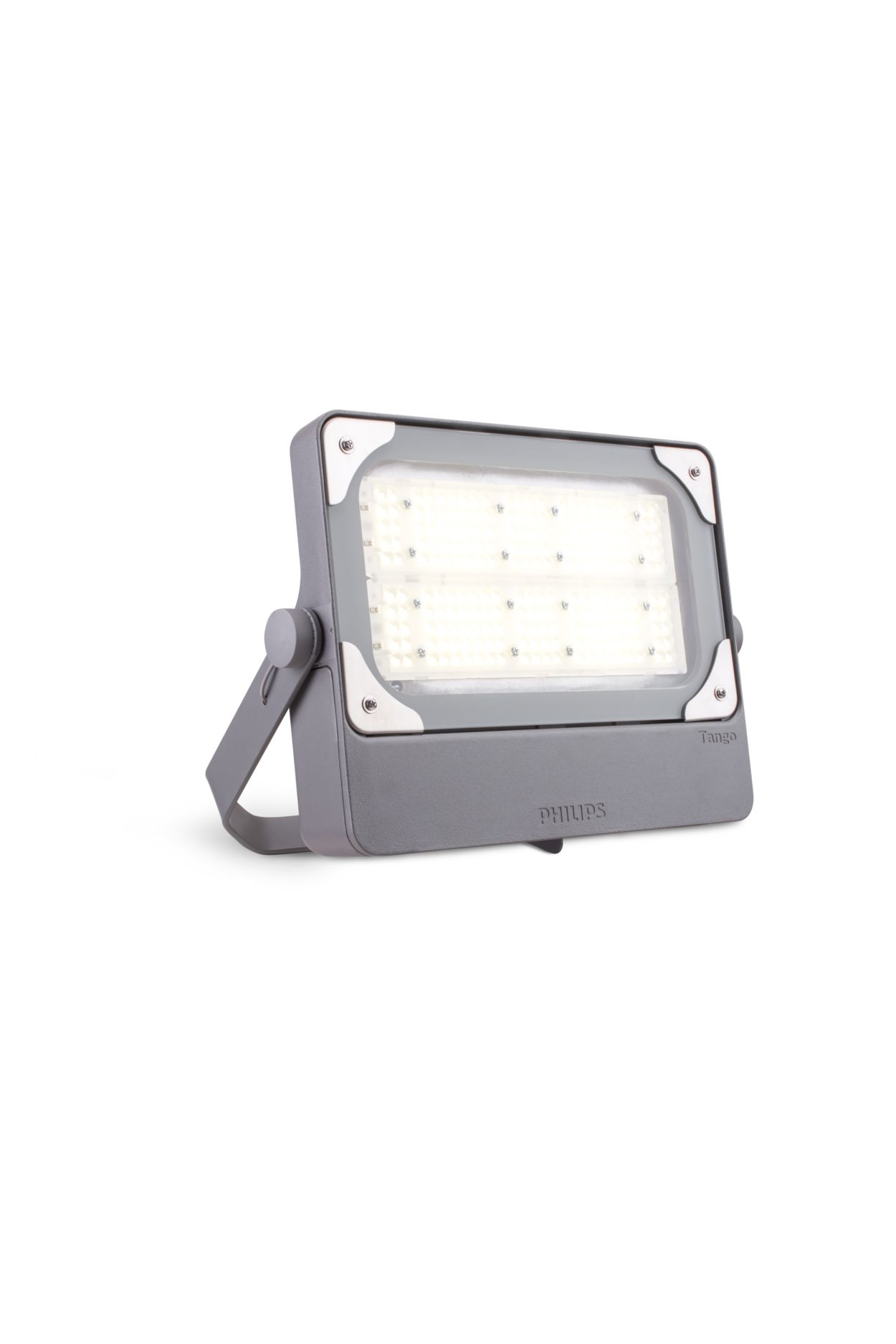

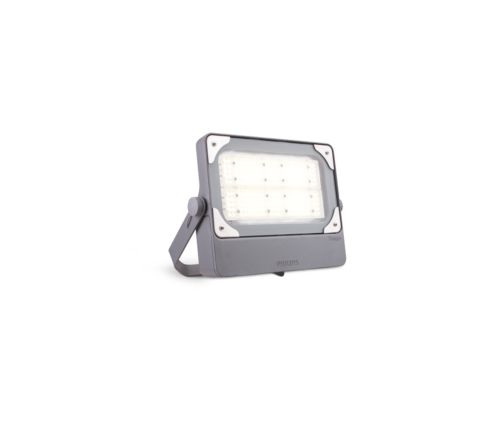

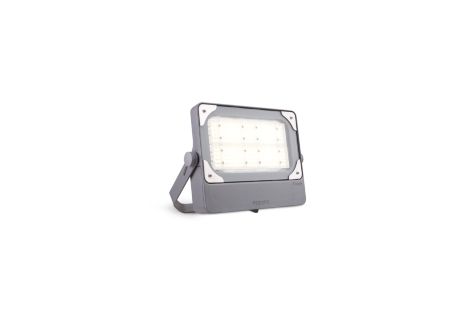

BVP492 LED183/NW 135W SWB 1-10V P7

Specifications Show all

Operating and Electrical

Connection	Flying leads/wires
Power Consumption	135 W
Cable	Cable 0.5 m without plug
Input Frequency	50 to 60 Hz
Inrush current	46 A
Line Frequency	50 to 60 Hz
Input Voltage	220-240 V
Power Factor (Fraction)	0.95

Product Data

EAN/UPC - Product	6922341978579
Order product name	BVP492 LED183/NW 135W SWB 1-10V P7
Order code	97857900
Full product code	692234197857900
Material number (12NC)	911401662507
Full product name	BVP492 LED183/NW 135W SWB 1-10V P7
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
EAN/UPC - Case	6922341978579

Approval and Application

Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark
Protection class IEC	Safety class I
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Control interface	depends on driver (1-10V, DALI…)
Dimmable	Yes

General Information

Driver included	Yes
Lighting Technology	LED

Mechanical and Housing

Effective projected area	0.11 m²
Overall length	290 mm
Optical cover/lens material	Polycarbonate
Housing Color	Gray
Overall height	216 mm
Dimensions (Height x Width x Depth)	216 x 536 x 290 mm
Housing Material	Aluminum Alloy
Overall width	536 mm

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Initial chromaticity	7
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Optical cover/lens type	Glass
Correlated Color Temperature (Nom)	4000 K
Light source color	White
Luminous Efficacy (rated) (Nom)	140 lm/W
Color rendering index (CRI)	>70
Luminous Flux	18,300 lumen
