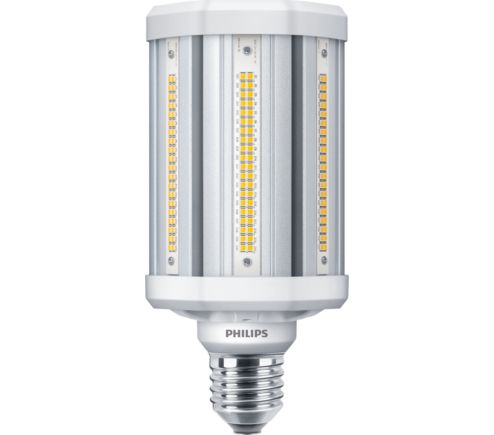

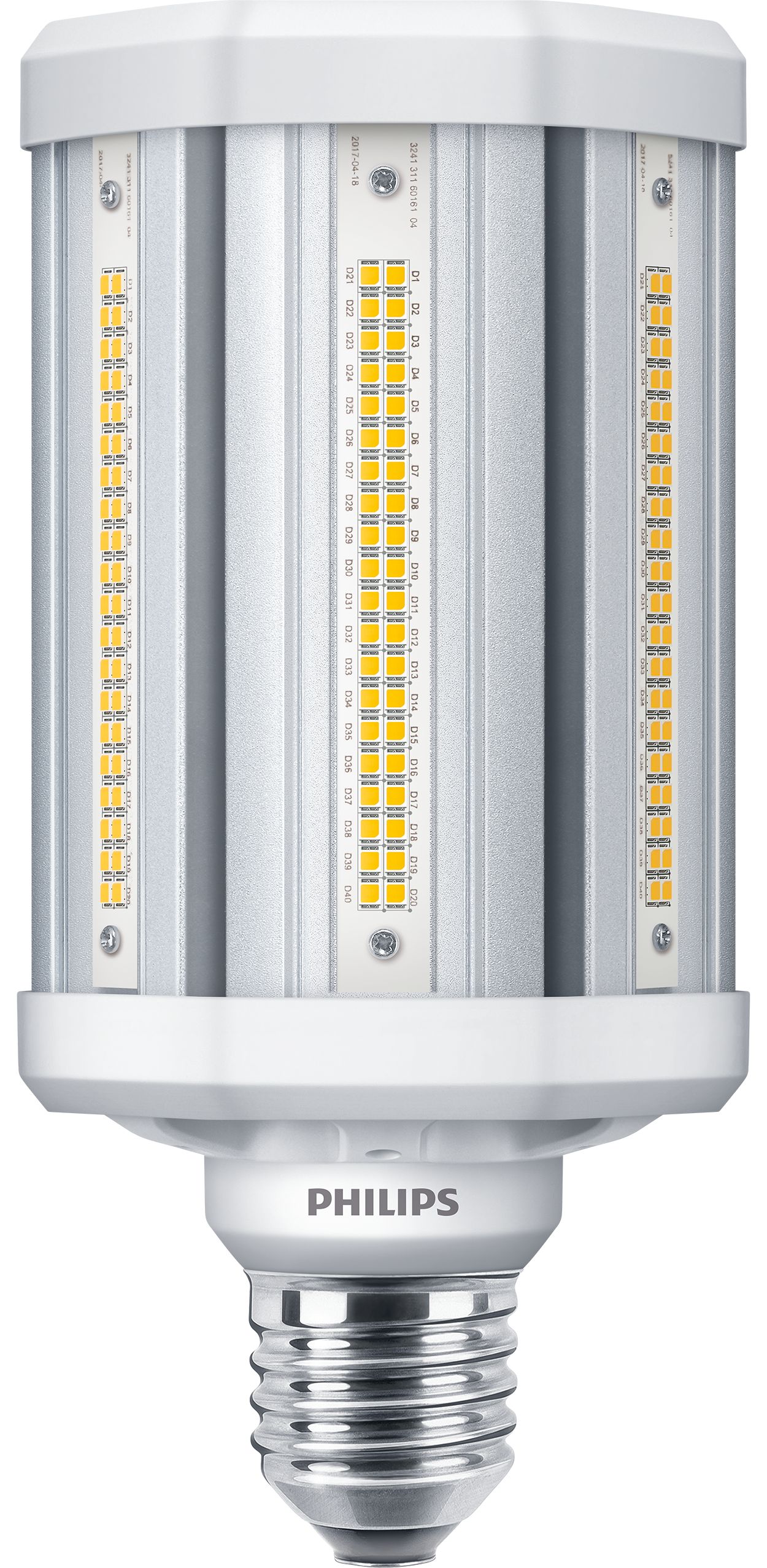

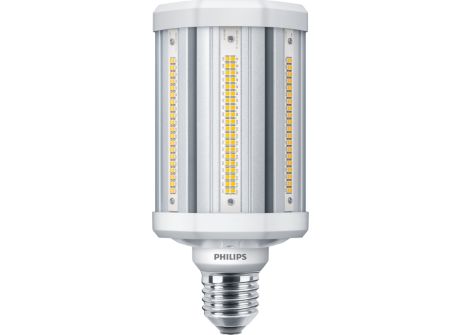

55ED28/LED/730/ND 120-277V G2 4/1

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	460 mA
Power Consumption	55 W
Input Frequency	50 to 60 Hz
Voltage (Nom)	120-277 V
Starting Time (Nom)	0.5 s
Warm-up time to 60% light	0.5 s
Line Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9

Approval and Application

Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes
Energy Certifications	DLC Standard

Product Data

Order product name	55ED28/LED/730/ND 120-277V G2 4/1
Order code	929001396804
Material number (12NC)	929001396804
Full product name	55ED28/LED/730/ND 120-277V G2 4/1
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
EAN/UPC - Case	50046677473636

Controls and Dimming

Dimmable

No

General Information

Switching Cycle	50,000
Cap-Base	E39  [Single Contact Mogul Screw]
Lighting Technology	LED
Nominal lifetime	50,000 hour(s)

Mechanical and Housing

Bulb Material	Plastic
Bulb Finish	Clear
Bulb Shape	Others

Temperature

Ambient temperature range	-40 °C to 55 °C
T-Case Maximum (Nom)	60 °C

Light Technical

Color Designation	White (WH)
Correlated Color Temperature (Nom)	3000 K
Color Code	730  [CCT of 3000K]
Luminous Efficacy (rated) (Nom)	133.33 lm/W
Beam Angle (Nom)	360 degree(s)
Luminous Flux	8,000 lumen
Color Consistency	ANSI 3000K
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color rendering index (CRI)	70
