    • CorePro LEDcapsule LV - For task lighting and decorative applications

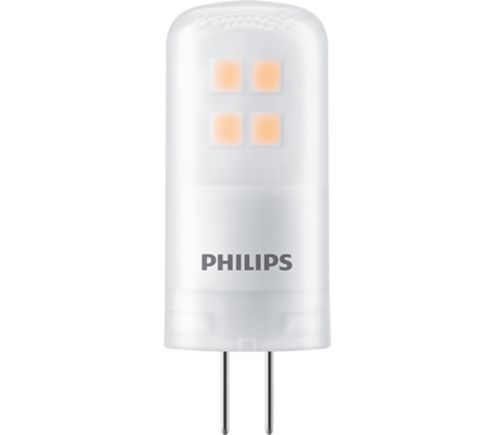

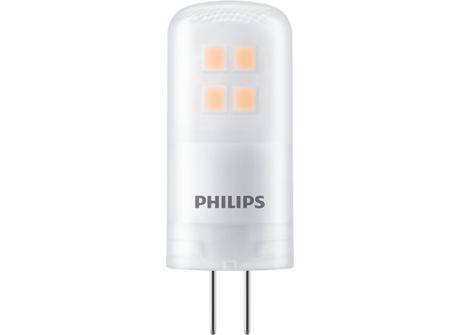

      CorePro LEDcapsuleLV 2.1-20W G4 827 D
      LED
      CorePro LEDcapsuleLV 2.1-20W G4 827 D
      CorePro LEDcapsule LV

      CorePro LEDcapsuleLV 2.1-20W G4 827 D

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    210 mA
    Power Consumption
    2.1 W
    Voltage (Nom)
    ac electronic 12 V
    Wattage Equivalent
    20 W
    Warm-up time to 60% light
    0.5 s
    Starting Time (Nom)
    0.5 s
    Line Frequency
    - Hz
    Input Frequency
    - Hz
    Power Factor (Fraction)
    0.8
    Product Data
    Order product name
    CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Order code
    76753200
    Full product code
    871869976753200
    Material number (12NC)
    929002389402
    Full product name
    CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Numerator - Packs per outer box
    12
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8718699767549
    Approval and Application
    EPREL Registration Number
    374870
    Energy Efficiency Class
    F
    CE mark
    Yes
    Energy Consumption kWh/1000 h
    3 kWh
    EU RoHS compliant
    Yes
    Suitable For Accent Lighting
    No
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    Mechanical and Housing
    Bulb Shape
    Capsule
    General Information
    Switching Cycle
    50,000
    Flux measurement reference
    Sphere
    Cap-Base
    G4  [G4]
    Lighting Technology
    LED
    Nominal lifetime
    15,000 hour(s)
    Temperature
    T-Case Maximum (Nom)
    80 °C
    Light Technical
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    2700 K
    Color Code
    827  [CCT of 2700K]
    Luminous Efficacy (rated) (Nom)
    100.00 lm/W
    Beam Angle (Nom)
    300 degree(s)
    Color Consistency
    <6
    Luminous Flux
    210 lumen
    Color rendering index (CRI)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G4 Capsule
    G4 Capsule
    G4
    G4
    Performance Diagrams
    Lumen Maintenance Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Lumen Maintenance Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Life Expectancy Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Life Expectancy Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Spectral Power Distribution Colour - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Light Distribution Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Light Distribution Diagram - CorePro LEDcapsuleLV 2.1-20W G4 827 D
    Downloads
    Product Data Sheet
    Green Data
    Visuals
    Software Plugins
    • IES IES File - CorePro LEDcapsuleLV 2.1-20W G4 827 D IES 8.8 kB
