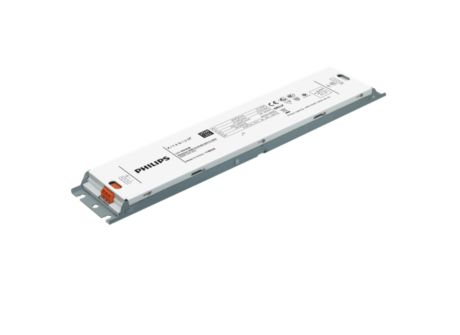

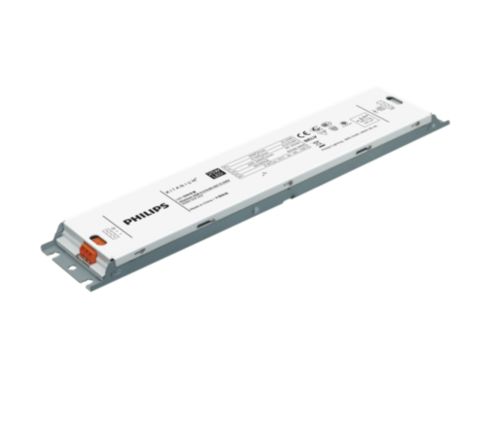

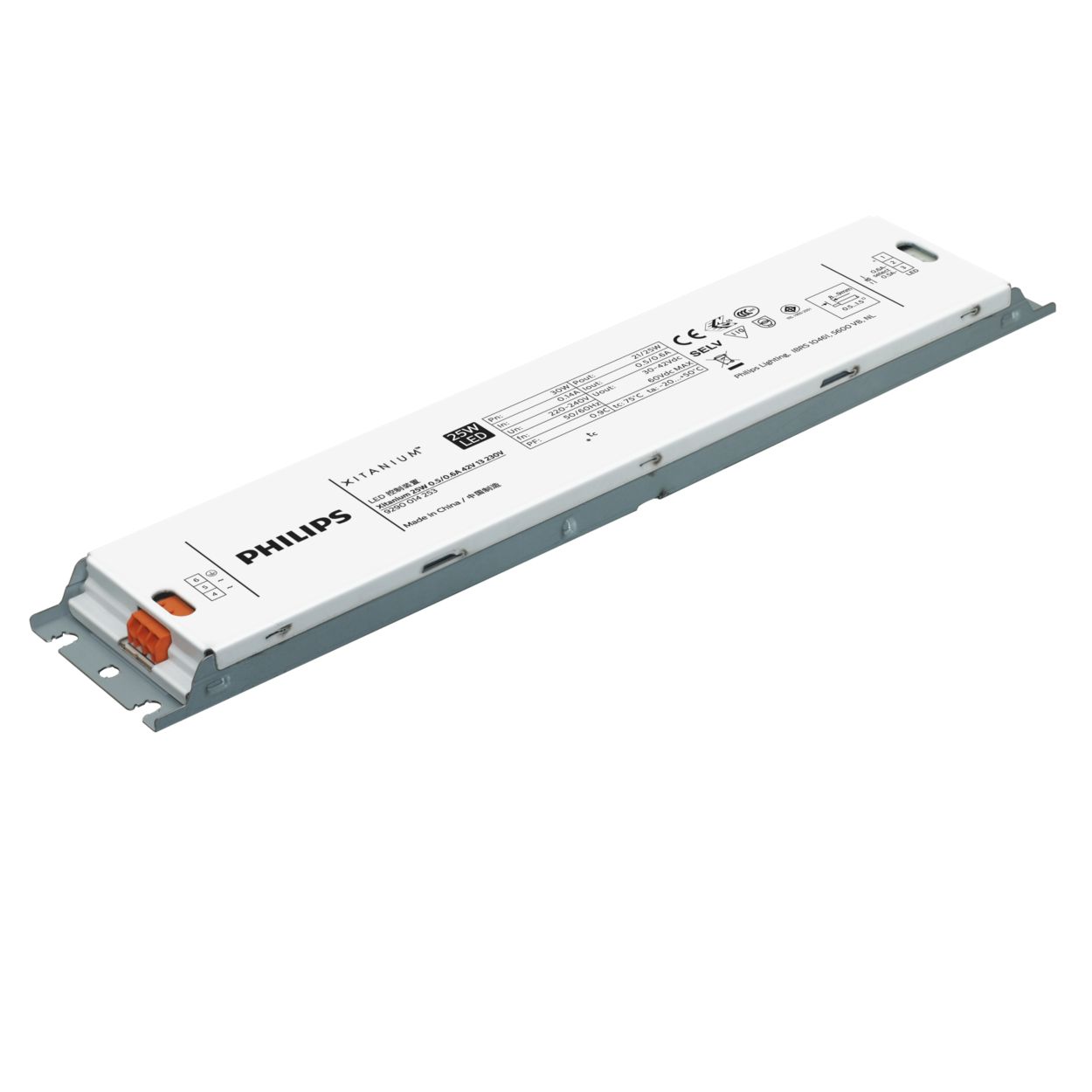

      Xitanium 25W 0.5/0.6A 42V 13 230V
      LED
      Xitanium 25W 0.5/0.6A 42V 13 230V
      Xitanium LED linear drivers – isolated

      Xitanium 25W 0.5/0.6A 42V 13 230V

    Specifications Show all

    Operating and Electrical
    Protection Level Up (LN-Earth) at 5 kA (Max)
    2 kV
    Constant Voltage (CV)
    False
    Diagnostics
    False
    Output Current (Min)
    500 mA
    Total Harmonic Distortion IEC (Max)
    0 %
    Inrush Current Width to 50% of Peak
    240 µs
    Open Circuit Voltage (DC) (Max)
    60 V
    Output Power (Min)
    15 W
    Inrush Current Peak (Max)
    18 A
    Energy Metering
    No
    Constant Current (CC)
    True
    Input current (DC)
    0
    Default output current
    500 mA
    Output Current (Max)
    600 mA
    Maximum Efficiency at Full Load
    85 %
    Output Voltage (Min)
    30 V
    Output Current Ripple (Max)
    4 %
    Power Factor 100% Load (Max)
    0
    Protection Level Up (L-N) at 5 kA (Max)
    1 kV
    Output Voltage (Max)
    42 V
    Line Frequency
    50 to 60 Hz
    Number of Products on MCB (16A Type-C) (Max)
    28 piece/unit
    Input current (AC)
    0.11 mA
    Output Power (Max)
    25 W
    Output Current Tolerance (Max)
    8 %
    Input Frequency
    50 to 60 Hz
    Power Factor (Fraction)
    0
    Product Data
    Order code
    14481500
    Full product name
    Xitanium 25W 0.5/0.6A 42V 13 230V
    Numerator - Quantity Per Pack
    1
    Full product code
    694793914481500
    Material number (12NC)
    929001425380
    EAN/UPC - Case
    6947939144822
    Order product name
    Xitanium 25W 0.5/0.6A 42V 13 230V
    Numerator - Packs per outer box
    25
    Approval and Application
    Corridor Mode
    True
    Protection class IEC
    Safety class I
    Open Circuit Protection
    Protected
    Short Circuit Protection
    Protected
    Isolation Classification
    SELV
    Over Power Protection
    Protected
    Ingress protection code
    IP20  [Finger-protected]
    Approval Marks
    CCC certificate
    CE marking
    ENEC certificate
    RCM compliance
    REACH compliance
    RoHS compliance
    Output Current Set Options
    Manual
    Controls and Dimming
    D4i compliant
    No
    DynaDimmer
    No
    Constant light output
    No
    Dimmable
    No
    General Information
    Nominal lifetime
    50,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Overall length
    250 mm
    Housing
    Linear 350x48.6x13 3p3p
    Dimensions (Height x Width x Depth)
    13 x 49 x 250 mm
    Overall width
    48.6 mm
    Product Length
    250 mm
    Overall height
    13 mm
    Wiring
    Input Wire Gauge
    16-20
    Cable Length From Device to Lamp
    0.6 m
    Connector Type Input Terminals
    Wago 744
    Input Wire Cross Section (Max)
    1.5 mm²
    Input Wire Cross Section (Min)
    0.5 mm²
    Output Wire Cross Section (Max)
    1.5 mm²
    Output wire strip length
    8 mm to 9 mm mm
    Input wire strip length
    8 mm to 9 mm mm
    Output Wire Cross Section (Min)
    0.5 mm²
    Hot Wiring
    no
    Connector Type Output Terminals
    Wago 744
    Temperature
    Ambient temperature range
    -20 °C to 50 °C
    T-Case Maximum (Max)
    75 °C
    T-Case Lifetime (Max)
    75 °C
    Maximum case temperature (in case of failure)
    110 °C
    Module Temperature Protection
    no
    System characteristics
    YellowDot ready
    No
    Central DC Operation
    No
