| Earth Leakage Current (Max) | 0.7
mA
|
| Constant Voltage (CV) | False
|
| Diagnostics | False
|
| Output Current (Min) | 350
mA
|
| Inrush Current Width to 50% of Peak | 202
µs
|
| Total Harmonic Distortion IEC (Max) | 15
%
|
| Output Power (Max) | 40
W
|
| Input Current (Nom) | 220
mA
|
| Output Current Tolerance (Max) | 10
%
|
| Power Consumption | 40
W
|
| Open Circuit Voltage (DC) (Max) | 120
V
|
| Inrush Current Peak (Max) | 16
A
|
| Energy Metering | No
|
| Constant Current (CC) | True
|
| Output Power (Min) | 27
W
|
| Output Current (Max) | 350
mA
|
| Maximum Efficiency at Full Load | 85
%
|
| Output Voltage (Min) | 80
V
|
| Default output current | 350-350
mA
|
| Input Frequency | 50 to 60
Hz
|
| Output Voltage (Max) | 115
V
|
| Output Current Ripple (Max) | 4
%
|
| Output Power (Nom) | 33.5
W
|
| Line Frequency | 50 to 60
Hz
|
| 12V Output | No
|
| Output Current (Nom) | 350
mA
|
| Number of Products on MCB (16A Type B) (Max) | 28
|
| Power Factor (Fraction) | 0.9
|

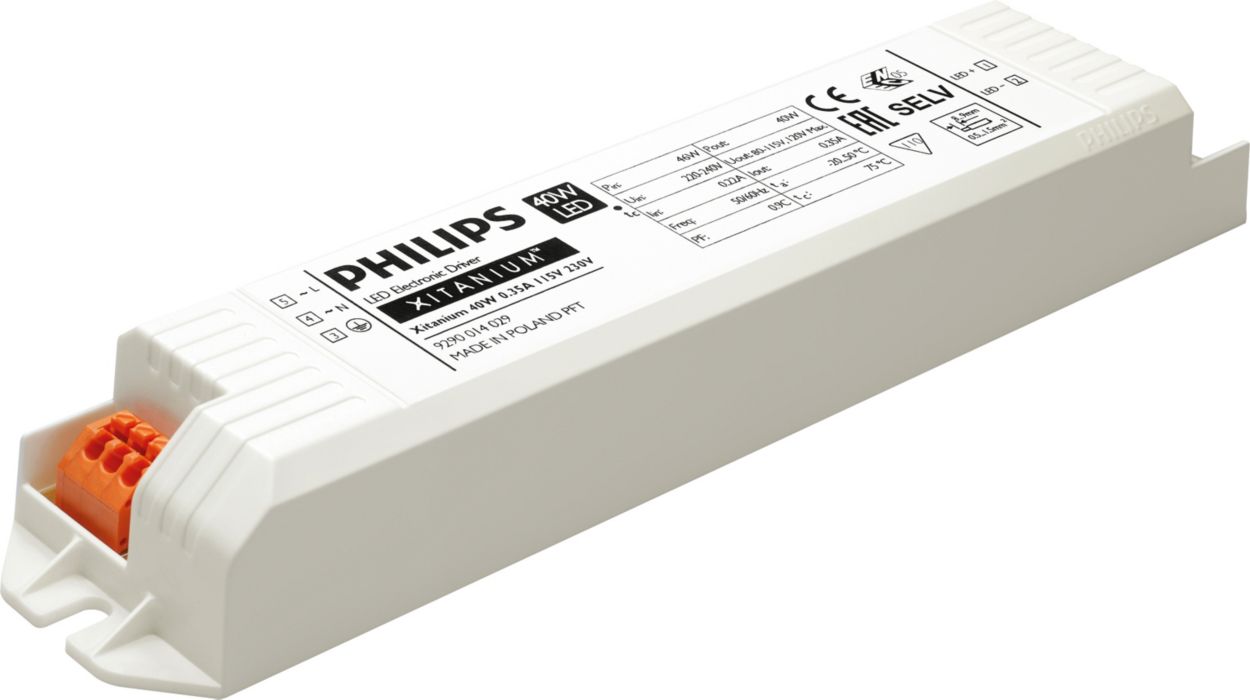

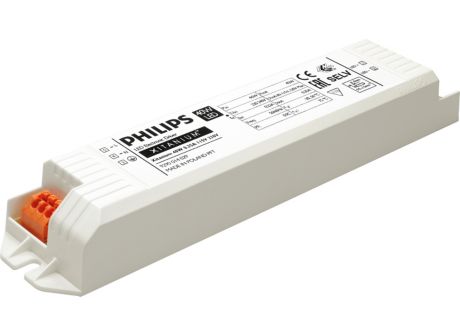

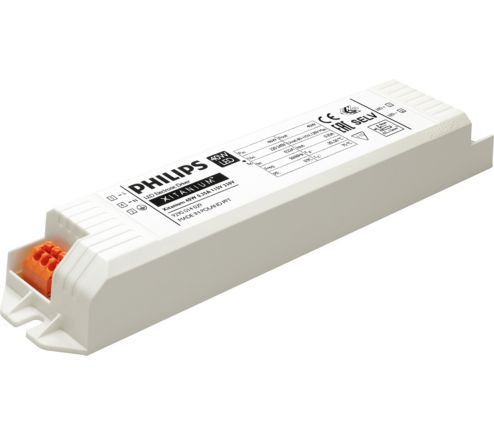

| Order product name | Xitanium 40W 0.35A 115V 230V
|
| Order code | 51548800
|
| Full product code | 871869651548800
|
| Full product name | Xitanium 40W 0.35A 115V 230V
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 20
|
| Material number (12NC) | 929001402906
|
| EAN/UPC - Case | 8718696515495
|
| Corridor Mode | False
|
||
| Short Circuit Protection | Protected
|
||
| Open Circuit Protection | Protected
|
||
| Isolation Classification | Class I
|
||
| Ingress protection code | IP20
[Finger-protected] |
||
| Surge Protection (Common/Differential) | EN61547 (L-L 1kV, L-G 2kV)
kV
|
||
| Relative Humidity (Operation) (Max) | 90
%
|
||
| Output Current Set Options | No
|
||
| Approval Marks | CE marking
|
ENEC certificate
|
SELV
|
| Control Interface | None
|
| Dimmable | No
|
| Housing | LH211_apr
|
| Lighting Technology | LED
|
| Cable Length From Device to Lamp | 0.6
m
|
| Connector Type Input Terminals | Wago 250
|
| Input Wire Cross Section (Max) | 1.5
mm²
|
| Input Wire Cross Section (Min) | 0.2
mm²
|
| Connector Type Output Terminals | Wago 250
|
| Output Wire Cross Section (Max) | 1.5
mm²
|
| Output wire strip length | 8.5 mm to 9.5 mm
mm
|
| Input wire strip length | 8.5 mm to 9.5 mm
mm
|
| Output Wire Cross Section (Min) | 0.2
mm²
|
| Hot Wiring | No
|
| Ambient temperature range | -20 °C to 50 °C
|
| T-Case Lifetime (Nom) | 75
°C
|
| T-Case Maximum (Max) | 75
°C
|
| T-Case Lifetime (Max) | 75
°C
|
| Maximum case temperature (in case of failure) | 110
°C
|
