    • CoreLine Recessed – the clear choice for LED

      RC136B 31S_37S_43S/840 PSD W60L60 OCELB3
      LED

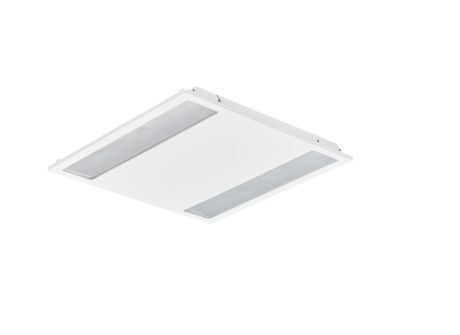

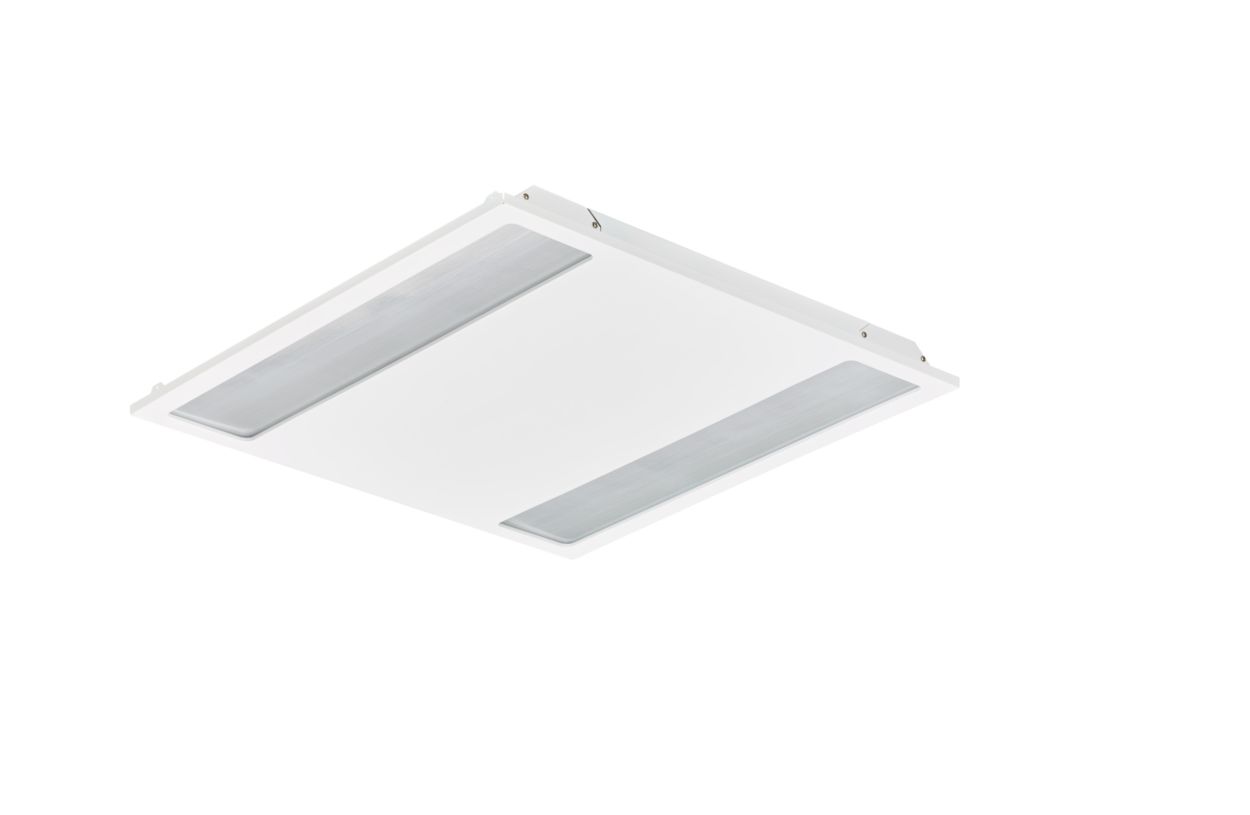

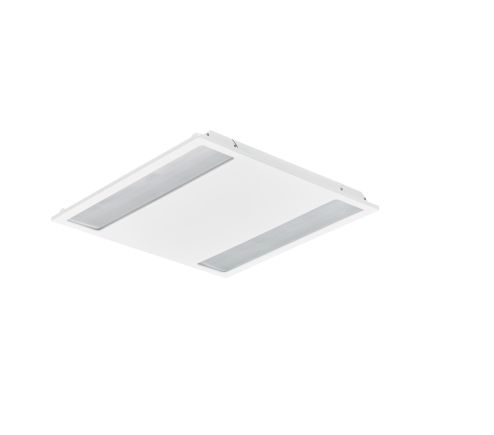

      RC136B 31S_37S_43S/840 PSD W60L60 OCELB3
      CoreLine recessed

      RC136B 31S_37S_43S/840 PSD W60L60 OCELB3

    Specifications Show all

    Operating and Electrical
    Connection
    Connection unit 7-pole
    Power Consumption
    34 W
    29 W
    25 W
    Inrush time
    0.23 ms
    Cable
    Cable with connector 5-pole
    Inrush current
    15.6 A
    Number of products on MCB of 16 A type B
    30
    Line Frequency
    50 or 60 Hz
    Input Voltage
    220-240 V
    Input Frequency
    50 or 60 Hz
    Power Factor (Fraction)
    0.9
    Over Time Performance (IEC Compliant)
    Lumen maintenance at median useful life* 100000 h
    L70
    Control gear failure rate at median useful life 50000 h
    5 %
    Lumen maintenance at median useful life* 50000 h
    L85
    Product Data
    Order code
    97548700
    Full product name
    RC136B 31S_37S_43S/840 PSD W60L60 OCELB3
    Numerator - Quantity Per Pack
    1
    Full product code
    871869997548700
    Material number (12NC)
    910505101241
    EAN/UPC - Case
    8718699975487
    Order product name
    RC136B 31S_37S_43S/840 PSD W60L60 OCELB3
    Numerator - Packs per outer box
    1
    Approval and Application
    Flammability mark
    For mounting on normally flammable surfaces
    CE mark
    Yes
    Protection class IEC
    Safety class II
    Ingress protection code
    IP20/44  [Finger-protected; wire-protected, splash-proof]
    Sustainability rating
    -
    Warranty period
    5 years
    Photobiological risk
    Photobiological risk group 0 @200mm to EN62778
    EU RoHS compliant
    Yes
    Mech. impact protection code
    IK03  [0.3 J]
    Glow-wire test
    Temperature 650 °C, duration 30 s
    ENEC mark
    ENEC mark
    Controls and Dimming
    Driver/power unit/transformer
    Power supply unit with DALI interface
    Control interface
    DALI
    Constant light output
    No
    Dimmable
    Yes
    General Information
    Product family code
    RC136B  [CORELINE RECESSED GEN3]
    Number of gear units
    1 unit
    Service tag
    No
    Driver included
    Yes
    Light source replaceable
    No
    Value ladder
    Performance
    Lighting Technology
    LED
    Mechanical and Housing
    Fixation material
    -
    Optic material
    Polycarbonate
    Reflector material
    Polycarbonate
    Overall length
    597 mm
    Optical cover/lens material
    Polymethyl methacrylate
    Housing Material
    Steel
    Housing Color
    White RAL 9003
    Optical cover/lens finish
    Diamond
    Dimensions (Height x Width x Depth)
    44 x 597 x 597 mm
    Overall width
    597 mm
    Overall height
    44 mm
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.38, 0.38) SDCM ≤3
    Luminous flux tolerance
    +/-10%
    Power consumption tolerance
    +/-10%
    Application Conditions
    Suitable for random switching
    Yes
    Maximum dim level
    3%
    Performance ambient temperature Tq
    25 °C
    Temperature
    Ambient temperature range
    0 to +25 °C
    Light Technical
    Correlated Color Temperature (Nom)
    4000 K
    Light source color
    840 neutral white
    Unified glare rating CEN
    19
    Luminous Efficacy (rated) (Nom)
    126 lm/W
    Optic type
    Wide beam
    Saturated Red (R9)
    <50
    Stroboscopic effect value (SVM)
    0.4
    Luminaire light beam spread
    84°
    Color rendering index (CRI)
    ≥80
    Luminous Flux
    3,100 lumen
    3,700 lumen
    4,300 lumen
    Flickering value (PstLM)
    1
    Installation Diagrams
     CORELINE RECESSED GEN3
    CORELINE RECESSED GEN3
