    • Maxos LED Industry – innovative, flexible solution delivers ideal light output

      4MX850 491 LED55S/830 PSD NB WH
      LED
      4MX850 491 LED55S/830 PSD NB WH

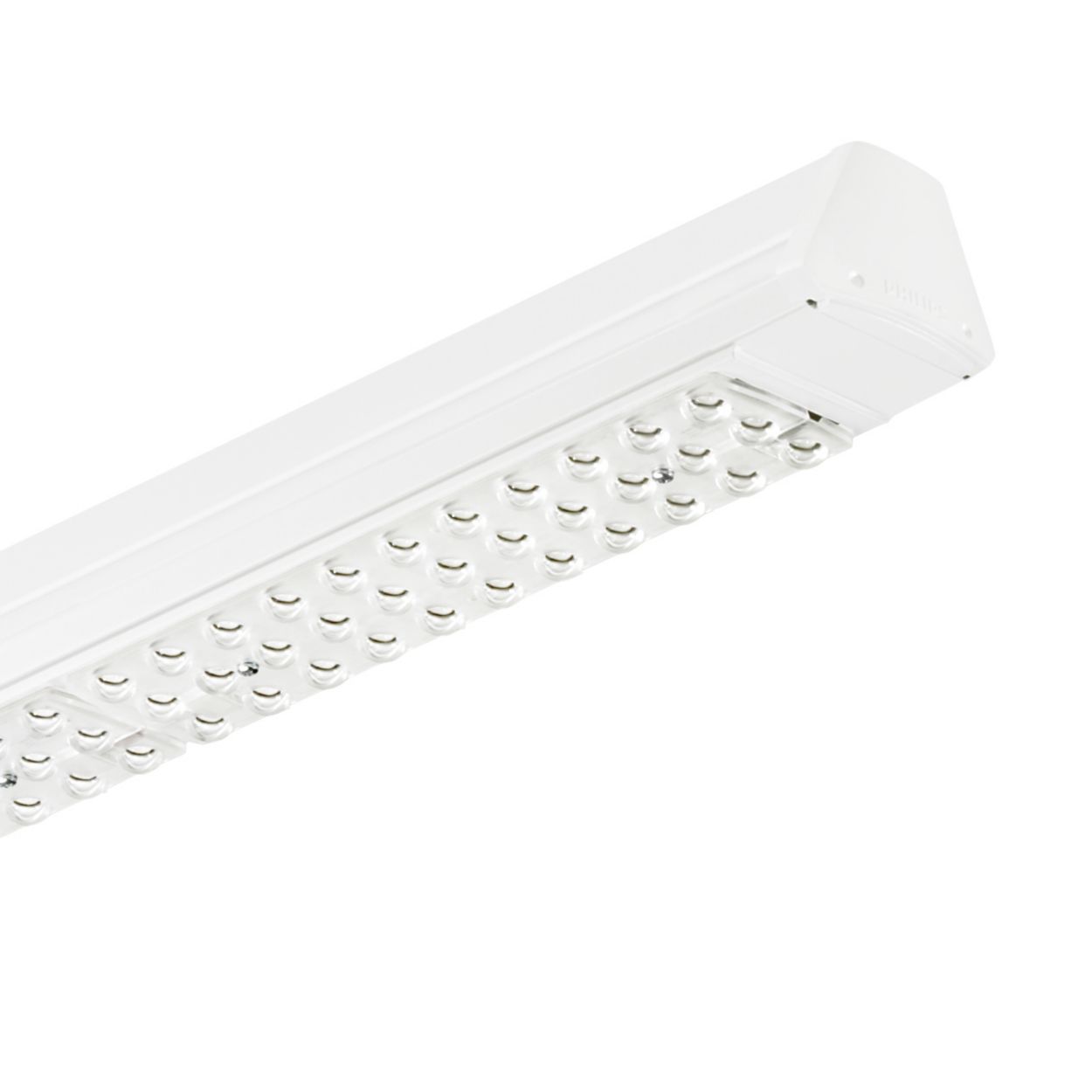

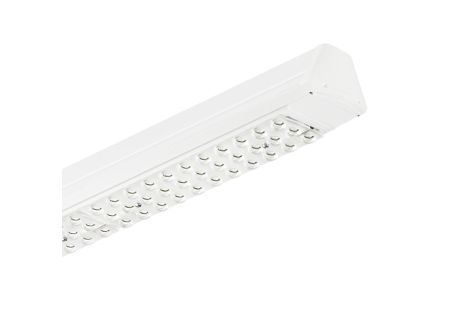

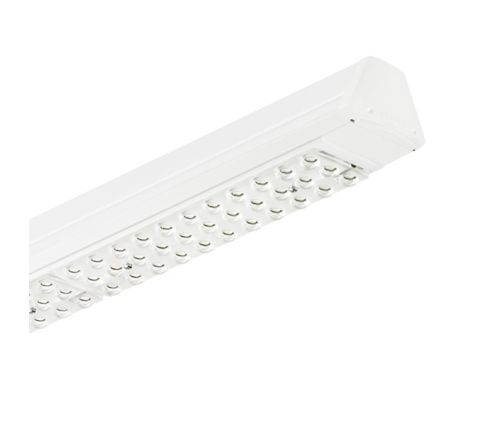

      Maxos LED

      4MX850 491 LED55S/830 PSD NB WH

    Specifications Show all

    Operating and Electrical
    Connection
    Connection unit 5-pole
    Power Consumption
    32.5 W
    Cable
    -
    Inrush current
    21 A
    Number of products on MCB of 16 A type B
    24
    Line Frequency
    50 to 60 Hz
    Input Voltage
    220-240 V
    Inrush time
    0.280 ms
    Input Frequency
    50 to 60 Hz
    Power Factor (Fraction)
    0.9
    Product Data
    Order code
    66117699
    Full product name
    4MX850 491 LED55S/830 PSD NB WH
    Full product code
    403073266117699
    Material number (12NC)
    910629120026
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    4030732256693
    Order product name
    4MX850 491 LED55S/830 PSD NB WH
    Numerator - Packs per outer box
    3
    Over Time Performance (IEC Compliant)
    Lumen maintenance at median useful life* 50000 h
    L90
    Control gear failure rate at median useful life 100000 h
    10 %
    Lumen maintenance at median useful life* 100000 h
    L80
    Control gear failure rate at median useful life 50000 h
    5 %
    Approval and Application
    Flammability mark
    -
    CE mark
    Yes
    Protection class IEC
    Safety class I
    Warranty period
    5 years
    Ingress protection code
    IP20  [Finger-protected]
    Sustainability rating
    -
    Photobiological risk
    Photobiological risk group 0 @200mm to EN62778
    EU RoHS compliant
    Yes
    Mech. impact protection code
    IK02  [0.2 J standard]
    Glow-wire test
    Temperature 650 °C, duration 30 s
    ENEC mark
    ENEC mark
    Controls and Dimming
    Driver/power unit/transformer
    Power supply unit with DALI interface
    Constant light output
    No
    Control interface
    DALI
    Dimmable
    Yes
    General Information
    Gear
    -
    Product family code
    4MX850  [Maxos Led Industry]
    Number of gear units
    1 unit
    Lamp family code
    LED55S  [LED Module, system flux 5500 lm]
    Remarks
    *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
    Service tag
    Yes
    Cap-Base
    -  [-]
    Light source replaceable
    No
    Driver included
    Yes
    Value ladder
    Performance
    Lighting Technology
    LED
    Mechanical and Housing
    Reflector material
    -
    Optic material
    Polymethyl methacrylate
    Fixation material
    Steel
    Overall length
    1,478 mm
    Optical cover/lens material
    Polymethyl methacrylate
    Housing Material
    Steel
    Housing Color
    White
    Dimensions (Height x Width x Depth)
    50 x 63 x 1478 mm
    Optical cover/lens finish
    Clear
    Overall width
    63 mm
    Overall height
    50 mm
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.43, 0.40) SDCM <3.5
    Luminous flux tolerance
    +/-10%
    Power consumption tolerance
    +/-10%
    Application Conditions
    Suitable for random switching
    Not applicable
    Maximum dim level
    1%
    Performance ambient temperature Tq
    25 °C
    Temperature
    Ambient temperature range
    -20 to +35 °C
    Light Technical
    Optical cover/lens type
    Polymethyl methacrylate bowl/cover
    Correlated Color Temperature (Nom)
    3000 K
    Light source color
    830 warm white
    Unified glare rating CEN
    Not applicable
    Luminous Efficacy (rated) (Nom)
    160 lm/W
    Optic type
    Narrow beam
    Number of light sources
    1
    Luminaire light beam spread
    50°
    Color rendering index (CRI)
    ≥80
    Luminous Flux
    5,200 lumen
    Beam angle of light source
    120 degree(s)
    Installation Diagrams
     Maxos Led Industry - 1 unit for TL5 49 W - LED Module, system flux 5500 lm - 830 warm white - Power supply unit with DALI interface - Narrow beam - White
    Maxos Led Industry - 1 unit for TL5 49 W - LED Module, system flux 5500 lm - 830 warm white - Power supply unit with DALI interface - Narrow beam - White
