| Lamp family code | LED185
[ LED module 18500 lm] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | -
|
| Control interface | -
|
| Connection | CU3
[ Connection unit 3-pole] |
| Cable | Cord 0.5 m with cable connector 3-pole
|
| Protection class IEC | Safety class II (II)
|
| Coating | Marine salt protected coating
|
| Flammability mark | NO
[ -] |
| CE mark | Yes
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Optic type outdoor | Distribution medium 12
|
| Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
| Number of products on MCB (16 A type B) | 8
|
| EU RoHS compliant | Yes
|
| Light source engine type | LED
|
| Serviceability class | Class A, the luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge-protection device, optics, front cover and mechanical parts
|

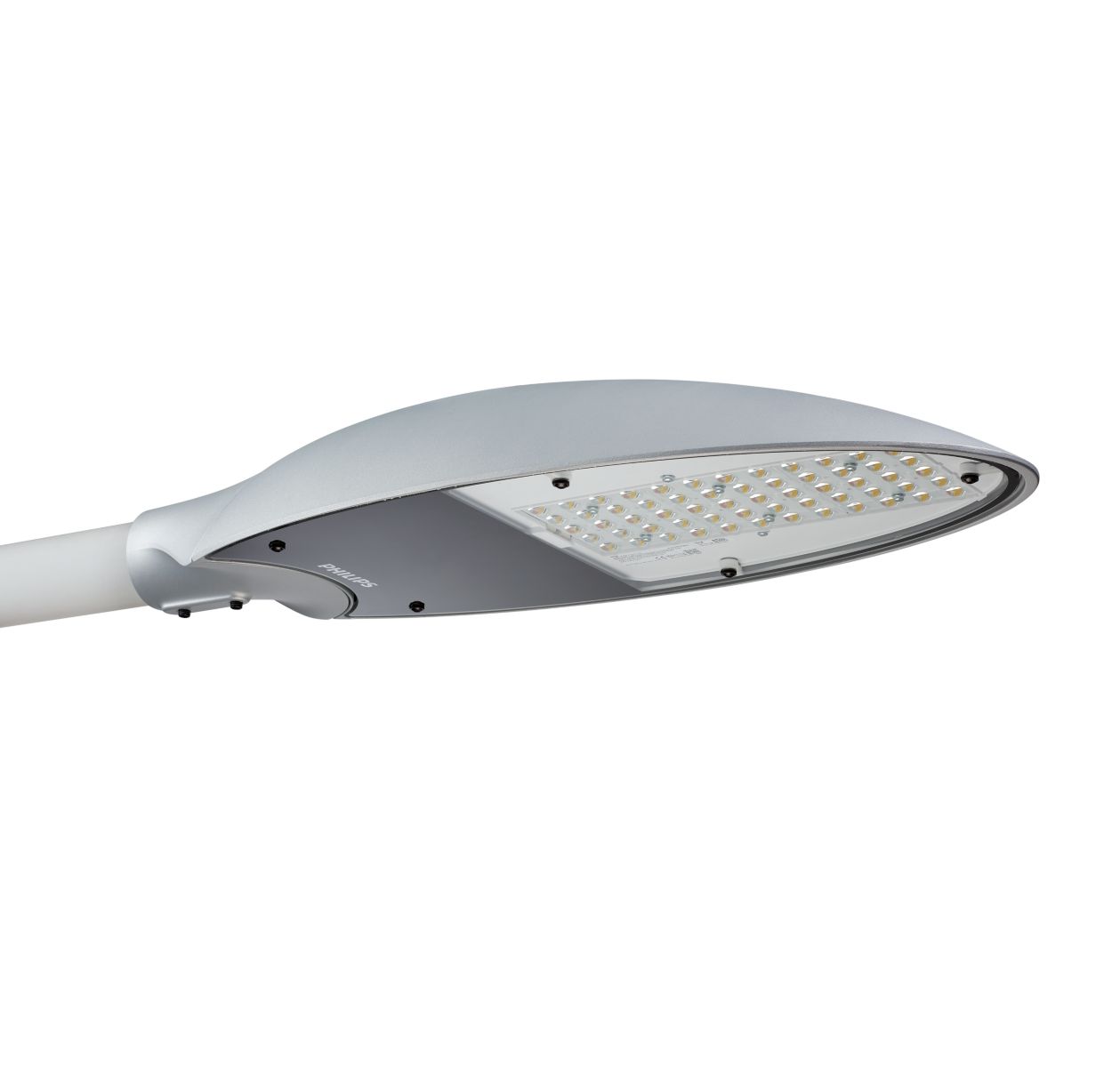

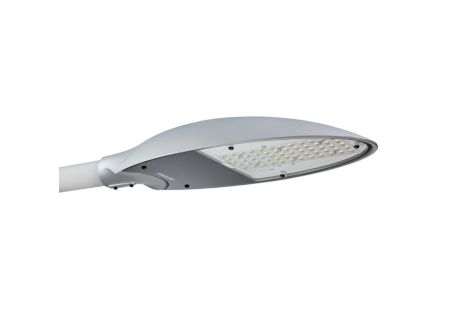

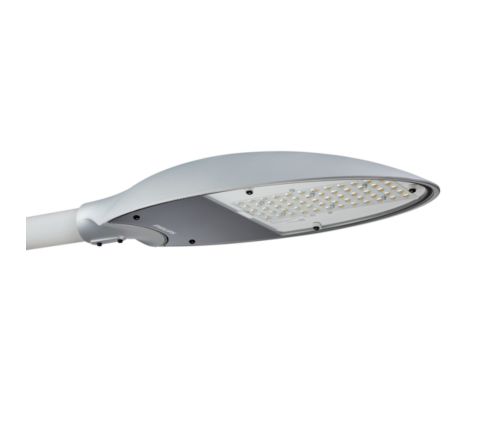

| Product family code | BRP436
[ MileWide 2 side entry large] |
| Upward light output ratio | 0
|
| Standard tilt angle post-top | -
|
| Standard tilt angle side entry | -
|
| Input Voltage | 220/240
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 53
A
|
| Inrush time | 300
ms
|
| Power factor (min.) | 0.98
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polymethyl methacrylate
|
| Optical cover/lens material | Glass
|
| Fixation material | Aluminium
|
| Mounting device | 60S
[ Side-entry for diameter 60 mm] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|
| Overall length | 734
mm
|
| Overall width | 306
mm
|
| Overall height | 137
mm
|
| Effective projected area | 0.066
m²
|
| Colour | Silver
|
| Dimensions (height x width x depth) | 137 x 306 x 734 mm
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Surge protection (common/differential) | Surge protection level until 10
kV
|
| Sustainability rating | -
|
| Initial luminous flux (system flux) | 15725
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 138
lm/W
|
| Init. Corr. Colour Temperature | 4000
K
|
| Init. Colour rendering index | >70
|
| Initial chromaticity | (0.380, 0.380) SDCM <5
|
| Initial input power | 114
W
|
| Power consumption tolerance | +/-10%
|
| Init. colour rendering index tolerance | +/-2
|
| Driver failure rate at 5,000 hours | 0.05
%
|
| Lumen maintenance at median useful life* 100,000 h | L95
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871869958047600
|
| Order product name | BRP436LED185-4S/740II SI BL1D28DM12SRG10
|
| EAN/UPC – product | 8718699580476
|
| Order code | 58047600
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| SAP material | 919008633660
|
| Net Weight (Piece) | 9.027
kg
|
