| Number of light sources | 15
[ 15 pcs] |
| Lamp family code | CG25
[ LED module, system flux 2500 lm] |
| Light source colour | 730 warm white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Gear | EB
[ Electronic] |
| Driver/power unit/transformer | PSR
[ Power supply unit regulating] |
| Driver included | Yes
|
| Optical cover/lens type | PC
[ Polycarbonate bowl/cover] |
| Luminaire light beam spread | 360°
|
| Control interface | -
|
| Light regulation | Dimming via Lineswitch (ON= maximum output level)
|
| Connection | Flying leads/wires
|
| Cable | Cable 0.2 m without plug
|
| Protection class IEC | Safety class II (II)
|
| Glow-wire test | 650/5
[ Temperature 650 °C, duration 5 s] |
| Flammability mark | NO
[ -] |
| CE mark | Yes
|
| ENEC mark | ENEC mark
|
| UL mark | -
|
| Warranty period | 5 years
|
| Optic type outdoor | Asymmetrical
|
| Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
| Spare parts available | Yes
|
| Number of products on MCB (16 A type B) | 32
|
| Lifecycle services | Maintenance services
|
| Photobiological risk | Photobiological risk group 1 @200mm to EN62778
|
| Product recyclability | 95%
|
| EU RoHS compliant | Yes
|
| WEEE mark | -
|
| Light source engine type | LED
|
| Accessory PFC | -
|
| Serviceability class | Class A, the luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge-protection device, optics, front cover and mechanical parts
|

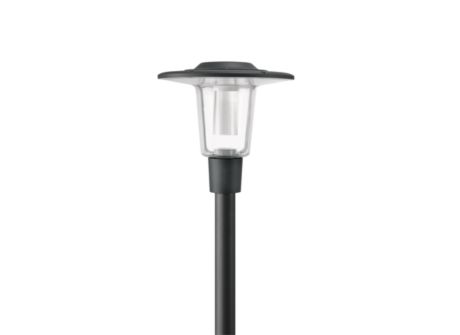

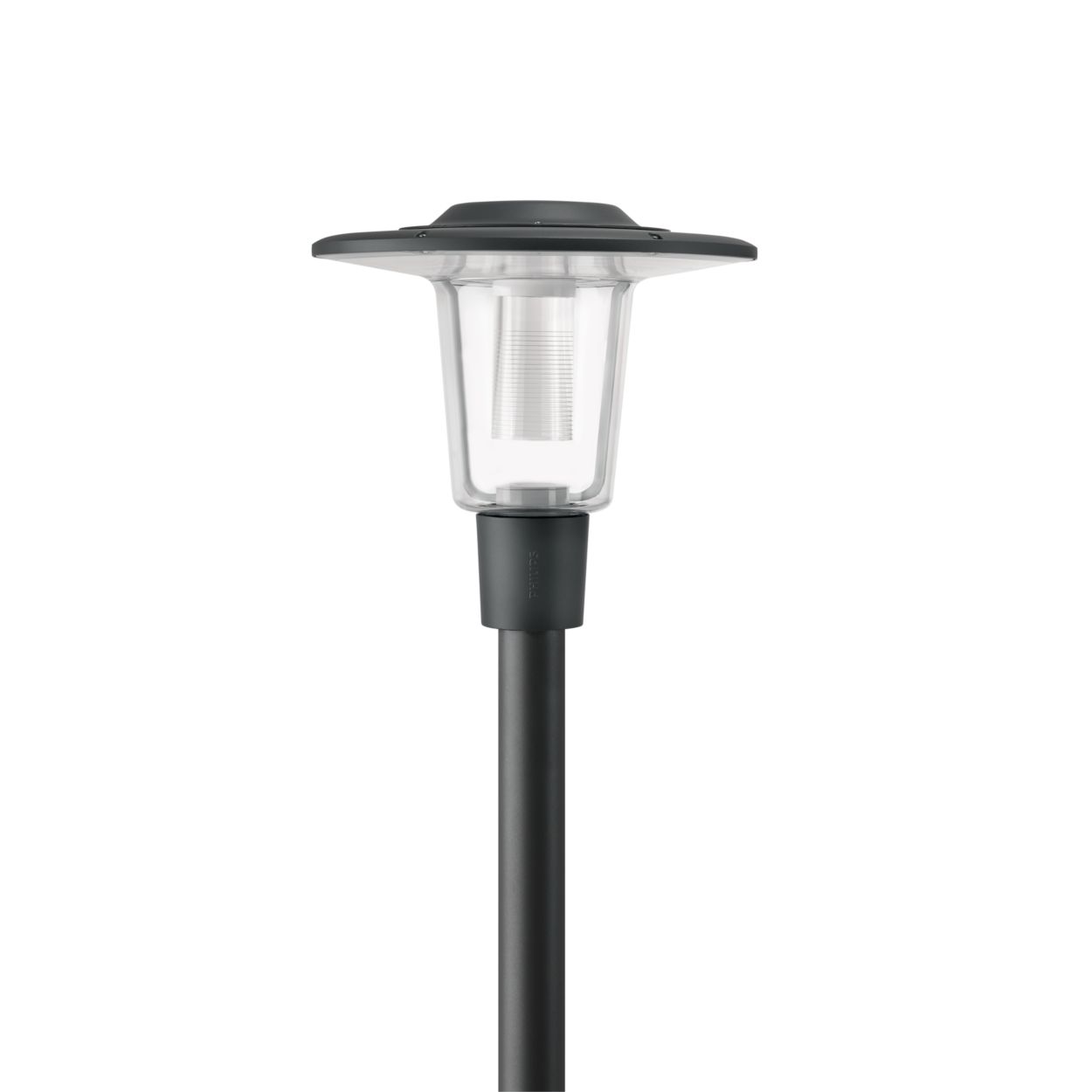

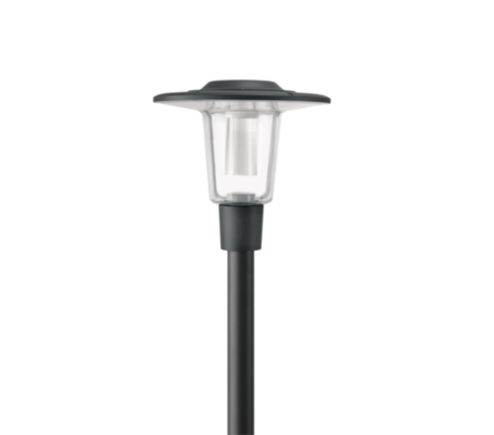

| Product family code | BDS490
[ CityCharm Cordoba] |
| Upward light output ratio | 0.03
|
| Scotopic/photopic lumen ratio | 1.24
|
| Initial luminous flux at 15 °C | 2501
lm
|
| Initial luminous flux at 25 °C | 2501
lm
|
| Initial luminous flux at 35 °C | 2501
lm
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input Voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Control signal voltage | -
|
| Inrush current | 27
A
|
| Inrush time | 15
ms
|
| Driver current | 447
mA
|
| Power factor (max.) | 0.9
|
| Power factor (min.) | 0.8
|
| Power factor (nom.) | 0.848
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | Aluminium
|
| Mounting device | 76
[ Spigot for diameter 76 mm] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|
| Torque | 25
|
| Overall height | 529
mm
|
| Overall diameter | 556
mm
|
| Effective projected area | 0.1124
m²
|
| Colour | Gray
|
| Dimensions (height x width x depth) | 529 x NaN x NaN mm
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK10
[ 20 J vandal-resistant] |
| Surge protection (common/differential) | Luminaire surge protection level up to 6 kV differential mode and 8 kV common mode
|
| Sustainability rating | -
|
| Initial luminous flux (system flux) | 2117
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 96
lm/W
|
| Init. Corr. Colour Temperature | 3000
K
|
| Init. Colour rendering index | ≥70
|
| Initial chromaticity | (0.430, 0.400) SDCM <3
|
| Initial input power | 22
W
|
| Power consumption tolerance | +/-10%
|
| Init. colour rendering index tolerance | +/-2
|
| Driver failure rate at 5,000 hours | 0.05
%
|
| Lumen maintenance at median useful life* 100,000 h | L93
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871869693920800
|
| Order product name | BDS490 CG25-/730 II A GR D11 76
|
| EAN/UPC – product | 8718696939208
|
| Order code | 93920800
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| SAP material | 910505017425
|
| Net Weight (Piece) | 12.000
kg
|
