| Lamp family code | LED100
[ LED module 10000 lm] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSD
[ Power supply unit with DALI interface] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | 154° - 31° x 54°
|
| Control interface | DALI
|
| Connection | SI
[ Screw connection block] |
| Cable | -
|
| Protection class IEC | Safety class II (II)
|
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium
|
| Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
| Number of products on MCB | 11
|
| EU RoHS compliant | No
|
| LED engine type | LED
|
| Serviceability class | Class A, the luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge-protection device, optics, front cover and mechanical parts
|

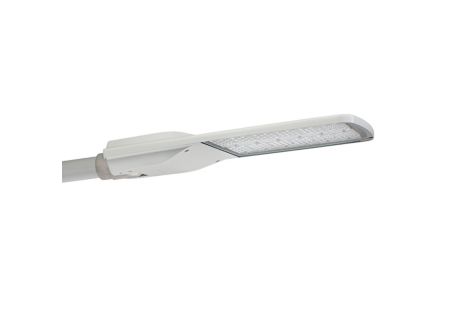

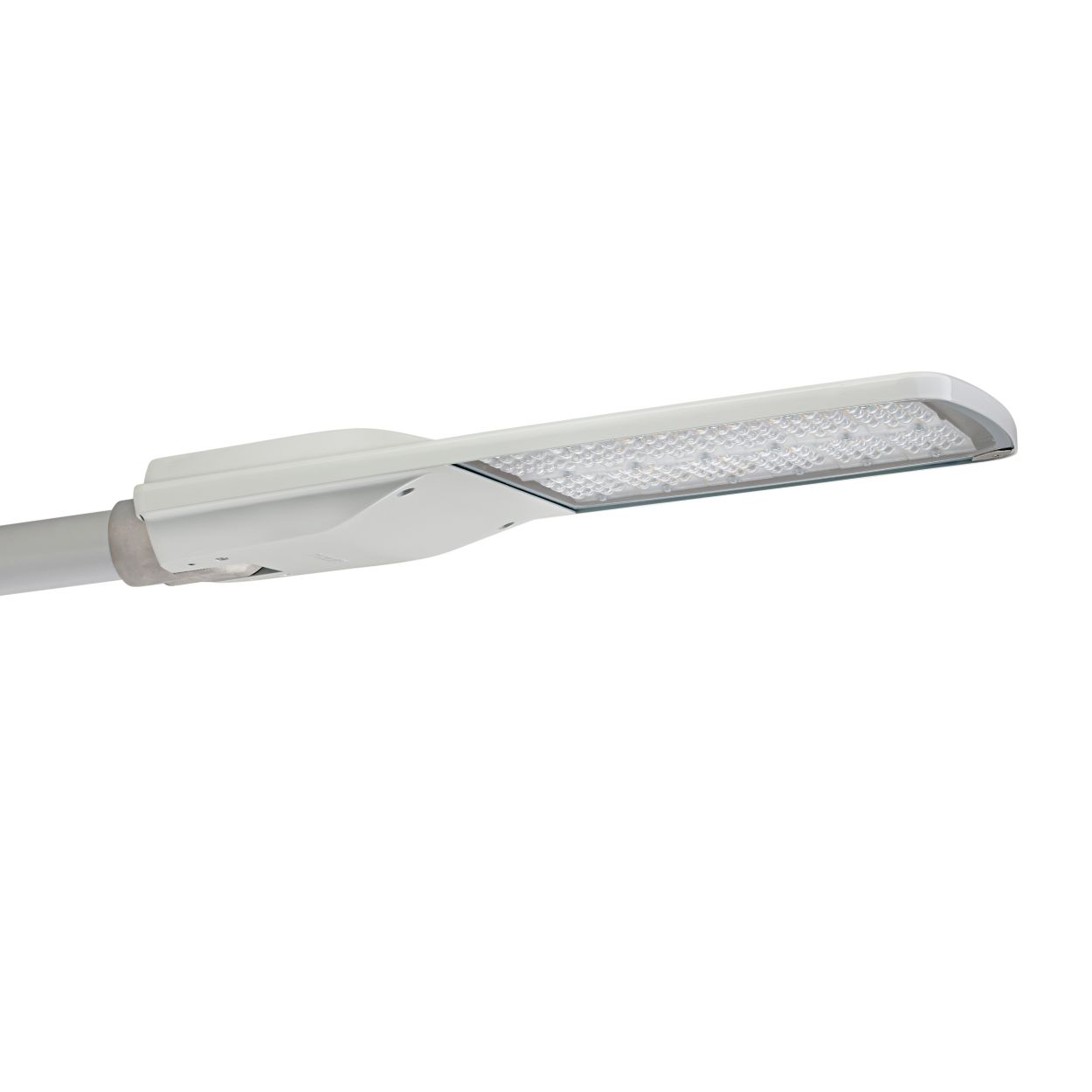

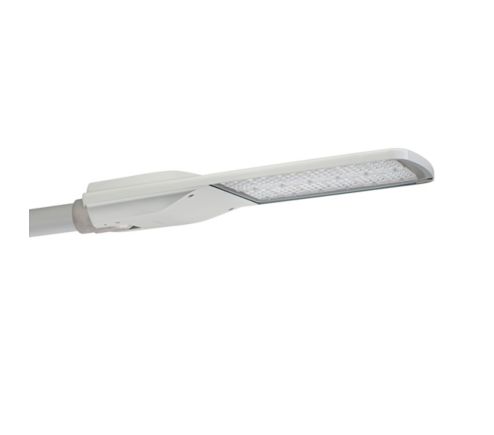

| Product Family Code | BGP214
[ LumiStreet Large] |
| Upward light output ratio | 0
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220-240
V
|
| Input frequency | 50 to 60
Hz
|
| Initial CLO power consumption | 0
W
|
| Average CLO power consumption | [DELETE]
W
|
| End CLO power consumption | [DELETE]
W
|
| Inrush current | 46
A
|
| Inrush time | 0.25
ms
|
| Power factor (min.) | 0.98
|
| Dimmable | Yes
|
| Housing material | Aluminum die–cast
|
| Reflector material | Polycarbonate
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Tempered glass
|
| Fixation material | Aluminium
|
| Mounting device | 48/60A
[ Universal for diameter 48-60 mm adjustable] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|
| Overall length | 755
mm
|
| Overall width | 355
mm
|
| Overall height | 98
mm
|
| Overall diameter | 0
mm
|
| Effective projected area | 0.04
m²
|
| Colour | Gray
|
| Dimensions (height x width x depth) | 98 x 355 x 755 mm (3.9 x 14 x 29.7 in)
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Surge protection (common/differential) | Philips standard surge protection level
kV
|
| Initial luminous flux | 9460
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 141
lm/W
|
| Init. Corr. Colour Temperature | 4000
K
|
| Init. colour rendering index | 70
|
| Initial chromaticity | (0.381, 0.379) SDCM <5
|
| Initial input power | 67
W
|
| Power consumption tolerance | +/-11%
|
| Ambient temperature range | -40 to +50 °C
|
| Maximum dimming level | 0% (digital)
|
| Full product code | 871869634887100
|
| Order product name | BGP214 LED109-4S/740 II DM50 D9 48/60A
|
| EAN/UPC – product | 8718696348871
|
| Order code | 34887100
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910925866130
|
| Net weight (piece) | 8.800
kg
|
