| Number of light sources | 20
[ 20 pcs] |
| Lamp family code | GRN30
[ LED GreenLine 3000 lm] |
| Light source colour | 830 warm white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Gear | EB
[ Electronic] |
| Driver/power unit/transformer | PSR
[ Power supply unit regulating] |
| Driver included | Yes
|
| Decorative spill light | Gray bowl
|
| Optical element | No
[ -] |
| Optical cover/lens type | PC
[ Polycarbonate bowl/cover] |
| Luminaire light beam spread | 360°
|
| Embedded control | No
[ -] |
| Control interface | -
|
| Electrical circuit protection | -
|
| Connection | Flying leads/wires
|
| Cable | Cable 0.2 m without plug
|
| Protection class IEC | Safety class II (II)
|
| Coating | -
|
| Glow-wire test | 650/30
[ Temperature 650 °C, duration 30 s] |
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium
|
| Photocell | No
[ -] |
| Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
| Spare parts available | Yes
|
| Number of products on MCB | 32
|
| Photobiological risk | Risk group 1
|
| Product recyclability | 56%
|
| WEEE mark | WEEE mark
|
| LED engine type | LED
|

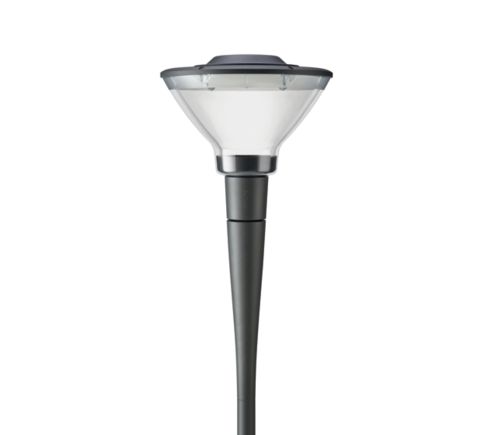

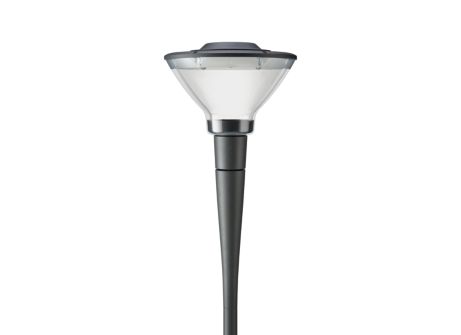

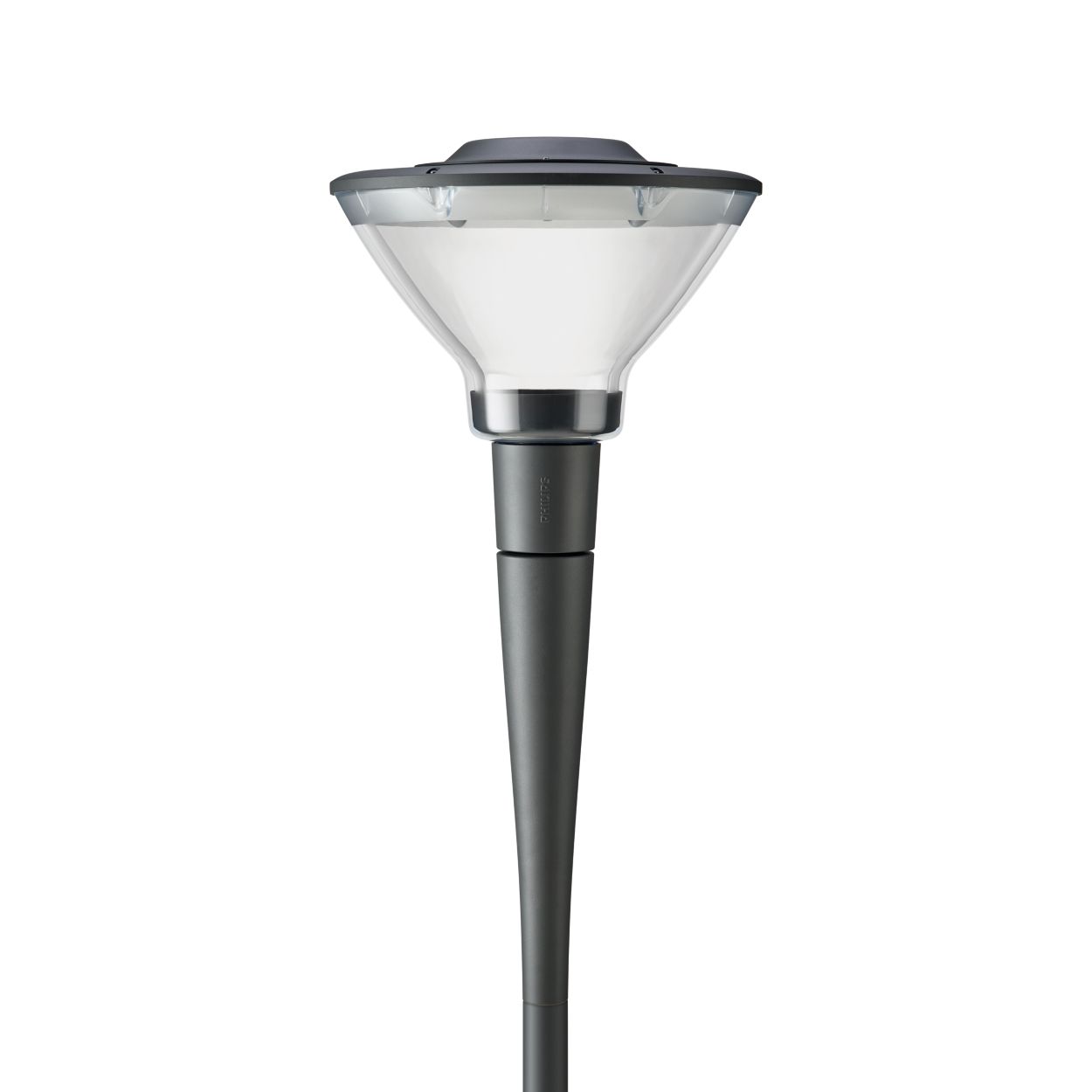

| Product Family Code | BDS491
[ CityCharm Cone] |
| Upward light output ratio | 0.03
|
| Initial luminous flux at 15°C | 3000
lm
|
| Initial luminous flux at 25°C | 3000
lm
|
| Initial luminous flux at 35°C | 3000
lm
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 27
A
|
| Inrush time | 15
ms
|
| Driver current | 375
mA
|
| Power factor (min.) | 0.8
|
| Power factor (nom.) | 0.9
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | Aluminum
|
| Mounting device | 60
[ Spigot for diameter 60 mm] |
| Optical cover/lens shape | Hemispherical
|
| Optical cover/lens finish | Clear
|
| Torque | 25
|
| Overall height | 529
mm
|
| Overall diameter | 556
mm
|
| Effective projected area | 0.1155
m²
|
| Colour | Gray
|
| Dimensions (height x width x depth) | 529 x NaN x NaN mm (20.8 x NaN x NaN in)
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK10
[ 20 J vandal-resistant] |
| Surge protection (common/differential) | Luminaire surge protection level up to 6 kV differential mode and 8 kV common mode
|
| Initial luminous flux | 2315
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 103
lm/W
|
| Init. Corr. colour temperature | 3000
K
|
| Init. colour rendering index | ≥80
|
| Initial chromaticity | (0.430, 0.400) SDCM <3
|
| Initial input power | 22
W
|
| Power consumption tolerance | +/-10%
|
| Ambient temperature range | -40 to +50 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871869692168500
|
| Order product name | BDS491 GRN30-/830 II DM GRB GR 60
|
| EAN/UPC – product | 8718696921685
|
| Order code | 92168500
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910505017184
|
| Net weight (piece) | 12.000
kg
|
