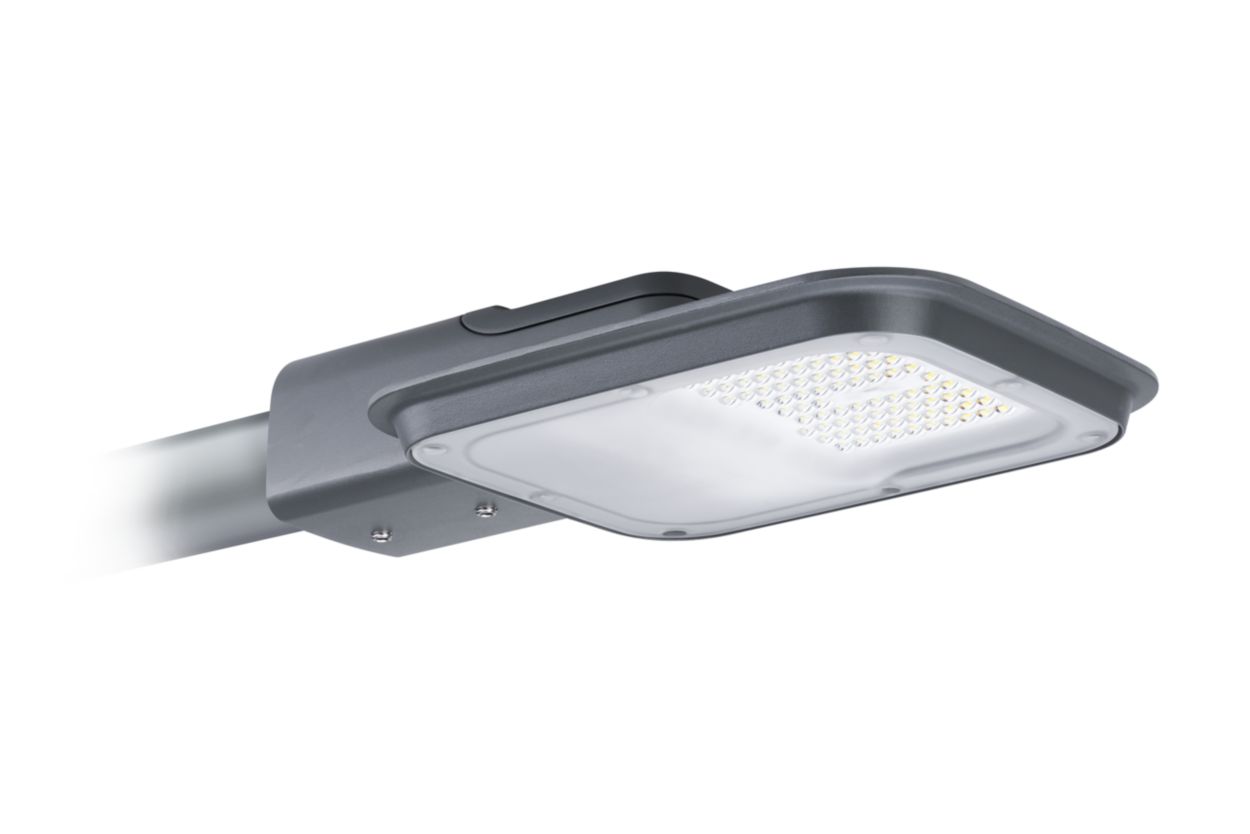

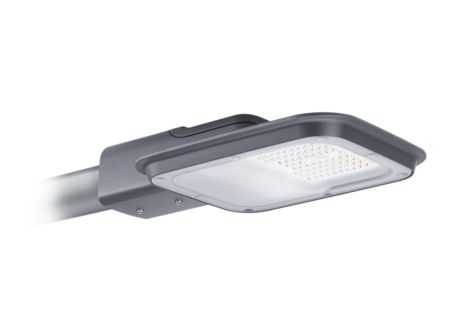

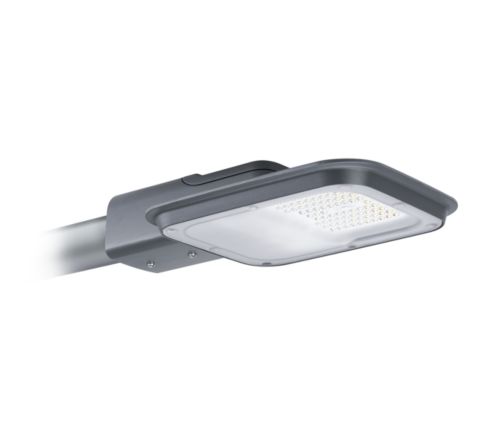

BRP130 LED88/WW 70W 220-240V DM GM

Specifications Show all

General information

Light source colour	Warm white
Driver included	Yes
Optical cover/lens type	TT  [ Transparent bowl with transparent cover]
Control interface	-
Connection	SI  [ Screw connection block]
Cable	Cable 0.5 m without plug
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark

Operating and electrical

Input Voltage	220-240 V
Input frequency	50 or 60 Hz
Inrush current	15 A
Power factor (min.)	0.9

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminum
Optical cover/lens material	Polycarbonate
Overall length	383 mm
Overall width	249 mm
Overall height	85 mm
Effective projected area	0.08 m²
Colour	Gray
Dimensions (height x width x depth)	85 x 249 x 383 mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	8800 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	125 lm/W
Init. Corr. Colour Temperature	3000 K
Init. Colour rendering index	>70
Initial chromaticity	7
Initial input power	70 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951454887900
Order product name	BRP130 LED88/WW 70W 220-240V DM GM
EAN/UPC – product	8719514548879
Order code	54887900
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401675907
Net Weight (Piece)	2.590 kg
