        Product family information

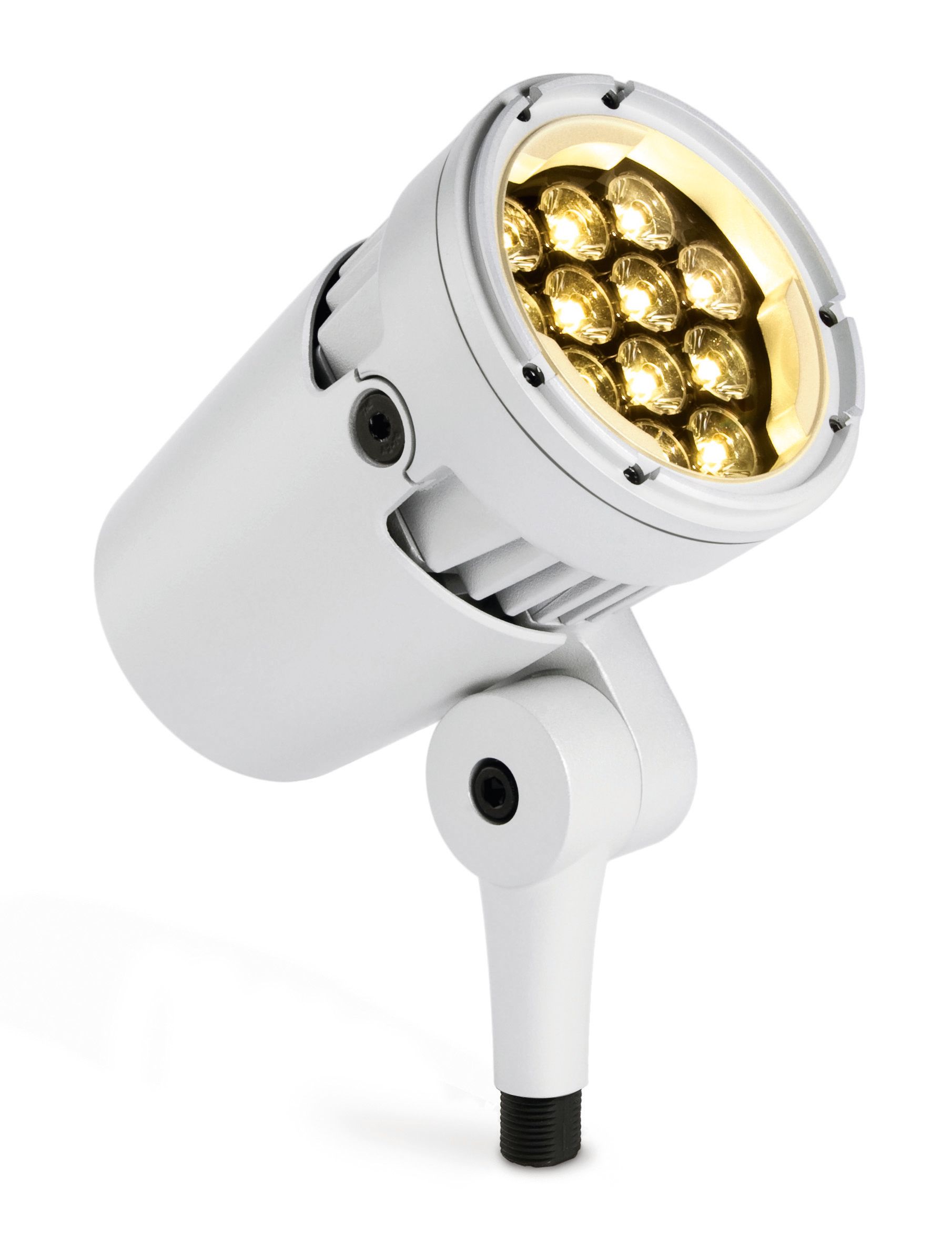

        eW Burst Compact Powercore is a high-output, exterior-rated LED lighting fixture designed for accent and site lighting. Standard and compact format Architectural and Landscape versions deliver high-quality white light in a choice of warm or neutral color temperatures, as well as four solid colors, to support a range of uplighting, floodlighting, and decorative lighting applications.Integrated Powercore technology ensures rapid, efficient and accurate control of power output to the fixture directly from line voltage, eliminating the need for external power supplies. Use of standard wiring dramatically simplifies installation and helps lower total system cost.

        Benefits

        High-quality white and solid-color light
        Versatile light positioning
        Cost-effective, easy to install, and long lifetime

        Features

        Choice of neutral (4000 K) or warm (2700 K) white light; also available in four solid colors (red, green, blue and amber)
        14°, 23°, 41°, and asymmetric 10° x 41° spread lenses project a soft-edge beam; native 8° beam angle offers extended light projection.
        Tilting through a full 180°. Architectural fixtures can also rotate through a full 360° for precise aiming.
        Smooth dimming capability with many ELV dimmers
        Integrated Powercore technology

        Applications

        Uplighting
        Floodlighting
        Decorative lighting
        Downloads
        Leaflets
        Visuals
        Software plugins
        الأدوات المتعلقة
        Product family details
        General
        Type
        • BCP463
        Light source
        • Non-replaceable LED module
        • Available in white (2700K or 4000K) as well as 4 solid colors (Red, Blue, Green, Amber)
        Power
        • 20 W max. at full output
        Beam angle
        • 8º primary optic
        • 14, 23 or 41º spread lenses
        • 10 x 41º asymmetric spread lens
        Luminous flux
        • 624 lm (8º), 543 lm (14º), 540 lm (23º), 520 lm (41º), 557 lm (10 x 41º) - 2700 K
        • 812 lm (8º), 685 lm (14º), 674 lm (23º), 646 lm (41º), 695 lm (10 x 41º) - 4000 K
        Correlated Color Temperature
        • 2700 K, warm white
        • 4000 K, neutral white
        Color Rendering Index
        • > 82.6 (2700 K) or > 80.6 (4000 K)
        Maintenance of lumen output - L50
        • 120,000 hrs at 25ºC
        • 70,000 hrs at 50ºC
        Maintenance of lumen output - L70
        • 90,000 hrs at 25ºC
        • 45,000 hrs at 50ºC
        Operating temperature range
        • -40 to +50ºC operating
        • -20 to +50ºC start-up
        Driver
        • Built-in
        Mains voltage
        • 100-277 V AC / 50-60 Hz
        Dimming
        • Compatible with ELV dimmers
        Optic
        • Symmetrical and asymmetrical with spread lenses
        Material
        • Housing: high-pressure, die-cast aluminum, powder-coating finished
        • Glass: tempered
        • Mounting bracket: high-pressure, die-cast aluminum, powder coating finished
        Color
        • Light grey, black and white
        Maintenance
        • No internal cleaning required
        Installation
        • Screw mounting on surface, a dedicated accessory is available for the landscape version
        • Max adjustment from the horizontal: -180 to +180º
        • Max vertical aiming: -180 to +180º
        • The architectural-mounting version is delivered with unified power cable of 1.8 m
        • The landscape-version fixtures feature a 13 mm NPT threaded post for mounting to third-party mounting accessories
        • Four colors (red, green, blue and amber) support also the range of uplighting and can be made on demand
        Accessories
        • Spread lenses and trim ring (to hold each lens on the product)
        • Honeycomb louver and trim ring (to hold the louver on the product)
        • Glare shield 45° and full glare shield
