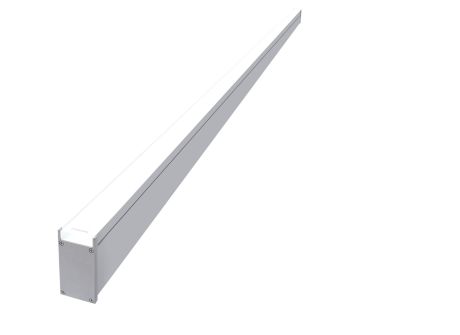

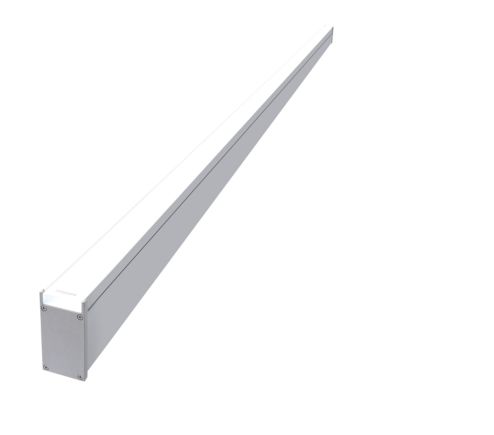

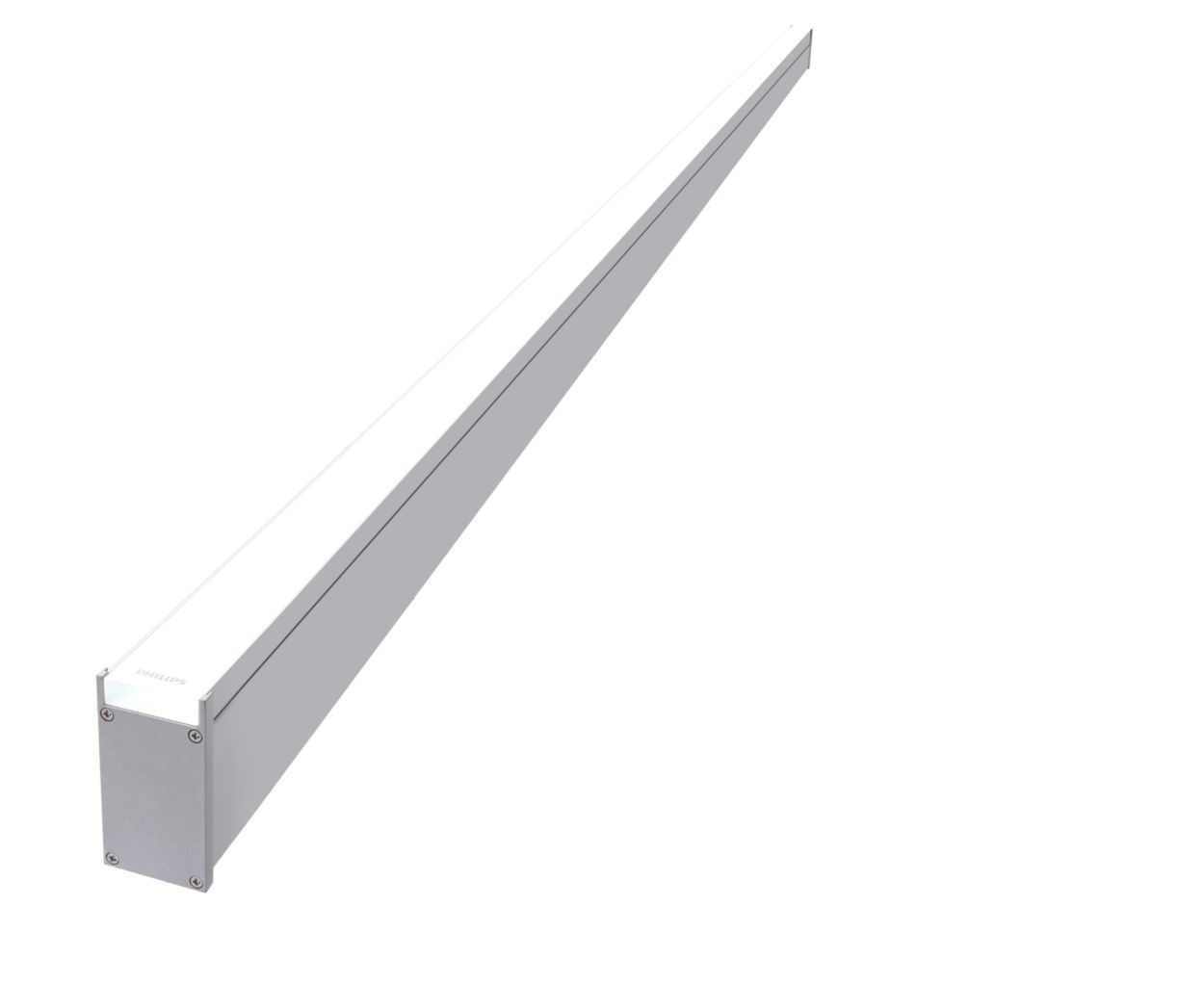

BBP412 LED RGB 36W 24V L1200 GC

Specifications Show all

General information

Light source colour	Red, green and blue
Light source replaceable	No
Driver included	Yes
Optical cover/lens type	G  [ Glass]
Control interface	-
Connection	Screw connection block 5-pole
Cable	Cable 0.3 m with connector 5-pole
Protection class IEC	Safety class III (III)
Flammability mark	NO  [ -]
CE mark	-
Light source engine type	LED
Serviceability class	Class C, luminaire without serviceable parts, not serviceable

Light technical

Standard tilt angle post-top

-

Operating and electrical

Input Voltage	24 DC V
Input frequency	- Hz
Power factor (min.)	-
Power factor (nom.)	-

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminum
Optic material	Glass
Optical cover/lens material	Polycarbonate
Mounting device	Recessed mounting box square
Optical cover/lens finish	Frosted
Overall length	1200 mm
Overall width	48 mm
Overall height	108 mm
Colour	Aluminum and gray
Dimensions (height x width x depth)	108 x 48 x 1200 mm

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	580 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	16 lm/W
Init. Corr. Colour Temperature	-
Init. Colour rendering index	-
Initial input power	36 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	911401755452
Order product name	BBP412 LED RGB 36W 24V L1200 GC
Order code	01755452
SAP numerator – quantity per pack	1
Numerator – packs per outer box	2
SAP material	911401755452
Net Weight (Piece)	3.100 kg
