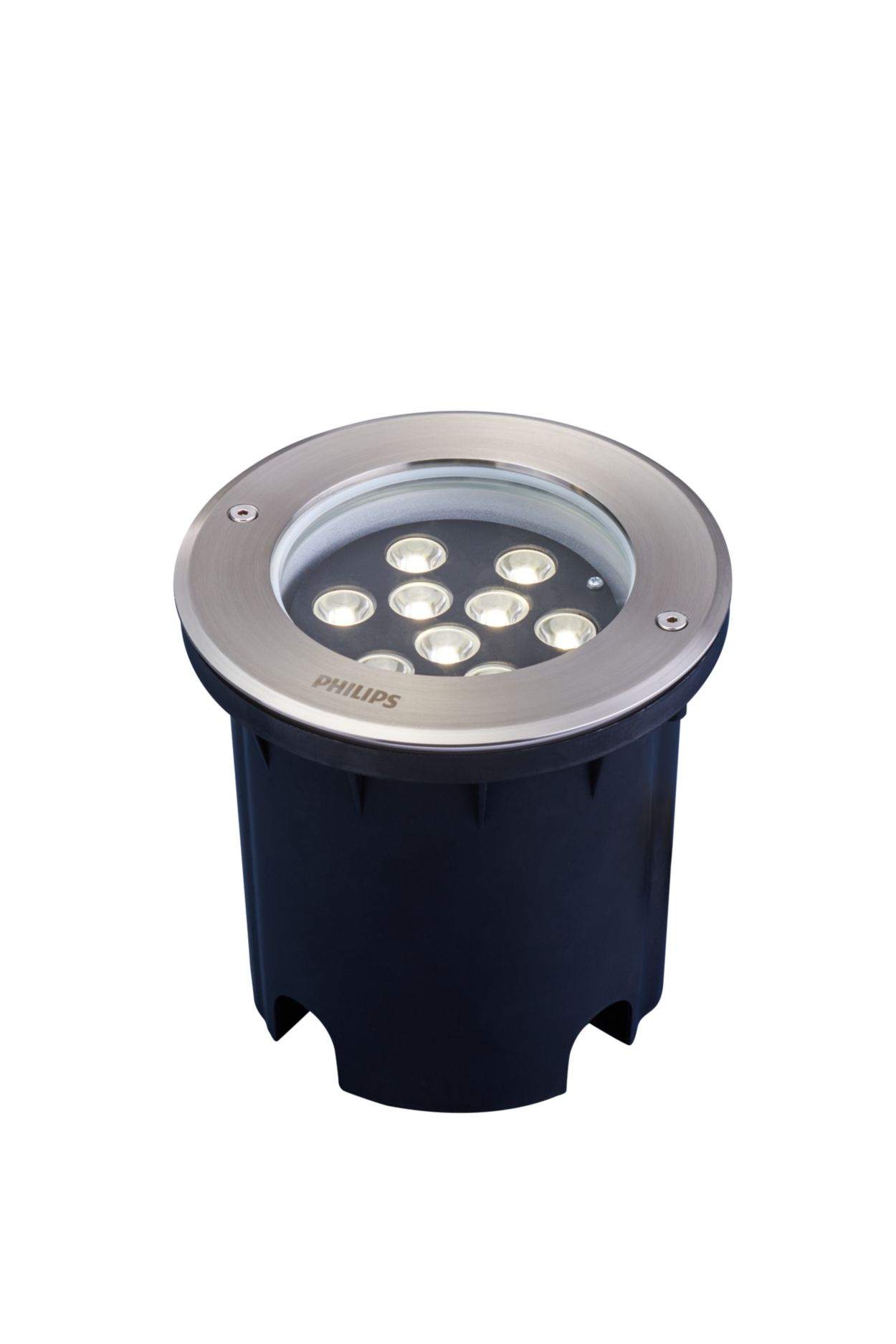

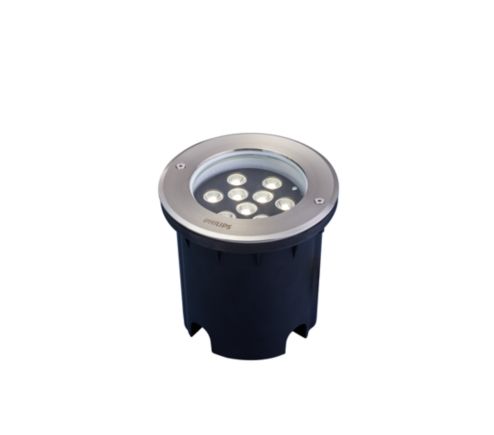

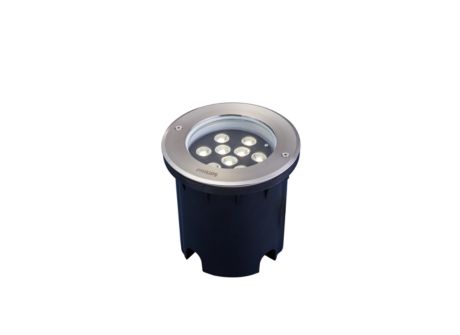

BBP343 LED1800/WW 18W 20D 100-240V

Specifications Show all

General information

Light source colour	730 warm white
Light source replaceable	No
Driver included	Yes
Optical cover/lens type	G  [ Glass]
Control interface	-
Connection	SI  [ Screw connection block]
Cable	Cable 0.3 m with connector 3-pole
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	-
Light source engine type	LED
Serviceability class	Class C, luminaire without serviceable parts, not serviceable

Light technical

Standard tilt angle post-top

-

Operating and electrical

Input Voltage	100 to 240 V
Input frequency	50 or 60 Hz
Power factor (min.)	0.9

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminum
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	RMR  [ Recessed mounting box round]
Optical cover/lens finish	Clear
Overall height	152 mm
Overall diameter	180 mm
Colour	Steel

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	1800 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	100 lm/W
Init. Corr. Colour Temperature	3000 K
Init. Colour rendering index	>70
Initial chromaticity	(0.434, 0.403)SDCM ≤ 5
Initial input power	18 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	692382864138299
Order product name	BBP343 LED1800/WW 18W 20D 100-240V
EAN/UPC – product	6923828641382
Order code	64138299
SAP numerator – quantity per pack	1
Numerator – packs per outer box	4
SAP material	911401755362
Net Weight (Piece)	2.070 kg
