| Number of light sources | 1
[ 1 pc] |
|
| Lamp family code | LED-MD
[ LED Multi-die] |
|
| Light source colour | 740 neutral white
|
|
| Light source replaceable | No
|
|
| Number of gear units | 1 unit
|
|
| Gear | EBS
[ Electronic Standard] |
|
| Driver/power unit/transformer | PSR-CLO
[ Power supply unit regulating with constant light output] |
|
| Driver included | Yes
|
|
| Optical cover/lens type | GT
[ Tempered glass] |
|
| Luminaire light beam spread | 40°
|
|
| Control interface | -
|
|
| Connection | CU3
[ Connection unit 3-pole] |
|
| Cable | -
|
|
| Protection class IEC | Safety class II (II)
|
|
| Colour choice | Dark gray 10714
|
|
| Glow-wire test | 60030
[ Temperature 600 °C, duration 30 s] |
|
| Flammability mark | NO
[ -] |
|
| CE mark | CE mark
|
|
| ENEC mark | -
|
|
| UL mark | -
|
|
| Warranty period | 1 years
|
|
| Outdoor optic type | Symmetrical
|
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
* At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Constant light output | No
|
|
| Spare parts available | Yes
|
|
| Number of products on MCB | 1
|
|
| Lifecycle services | Maintenance services
|
|
| Photobiological risk | Risk group 0
|
|
| Product recyclability | 95%
|
|
| WEEE mark | -
|
|
| LED engine type | LED
|
|

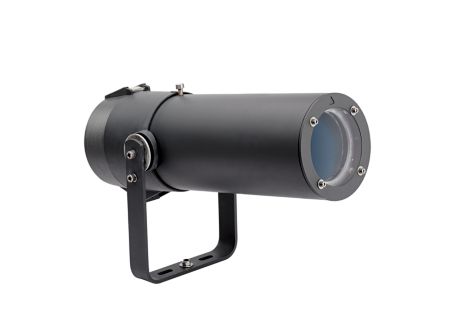

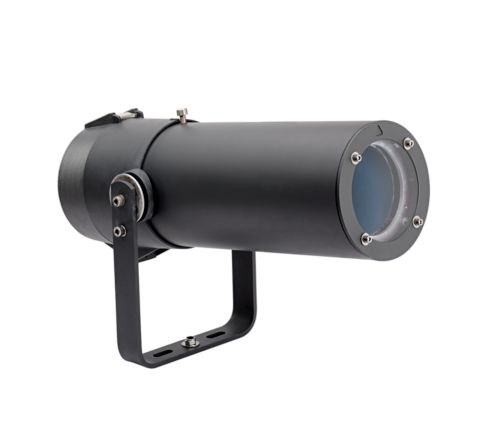

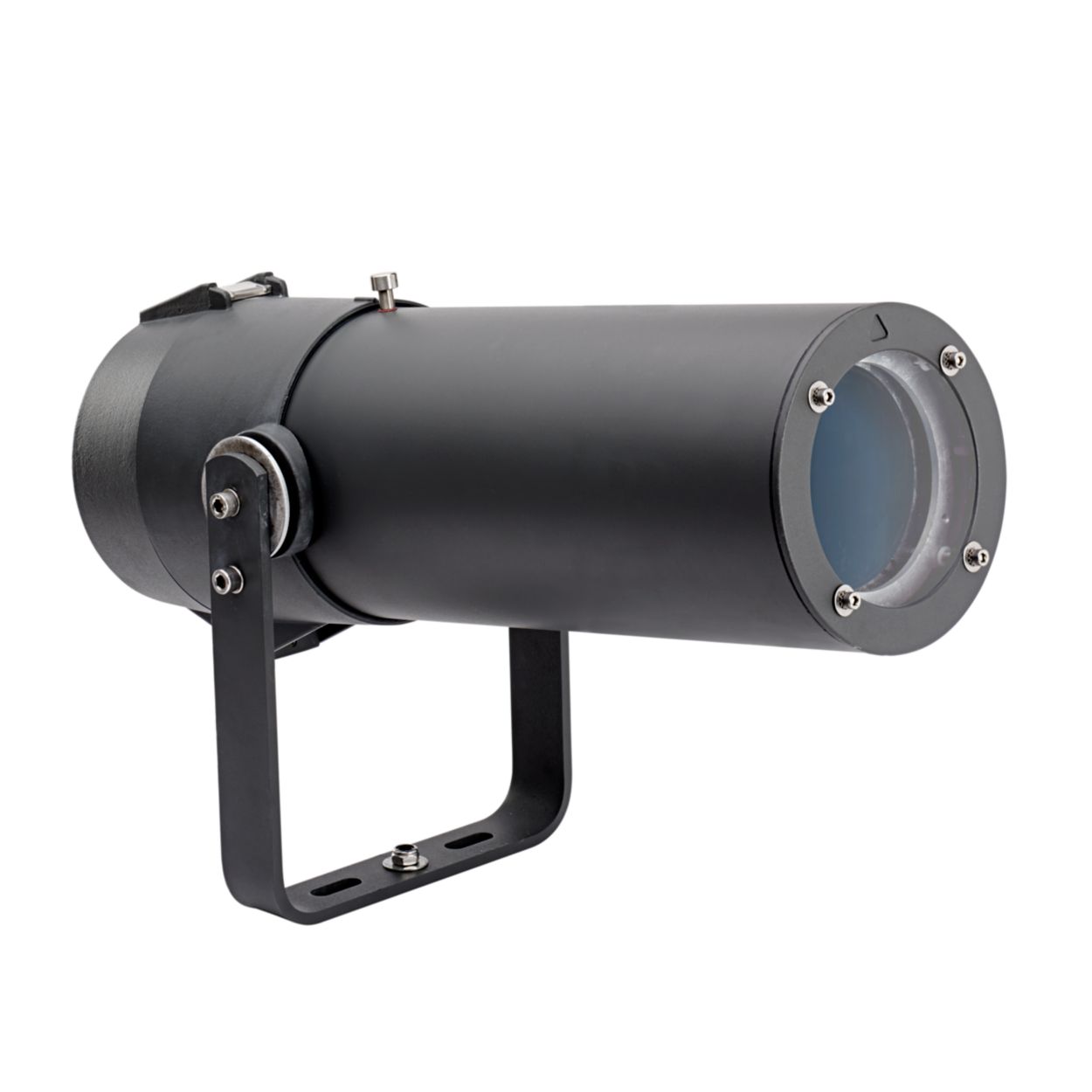

| Product Family Code | BCP608
[ PROFLOOD LED] |
| Upward light output ratio | 0.67
|
| Initial luminous flux at 15°C | 3680
lm
|
| Initial luminous flux at 25°C | 3680
lm
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220/240
V
|
| Input frequency | 50 or 60
Hz
|
| Inrush current | 20
A
|
| Inrush time | 0.275
ms
|
| Power factor (min.) | 0.9
|
| Power factor (nom.) | 0.98
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | Glass
|
| Optic material | Glass
|
| Optical cover/lens material | Glass
|
| Fixation material | Steel
|
| Mounting device | MBA
[ Mounting bracket adjustable] |
| Optical cover/lens shape | Curved
|
| Optical cover/lens finish | Clear
|
| Torque | 34
|
| Overall length | 674
mm
|
| Overall width | 294
mm
|
| Overall height | 400
mm
|
| Effective projected area | 0.12
m²
|
| Colour | Gray
|
| Dimensions (height x width x depth) | 400 x 294 x 674 mm (15.7 x 11.6 x 26.5 in)
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK06
[ 1 J] |
| Surge protection (common/differential) | Luminaire surge protection level up to 4 kV differential mode and 4 kV common mode
|
| Initial luminous flux | 3750
lm
|
| Luminous flux tolerance | +/-5%
|
| Initial LED luminaire efficacy | 75
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | >70
|
| Initial chromaticity | (0.3862,0.3758) 4-step
|
| Initial input power | 50
W
|
| Power consumption tolerance | +/-5%
|
| Control gear failure rate at median useful life 50,000 h | 5
%
|
| Lumen maintenance at median useful life* 50,000 h | L80
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871869692981000
|
| Order product name | BCP608 LED55/740 II EB GO-SH GR10714 MSP
|
| EAN/UPC – product | 8718696929810
|
| Order code | 92981000
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910505017286
|
| Net weight (piece) | 16.600
kg
|
