| Lamp type | SDW-TG
|
| Number of lamps | 1
piece/unit
|
| Suitable for outdoor use | No
|
| Number of products on MCB (16 A type B) (nom.) | 14
|
| Automatic restart | Yes
|
| Input Voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Minimum mains voltage operation (min.) | 180
V
|
| Operating frequency (nom.) | 0.14
kHz
|
| Power factor 100% load (nom.) | 0.95
|
| Ignition voltage (max.) | 4.0
kV
|
| Ignition voltage (min.) | 3.3
kV
|
| Ignition switch-off time (nom.) | 6
min
|
| Mains voltage performance (AC) | -10%-+6%
|
| Mains voltage safety (AC) | -18%-+10%
|
| Inrush current width | 0.50
ms
|
| Constant wattage deviation | -3%/+3%
|
| Power losses (nom.) | 9
W
|
| Inrush current peak (max.) | 33
A
|
| Efficiency at full load [%] | 91.7
%
|
| Cable length from device to lamp | 2
m
|
| Wire strip length | 10.0-11.0
mm
|
| Ballast contact wire cross section | 0.50-2.50
mm²
|
| Connector type | Insert
|
| Rated ballast-lamp power | 100 W
|
| T-ambient (max.) | 60
°C
|
| T-ambient (min.) | -20
°C
|
| T storage (max.) | 80
°C
|
| T storage (min.) | -25
°C
|
| T-case lifetime (nom.) | 75
°C
|
| T-Case maximum (max.) | 85
°C
|
| Housing | /S
|
| Active temperature protection | Yes
|
||
| EMI 9 kHz ... 300 MHz | CISPR 15 ed 7.2
|
||
| Vibration standard | IEC68-2-6 F c
|
||
| Bumps standard | IEC 68-2-29 Eb
|
||
| Approval marks | CE marking
|
ENEC certificate
|
CB Certificate
|
| Humming and noise level | Inaudible
|
| Full product code | 872790088754900
|

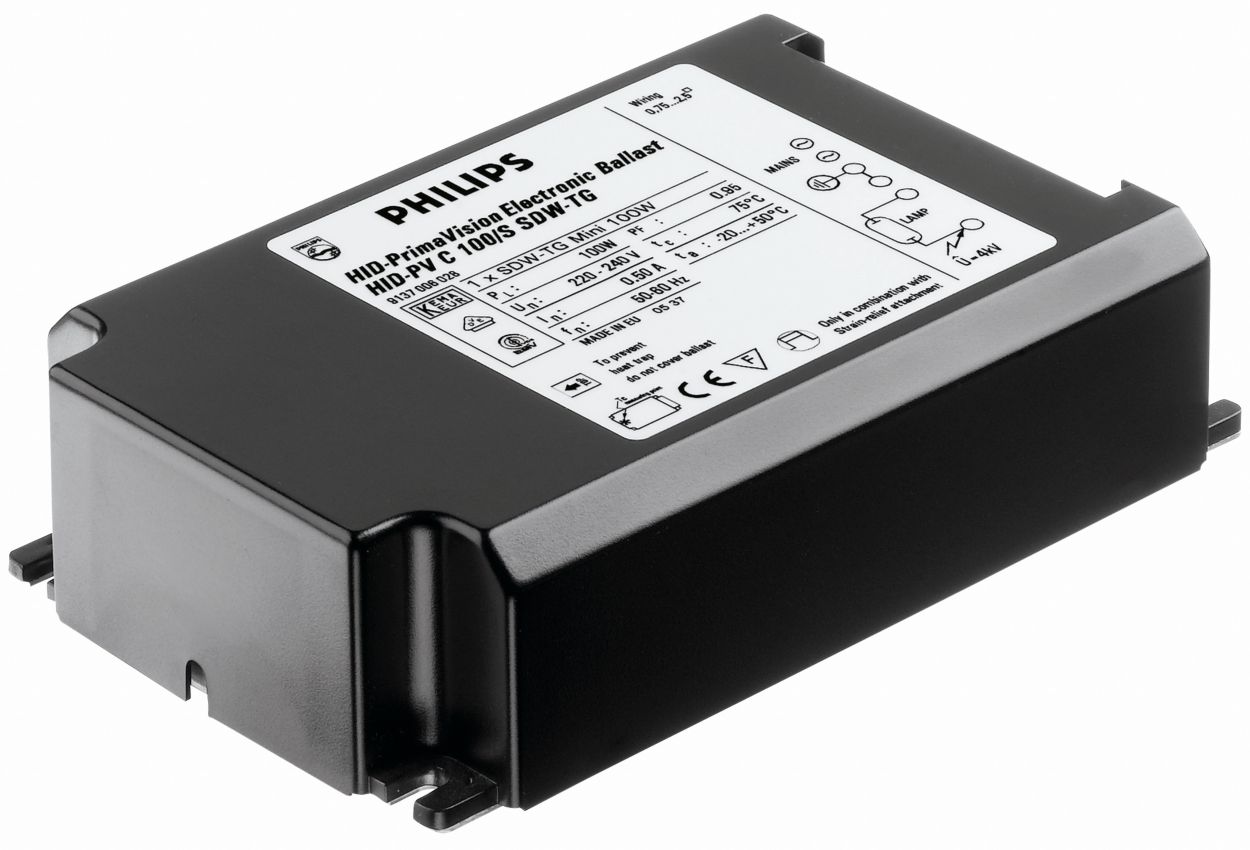

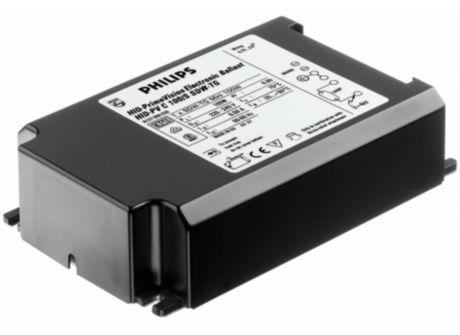

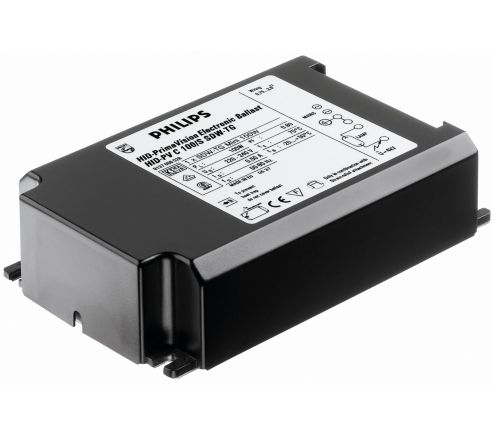

| Order product name | HID-PV 100 /S SDW-TG 220-240V 50/60Hz
|
| EAN/UPC – product | 8711500881861
|
| Order code | 88754900
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 10
|
| SAP material | 913700656566
|
| Net Weight (Piece) | 0.350
kg
|
