| Application code | III
|
| Type version | IDC
|
| Lamp type | TL-D
|
| Number of lamps | 3/4
piece/unit
|
| Number of products on MCB (16 A type B) (nom.) | 28
|
| Automatic restart | Yes
|
| Input Voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Operating frequency (nom.) | 45
kHz
|
| Ignition method | Programmed Start
|
| Crest factor (max.) | 1.7
|
| Power factor 100% load (nom.) | 0.99
|
| Ignition time (max.) | 0.9
s
|
| Mains voltage performance (AC) | -8%-+6%
|
| Mains voltage safety (AC) | -10%-+10%
|
| Earth leakage current (nom.) | 0.5
mA
|
| Inrush current width | 0.25
ms
|
| Constant wattage deviation | -2%/+2%
|
| Ballast factor (nom.) | 1
|
| Power factor (nom.) | 0.99
|
| Power losses (nom.) | 4-5
W
|
| Inrush current peak (max.) | 24
A
|
| Efficiency at full load [%] | 91.3
%
|
| Connector type input terminals | WAGO 251 universal connector
[ Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| Cable capacity output wires mutual (nom.) | 200
pF
|
| Connector type output terminals | WAGO 251 universal connector
[ Suitable for both automatic wiring (ALF and ADS) and manual wiring] |
| Cable length hot-wiring | 0.75
m
|
| Wire strip length | 8.0-9.0
mm
|
| Dual fixture master/slave | Not applicable
[ Master/Slave oper. not applicable] |
| Input terminal cross section | 0.50-1.00
mm²
|
| Output terminal cross section | 0.50-1.00
mm²
|
| Cable capacity output wires to earth (nom.) | 200
pF
|
| Rated ballast-lamp power | 18 W
|
| Rated lamp power on TL-D | 18
W
|
| System power on TL-D | 56.5W@3x18W;72.5W@4x18
W
|
| Lamp power on TL-D | 52.5W@3x18W; 67.5W@4x18
W
|
| Power loss on TL-D | 4W@3x18W; 5W@4x18
W
|
| T-ambient (max.) | 60
°C
|
| T-ambient (min.) | -25
°C
|
| T storage (max.) | 50
°C
|
| T storage (min.) | -40
°C
|
| T-case lifetime (nom.) | 80
°C
|
| T-Case maximum (max.) | 80
°C
|
| T-Ignition (max.) | 60
°C
|
| T-Ignition (min.) | -25
°C
|
| Housing | L 280x40x28
|
| Nominal light output after 60 seconds | 100% of EBLF
|
| Battery voltage lamp ignition | 186-275
V
|
| Normal operating voltage (DC) | 220-240
V
|
| Battery voltage lamp operation | 186-275
|
| Battery voltage guaranteed operation | 176-275
V
|
| Battery voltage guaranteed ignition | 186-275
V
|
| Emergency ballast lumen factor (EBLF) (nom.) | 100
%
|
| Nominal light output after 5 seconds | 50% of EBLF
|
| Energy efficiency index | A2 BAT
|
||
| IP classification | IP 20
[ Ingress Protection 20] |
||
| EMI 9 kHz ... 30 MHz | EN55015
|
||
| EMI 30 MHz ... 1,000 MHz | EN55022 level B
|
||
| Safety standard | IEC 61347-2-3
|
||
| Performance standard | IEC 60929
|
||
| Quality standard | ISO 9000:2000
|
||
| Environmental standard | ISO 14001
|
||
| Harmonic current emission standard | IEC 61000-3-2
|
||
| EMC immunity standard | IEC 61547
|
||
| Vibration standard | IEC68-2-6 F c
|
||
| Bumps standard | IEC 68-2-29 Eb
|
||
| Humidity standard | EN 61347-2-3 clause 11
|
||
| Approval marks | CE marking
|
ENEC certificate
|
VDE-EMV certificate
|
| Temperature marking | Yes
|
||
| Emergency standard | IEC 60598-2-22
|
||
| Humming and noise level | < 30 dB(A)
|
| Full product code | 872790091162600
|

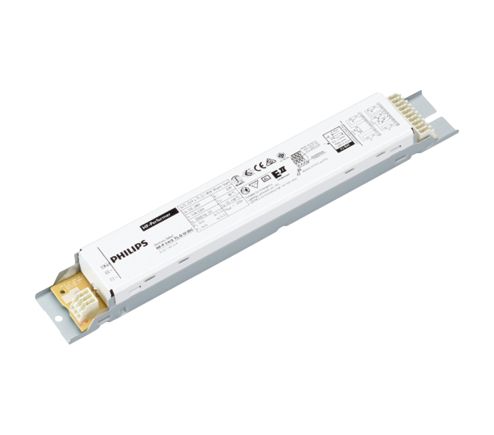

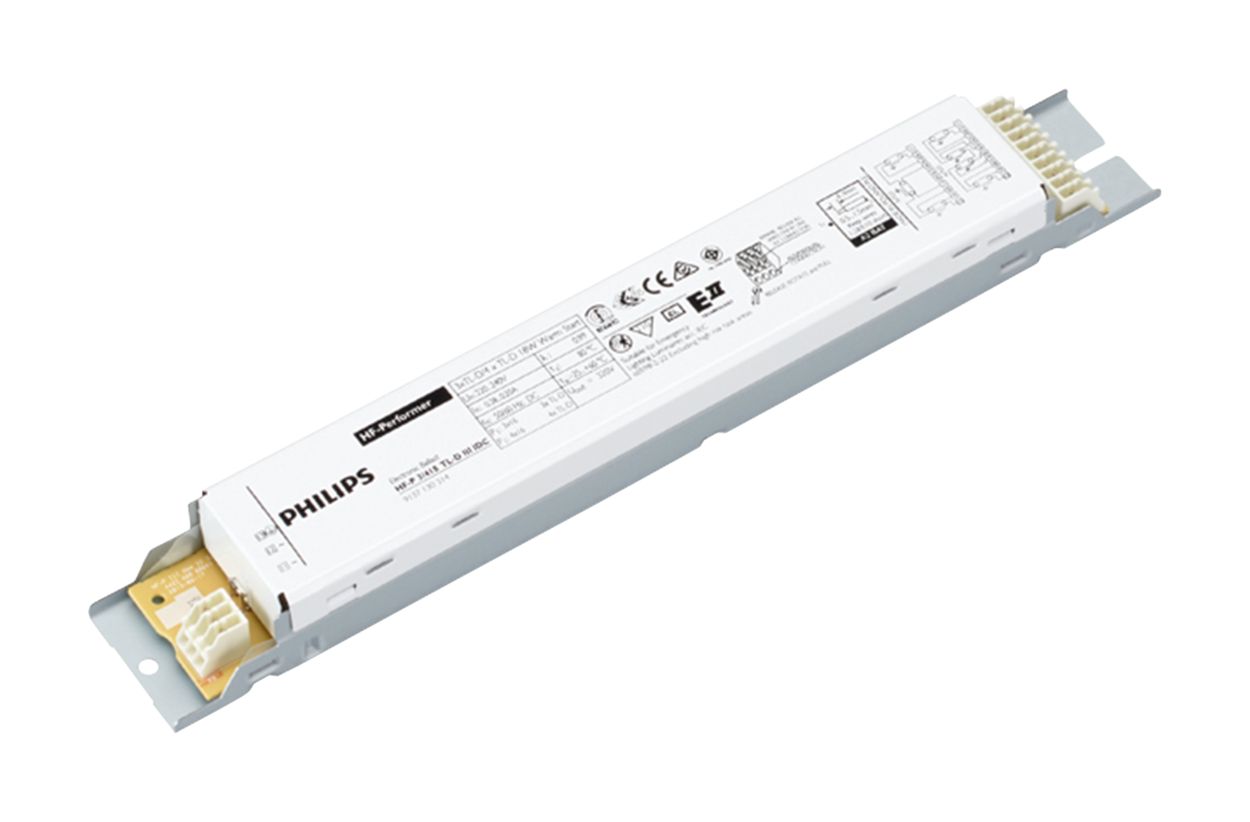

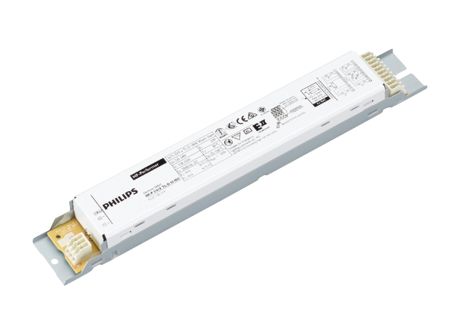

| Order product name | HF-P 3/418 TL-D III 220-240V 50/60Hz IDC
|
| EAN/UPC – product | 8711500999627
|
| Order code | 91162600
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 10
|
| SAP material | 913713031466
|
| Net Weight (Piece) | 0.250
kg
|
