| Lamp type | TL5
|
| Number of lamps | 1-3
piece/unit
|
| Suitable for outdoor use | No
|
| Number of products on MCB (16 A type B) (max.) | 30
|
| Automatic restart | Yes
|
| Input Voltage | 220-240
V
|
| Input frequency | 50 or 60
Hz
|
| Operating frequency (nom.) | 42-60
kHz
|
| Ignition method | Warm Start
|
| Crest factor (max.) | 1.7
|
| Ignition time (nom.) | 2.0
s
|
| Mains voltage performance (AC) | -10%-+10%
|
| Mains voltage safety (AC) | 198...264V
|
| Earth leakage current (max.) | 0.5
mA
|
| Inrush current width | 0.224
ms
|
| Ballast factor (nom.) | 1
|
| Power factor (max.) | 0.98
|
| Power factor (min.) | 0.90
|
| Input power (max.) | 60.1
W
|
| Input power (min.) | 16.6
W
|
| Power losses (max.) | 4.8
W
|
| Power losses (nom.) | 2.1
W
|
| Inrush current peak (max.) | 17
A
|
| Rated lamp power | 14-28
W
|
| Connector type input terminals | Insert
|
| Cable capacity output wires mutual (max.) | 150
pF
|
| Connector type output terminals | Insert
|
| Cable length hot-wiring | 0.75
m
|
| Wire strip length | 7.5-8.5
mm
|
| Input terminal cross section | 0.50-1.50
mm²
|
| Output terminal cross section | 0.50-1.50
mm²
|
| Cable capacity output wires to earth (max.) | 150
pF
|
| Connector type | Insert
|
| Rated lamp power on TL5 | 14-28
W
|
| System power on TL5 | 16.6-60.1
W
|
| Lamp power on TL5 | 14.5-27.8
W
|
| Power loss on TL5 | 2.1-4.8
W
|
| T-ambient (max.) | 50
°C
|
| T case lifetime (max.) | 75
°C
|
| T-Case maximum (max.) | 75
°C
|
| T-Ignition (max.) | 50
°C
|
| T-Ignition (min.) | -10
°C
|
| Housing material | Plastic
|
| Housing | L210x30x26mm
|
| Battery voltage lamp ignition | 165-253
V
|
| Energy efficiency index | A2
|
|||||||
| IP classification | IP 20
[ Ingress Protection 20] |
|||||||
| EMI 9 kHz ... 30 MHz | EN55015
|
|||||||
| EMI 30 MHz ... 1,000 MHz | EN 55015
|
|||||||
| Environmental standard | ISO 14001
|
|||||||
| Vibration standard | IEC 60068-2-29 FB
|
|||||||
| Bumps standard | Not specified
|
|||||||
| Approval marks | CB Certificate
|
CCC certificate
|
TISI marking
|
PSB certification
|
RCM compliance
|
SNI Certificate
|
CS compliance
|
IRAM compliance
|
| Temperature marking | Yes
|
|||||||
| Humming and noise level | < 30 dB(A)
|
| Full product code | 694793913355000
|

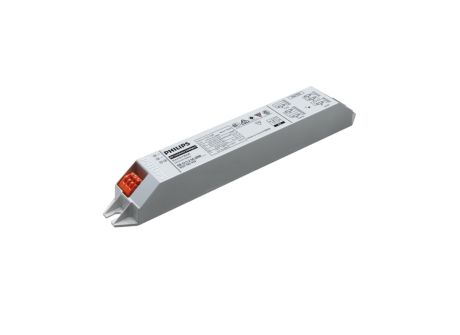

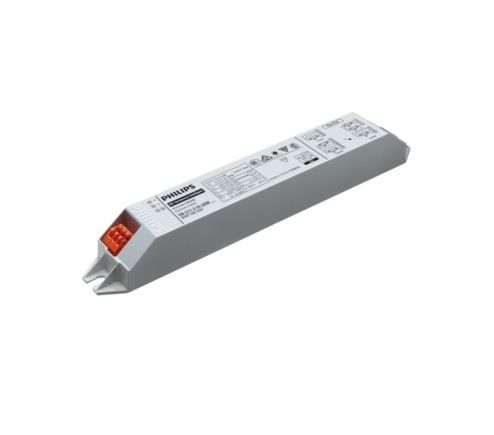

| Order product name | EB-Ci 1-2 14-28W 220-240V 50/60 Hz
|
| EAN/UPC – product | 6947939133550
|
| Order code | 13355000
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 30
|
| SAP material | 913713043280
|
| Net Weight (Piece) | 0.080
kg
|
