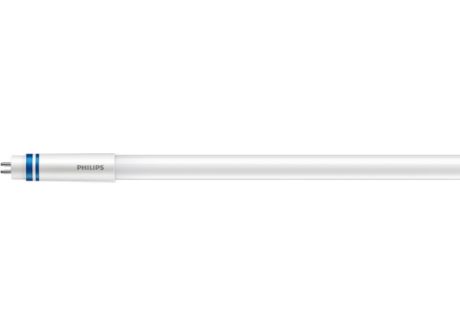

Master LEDtube HF 600mm HE 8W 830 T5

Specifications Show all

General information

Cap base	G5  [ G5]
CE mark	Yes
EU RoHS compliant	Yes
Nominal lifetime (nom.)	60000 h
Switching cycle	50000
	Sphere
Tier	MASTER

Light technical

Colour Code	830  [ CCT of 3,000 K]
Beam Angle (Nom)	200 °
Luminous flux (nom.)	1000 lm
Colour designation	White (WH)
Correlated Colour Temperature (Nom)	3000 K
Luminous efficacy (rated) (nom.)	125.00 lm/W
Colour consistency	<6
Colour rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and electrical

Input frequency	30 K to 100 K Hz
Power (Rated) (Nom)	8 W
Lamp current (max.)	350 mA
Lamp current (min.)	150 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.92
Voltage (Nom)	40-70 V

Temperature

T-ambient (max.)	45 °C
T-ambient (min.)	-20 °C
T-storage (range)	-40°C to 65°C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	65 °C

Controls and dimming

Dimmable

Yes – Check ballast compatibility

Mechanical and housing

Lamp Finish	Frosted
Bulb material	Glass
Product length	600 mm
Bulb shape	Tube, double-ended

Approval and application

Energy Efficiency Class	E
Energy-saving product	Yes
Approval marks	RoHS compliance	TUV	CE marking	KEMA Keur certificate
Energy consumption kWh/1,000 hours	8 kWh
	406183

Product data

Full product code	871869674323200
Order product name	Master LEDtube HF 600mm HE 8W 830 T5
EAN/UPC – product	8718696743232
Order code	74323200
SAP numerator – quantity per pack	1
Numerator – packs per outer box	10
SAP material	929001390702
Net Weight (Piece)	0.080 kg
