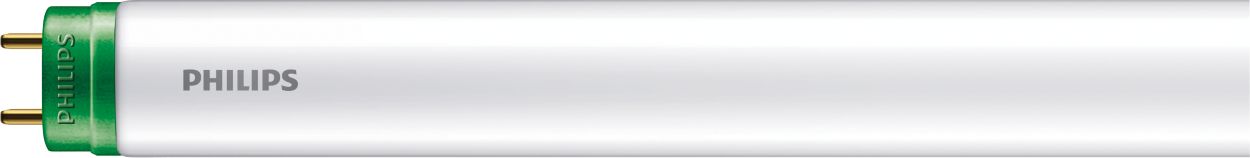

LEDtube 1200mm 16W 765 T8 AP I G

Specifications Show all

General information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
EU RoHS compliant	Yes
Nominal lifetime (nom.)	15000 h
Switching cycle	50000

Light technical

Colour Code	765  [ CCT of 6,500 K]
Beam Angle (Nom)	240 °
Luminous flux (nom.)	1600 lm
Colour designation	Cool Daylight
Correlated Colour Temperature (Nom)	6500 K
Luminous efficacy (rated) (nom.)	100.00 lm/W
Colour consistency	<7
Colour rendering index (nom.)	73
LLMF at end of nominal lifetime (nom.)	70 %

Operating and electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	16 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.5
Voltage (Nom)	220-240 V

Temperature

T-ambient (max.)	45 °C
T-ambient (min.)	-20 °C
T-storage (range)	-40°C to 65°C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	60 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Product length	1200 mm
Bulb shape	Tube, double-ended

Approval and application

Energy-saving product	Yes
Suitable for accent lighting	No
Approval marks	RoHS compliance	KEMA Keur certificate
Energy consumption kWh/1,000 hours	16 kWh

Product data

Full product code	871869659998300
Order product name	LEDtube 1200mm 16W 765 T8 AP I G
EAN/UPC – product	8718696599983
Order code	59998300
SAP numerator – quantity per pack	1
Numerator – packs per outer box	20
SAP material	929001184638
Net Weight (Piece)	0.172 kg
