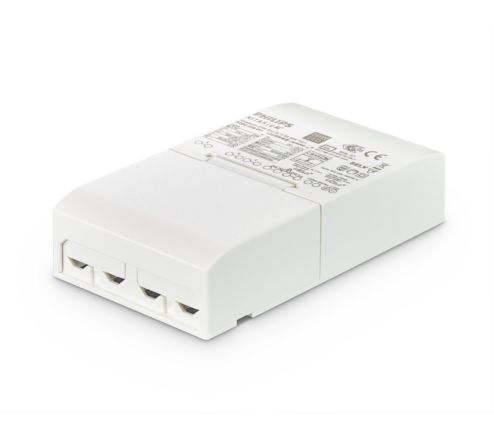

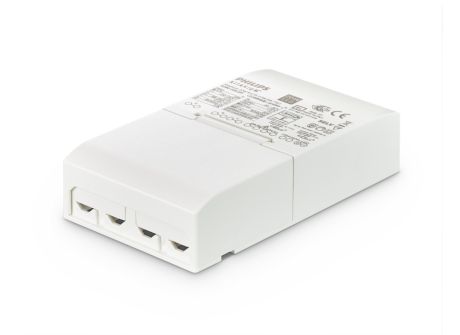

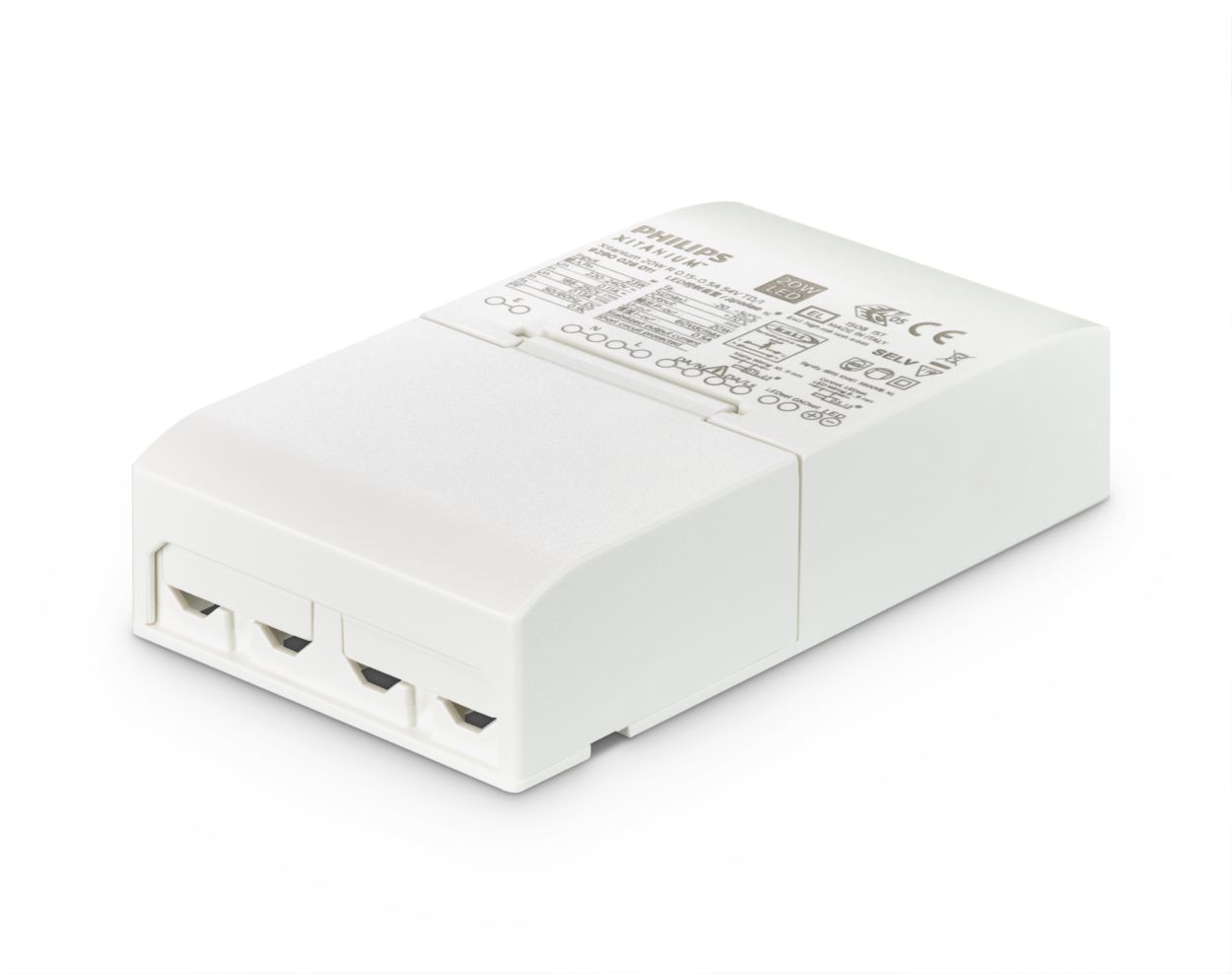

Xitanium 40W R 0.3-1.05A 54V TD/I

Specifications Show all

General information

Protection class IEC

Safety class I/II

Operating and electrical

Output current ripple (max.)	4 %
Output current (max.)	1050 mA
Open circuit voltage (DC) (max.)	60 V
Output power (max.)	40 W
Output power (min)	13 W
Output current (min)	300 mA
Output voltage (max)	54 V
Output voltage (min)	24 V

System characteristics

Central DC Operation	Yes
YellowDot ready	No

Temperature

T case lifetime (max.)	70 °C
T-Case maximum (max.)	80 °C

Controls and dimming

Dimmable

DALI

Mechanical and housing

Product length	127 mm
Overall length	127.6 mm
Overall width	74 mm
Overall height	30 mm

Approval and application

IP classification	IP 20  [ Ingress Protection 20]
Isolation classification	Class I and Class II
Approval marks	CE marking	CB Certificate	ENEC certificate	CCC certificate	RCM compliance
Output current set options	DALI, LEDset

Product data

Full product code	871951425108300
Order product name	Xitanium 40W R 0.3-1.05A 54V TD/I
EAN/UPC – product	8719514251083
Order code	25108300
SAP numerator – quantity per pack	1
Numerator – packs per outer box	18
SAP material	929002801206
