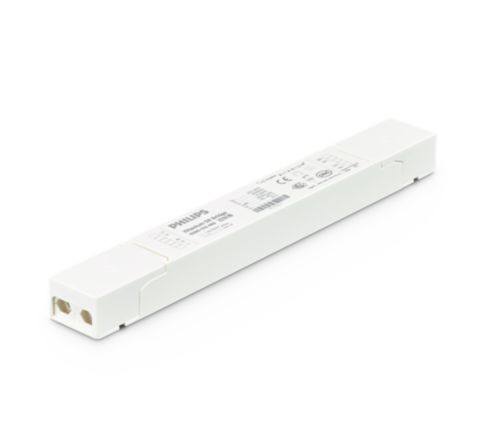

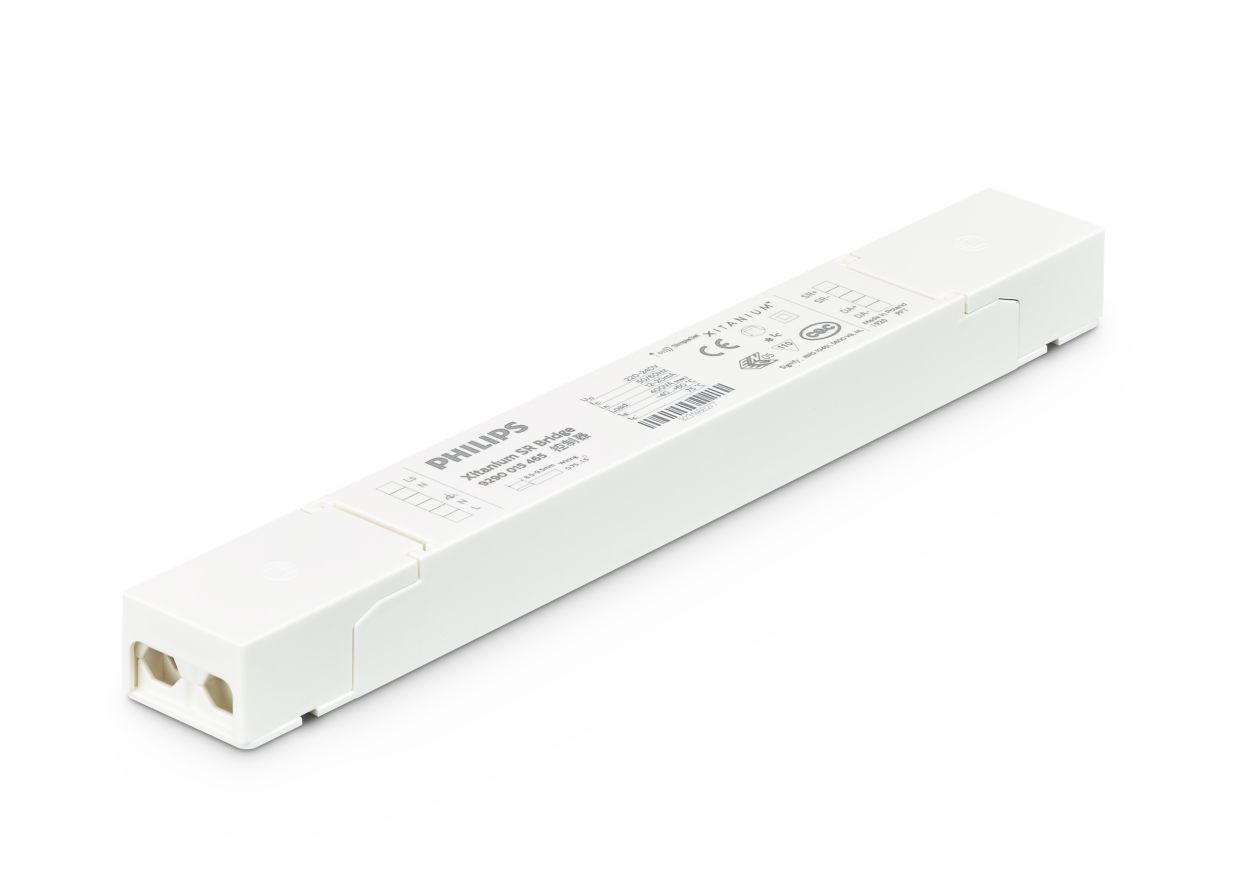

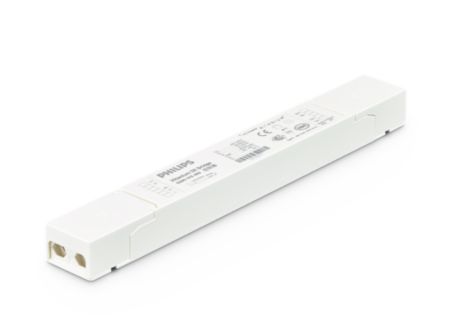

Xitanium SR Bridge independent

Specifications Show all

General information

Protection class IEC	Safety class I/II
Constant light output	No
Nominal lifetime (nom.)	100000 h

Operating and electrical

Input frequency	50 to 60 Hz
Total harmonic distortion IEC (max.)	20 %
Output current ripple (max.)	4 %
Standby power consumption (max.)	0.5 W
Power factor (min.)	0.9
Open circuit voltage (DC) (max.)	0 V
Protection level up (L-N) at 5 kA (max.)	2 kV
Protection level up (LN earth) at 5 kA (max.)	4 kV
Inrush current peak (max.)	12 A
Output power (max.)	0 W
Inrush current width to 50% of peak	200 µs
Power factor 100% load (max.)	0.9
Energy metering	Yes
Constant current (CC)	True
Constant voltage (CV)	False
Diagnostics	False
Output power (min)	0 W
Output voltage (max)	0 V
Output voltage (min)	0 V

Wiring

Hot-wiring	no
Input wire strip length	9 mm to 10 mm
Input wire cross section (max.)	1.5 mm²
Input wire cross section (min.)	0.2 mm²

System characteristics

Central DC Operation	No
YellowDot ready	No

Temperature

T-ambient (max.)	60 °C
T-ambient (min.)	-40 °C
T case lifetime (max.)	65 °C
T-Case maximum (max.)	75 °C

Controls and dimming

Dimmable	No
D4i compliant	No
DynaDimmer	No

Mechanical and housing

Product length	204 mm
Overall length	204 mm
Overall width	30 mm
Overall height	21 mm

Approval and application

IP classification	IP 20  [ Ingress Protection 20]
Isolation classification	No
Open circuit protection	Protected
Approval marks	CCC certificate	CE marking	ENEC certificate	RCM compliance	REACH compliance	RoHS compliance
Corridor mode	False
Output current set options	No

Product data

Full product code	871869671984800
Order product name	Xitanium SR Bridge independent
EAN/UPC – product	8718696719848
Order code	71984800
SAP numerator – quantity per pack	1
Numerator – packs per outer box	36
SAP material	929001546506
Net Weight (Piece)	0.102 kg
