| Lamp type | LV Halogen
|
| Number of products on MCB (16 A type B) (max.) | 13
|
| Automatic restart | Yes
|
| Input Voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Operating frequency (nom.) | 45-66
kHz
|
| Power factor 100% load (nom.) | 0.95
|
| Ignition time (nom.) | 0.8
s
|
| Mains voltage performance (AC) | 202-254V-8%-+6%
|
| Mains voltage safety (AC) | -8%-+6%
|
| Inrush current width | 0.33
ms
|
| Power losses (nom.) | 10
W
|
| Inrush current peak (max.) | 28
A
|
| Output voltage | 24
V
|
| Connector type input terminals | Screw
|
| Cable capacity wires device to lamp (nom.) | 120
nF
|
| Colour input terminals | Green
|
| Colour output terminals | Green
|
| Connector type output terminals | Screw
|
| Cable length from device to lamp | 1.0
m
|
| Wire strip length | 6.0-8.0
mm
|
| Input terminal cross section | 0.75-2.50
mm²
|
| Output terminal cross section | 0.75-2.50
mm²
|
| Cable capacity output wires to earth (nom.) | 120
pF
|
| Rated ballast-lamp power | 60 W
|
| T-ambient (max.) | 50
°C
|
| T-ambient (min.) | -20
°C
|
| T storage (max.) | 80
°C
|
| T storage (min.) | -40
°C
|
| T-Case maximum (max.) | 85
°C
|
| Approval marks | CE marking
|
RoHS Compliant
|
CCC certificate
|
SELV
|
ENEC certificate
|
| Full product code | 697013372909000
|

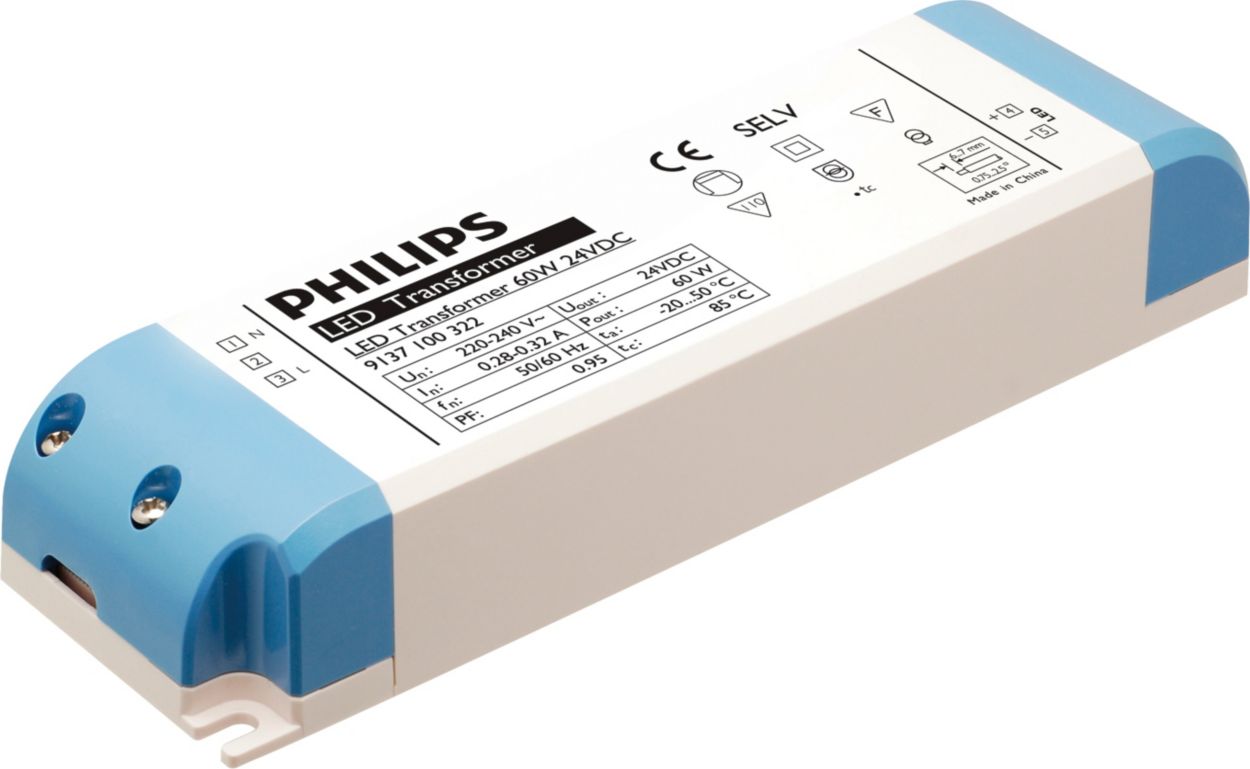

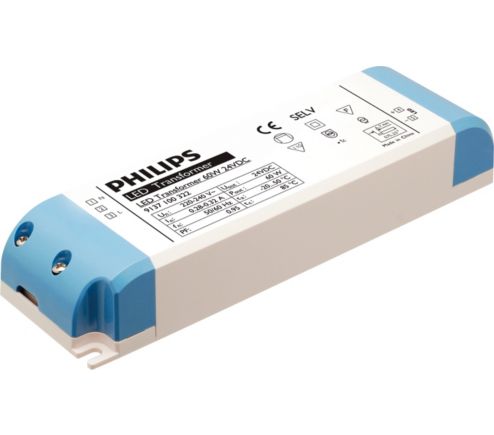

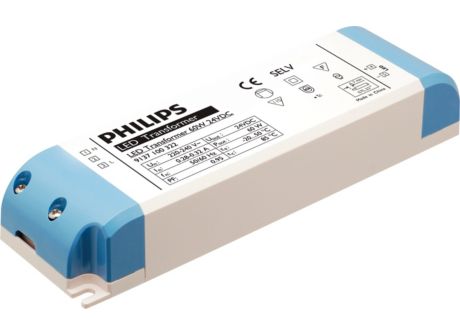

| Order product name | LED Transformer 60W 24VDC
|
| EAN/UPC – product | 6970133729090
|
| Order code | 72909000
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 20
|
| SAP material | 913710032267
|
| Net Weight (Piece) | 280.000
g
|
