    • SlimBlend Square – High performance, advanced control

      RC400B LED36S/840 PSD W60L60 CPC PIP
      LED
      RC400B LED36S/840 PSD W60L60 CPC PIP

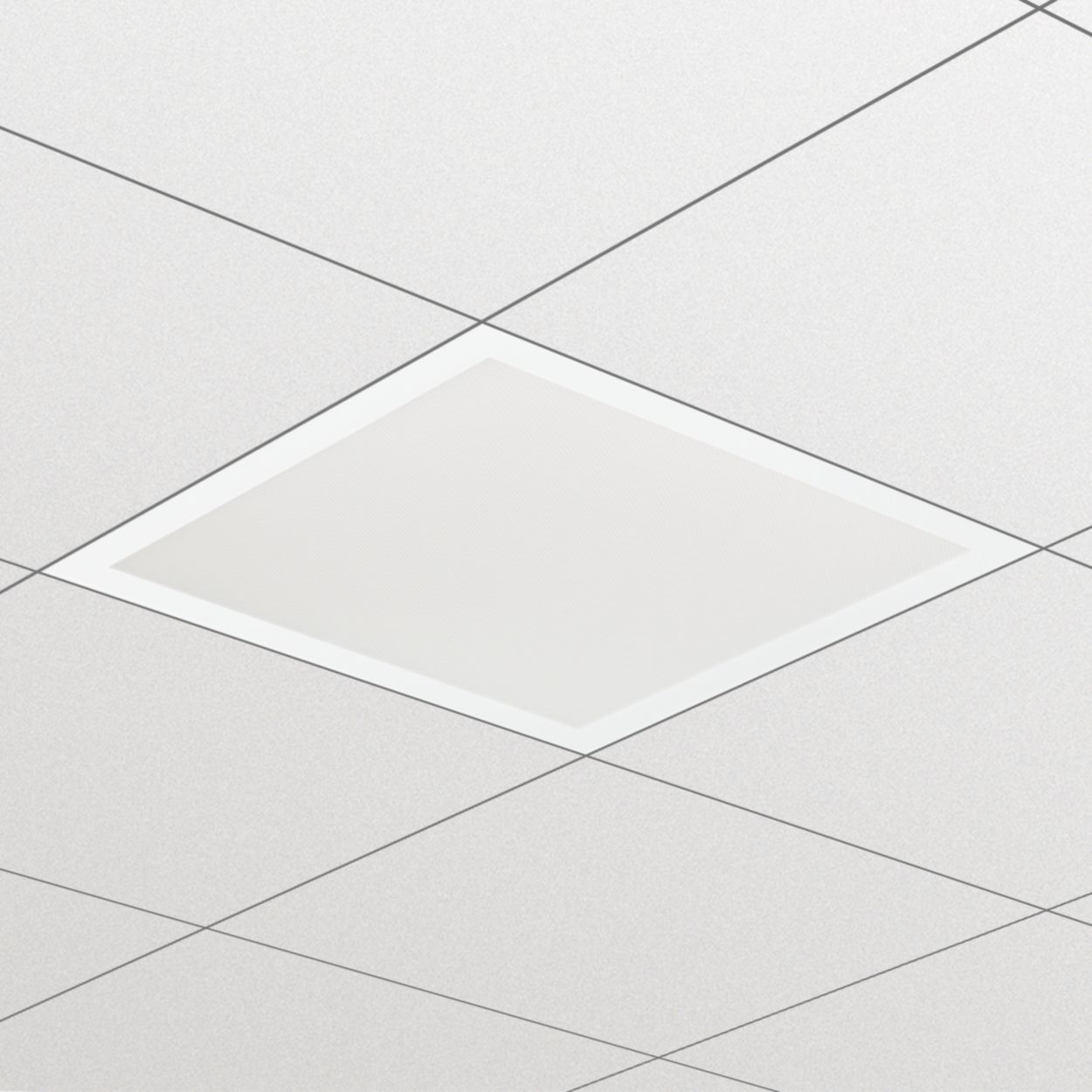

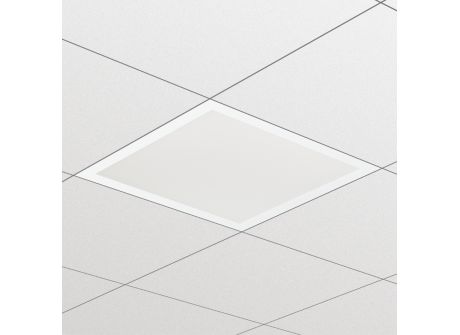

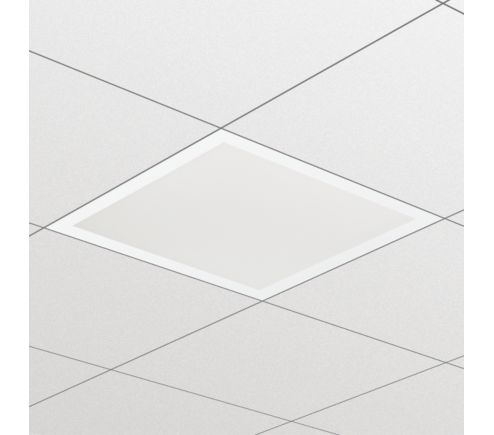

      SlimBlend Square, recessed

      RC400B LED36S/840 PSD W60L60 CPC PIP

      Order code: 98153200

      Full product code: 871869998153200

      Downloads

      Leaflet
      Size:498.0 kB

      See all downloads

    Specifications Show all

    General Information
    Beam angle of light source
    - °
    Light source colour
    840 neutral white
    Light source replaceable
    No
    Number of gear units
    1 unit
    Driver/power unit/transformer
    Power supply unit with DALI and SystemReady interface, Interact-ready
    Driver included
    Yes
    Optic type
    No  [ -]
    Luminaire light beam spread
    120°
    Control interface
    Interact office
    Connection
    Push-in connector 5-pole (PI)
    Cable
    -
    Protection class IEC
    Safety class II (II)
    Glow-wire test
    650/30  [ Temperature 650 °C, duration 30 s]
    Flammability mark
    F  [ For mounting on normally flammable surfaces]
    CE mark
    CE mark
    ENEC mark
    ENEC mark
    Warranty period
    5 years
    Constant light output
    No
    Number of products on MCB (16 A type B)
    24
    Photobiological risk
    Photobiological risk group 0 @ 200mm to EN62471
    EU RoHS compliant
    Yes
    Product family code
    RC400B  [ SlimBlend recessed mod. 600]
    Unified glare rating CEN
    16
    Light Technical
    Saturated Red
    >50
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input frequency
    50 to 60 Hz
    Initial CLO power consumption
    - W
    Average CLO power consumption
    - W
    Inrush current
    20.4 A
    Inrush time
    195 ms
    Power factor (min.)
    0.9
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Housing material
    Stainless steel
    Reflector material
    -
    Optic material
    Polymethyl methacrylate
    Optical cover/lens material
    Polymethyl methacrylate
    Fixation material
    Steel
    Optical cover/lens finish
    Textured
    Overall length
    597 mm
    Overall width
    597 mm
    Overall height
    52 mm
    Colour
    white
    Dimensions (height x width x depth)
    52 x 597 x 597 mm (2 x 23.5 x 23.5 in)
    Approval and Application
    Ingress protection code
    IP20 (front IP40)
    Mech. impact protection code
    IK02  [ 0.2 J standard]
    Initial Performance (IEC Compliant)
    Initial luminous flux (system flux)
    3600 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    120 lm/W
    Init. Corr. Colour Temperature
    4000 K
    Init. Colour rendering index
    >80
    Initial chromaticity
    (0.38, 0.38) SDCM<3
    Initial input power
    30 W
    Power consumption tolerance
    +/-10%
    Over Time Performance (IEC Compliant)
    Control gear failure rate at median useful life 50,000 h
    5 %
    Lumen maintenance at median useful life* 50,000 h
    L80
    Application Conditions
    Ambient temperature range
    +10 to +40 °C
    Performance ambient temperature Tq
    25 °C
    Maximum dimming level
    1%
    Suitable for random switching
    No
    Product Data
    Full product code
    871869998153200
    Order product name
    RC400B LED36S/840 PSD W60L60 CPC PIP
    EAN/UPC – product
    8718699981532
    Order code
    98153200
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    1
    SAP material
    910505101934
    SAP net weight (piece)
    5.600 kg
    Installation diagrams
     SlimBlend recessed mod. 600
    SlimBlend recessed mod. 600
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 498.0 kB
    Visuals
    Brochures
    Software plugins
    • IES _RC400BLED36S840OCPSDW60L60 IES 8.5 kB
    • ULD _RC400BLED36S840OCPSDW60L60 ULD 57.0 kB
    • Relux _RC400BLED36S840OCPSDW60L60 ROLF 46.4 kB
    • LDT _RC400BLED36S840OCPSDW60L60 LDT 6.6 kB
