| Number of light sources | 1
[ 1 pc] |
| Lamp family code | LED34S
[ LED Module, system flux 3400 lm] |
| Beam angle of light source | 120
°
|
| Light source colour | 930 warm white
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Gear | -
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optic type | No
[ -] |
| Optical cover/lens type | PC
[ Polycarbonate bowl/cover] |
| Luminaire light beam spread | 86°
|
| Control interface | -
|
| Connection | PIP
[ Push-in connector and pull relief] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Glow-wire test | 850/5
[ Temperature 850 °C, duration 5 s] |
| Flammability mark | F
[ For mounting on normally flammable surfaces] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| UL mark | -
|
| Warranty period | 5 years
|
| Glare-shielding accessories | No
[ -] |
| Constant light output | No
|
| Number of products on MCB (16 A type B) | 24
|
| EU RoHS compliant | Yes
|

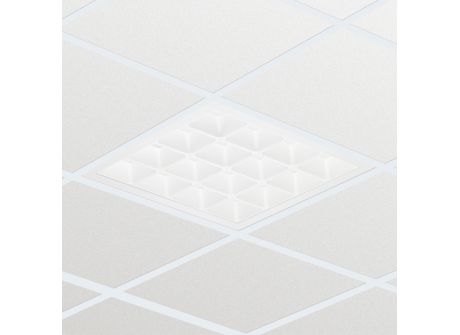

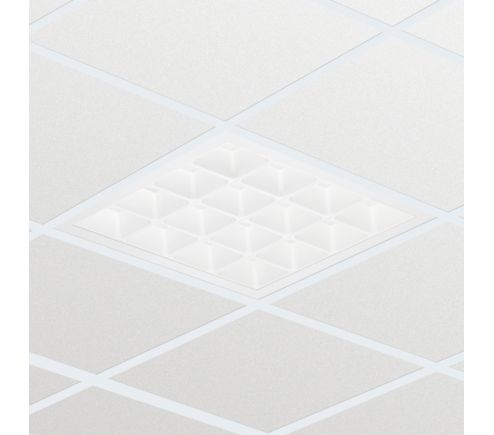

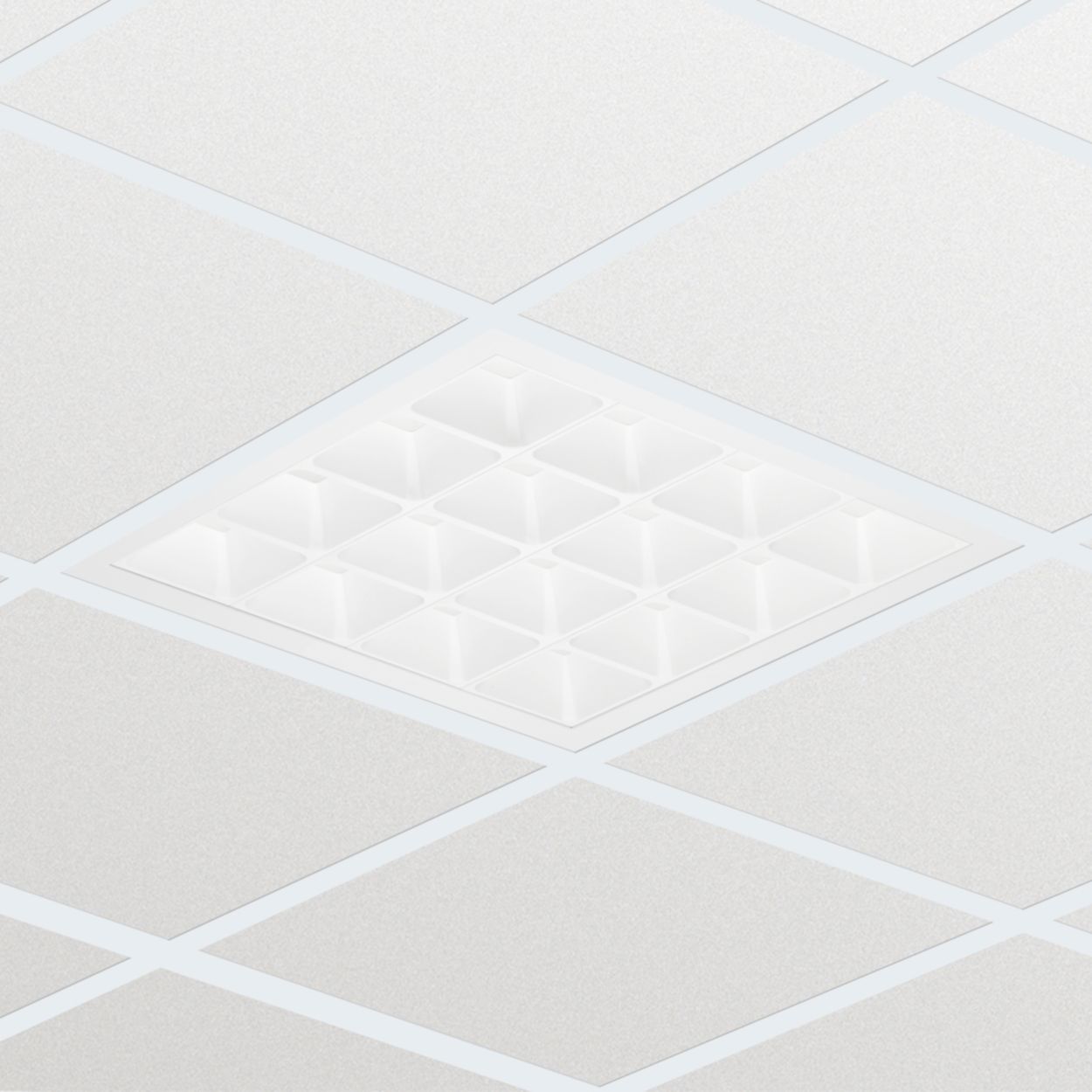

| Product family code | RC461B
[ PowerBalance recessed] |
| Unified glare rating CEN | 16
|
| Saturated Red | >50
|
| Input Voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 21
A
|
| Inrush time | 0.28
ms
|
| Power factor (min.) | 0.9
|
| Dimmable | No
|
| Housing material | Steel
|
| Reflector material | Polycarbonate
|
| Optic material | -
|
| Optical cover/lens material | Polycarbonate
|
| Gear tray material | Steel
|
| Fixation material | -
|
| Optical cover/lens finish | Matte
|
| Overall length | 597
mm
|
| Overall width | 597
mm
|
| Overall height | 86
mm
|
| Colour | White RAL 9003
|
| Dimensions (height x width x depth) | 86 x 597 x 597 mm (3.4 x 23.5 x 23.5 in)
|
| Ingress protection code | IP20 (front IP40)
|
| Mech. impact protection code | IK02
[ 0.2 J standard] |
| Initial luminous flux (system flux) | 3400
lm
|
| Initial luminous flux at colour temperature of 4,000 K | 3400
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 131
lm/W
|
| Init. Corr. Colour Temperature | 3000
K
|
| Init. colour rendering index | ≥90
|
| Initial chromaticity | (0.38, 0.38) SDCM <3
|
| Initial input power | 26
W
|
| Power consumption tolerance | +/-10%
|
| Control gear failure rate at median useful life 50,000 h | 5
%
|
| Lumen maintenance at median useful life* 50,000 h | L90
|
| Ambient temperature range | +10 to +40 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | 1%
|
| Suitable for random switching | No
|
| Full product code | 871869996475700
|
| Order product name | RC461B LED34S/930 PSU W60L60 VPC PIP
|
| EAN/UPC – product | 8718699964757
|
| Order code | 96475700
|
| SAP numerator – quantity per pack | 1
|
| SAP numerator – packs per outer box | 1
|
| Material no. (12 NC) | 910505100269
|
| SAP net weight (piece) | 4.700
kg
|
