    • PowerBalance gen2 – sustainable performance

      RC461B LED34S/940 PSD W60L60 VPC PIP
      LED

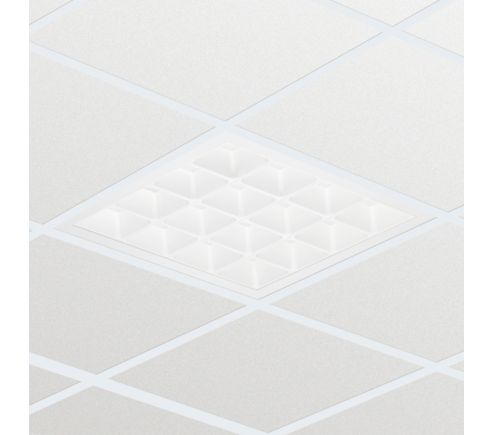

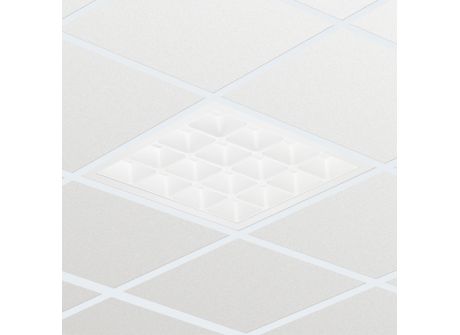

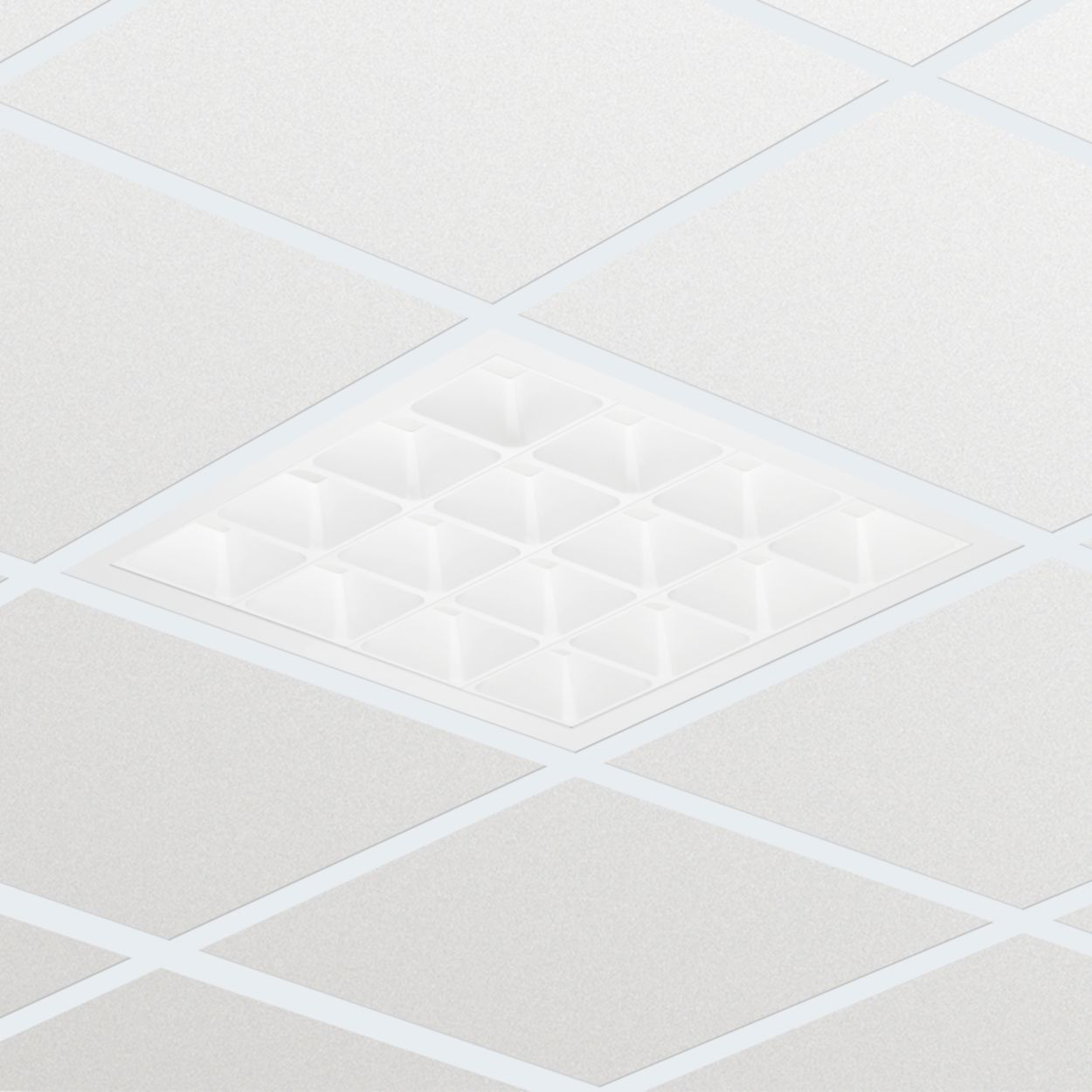

      RC461B LED34S/940 PSD W60L60 VPC PIP

      RC461B LED34S/940 PSD W60L60 VPC PIP

      Order code: 96451100

      Full Product Code: 871869996451100

      Downloads

      Leaflet
      Size:422.7 kB

      See all downloads

    Specifications Show all

    General Information
    Number of light sources
    1  [ 1 pc]
    Lamp family code
    LED34S  [ LED Module, system flux 3400 lm]
    Beam angle of light source
    120 °
    Light source colour
    940 neutral white
    Light source replaceable
    No
    Number of gear units
    1 unit
    Gear
    -
    Driver/power unit/transformer
    PSD  [ Power supply unit with DALI interface]
    Driver included
    Yes
    Optic type
    No  [ -]
    Optical cover/lens type
    PC  [ Polycarbonate bowl/cover]
    Luminaire light beam spread
    86°
    Control interface
    DALI
    Connection
    PIP  [ Push-in connector and pull relief]
    Cable
    -
    Protection class IEC
    Safety class I (I)
    Glow-wire test
    850/5  [ Temperature 850 °C, duration 5 s]
    Flammability mark
    F  [ For mounting on normally flammable surfaces]
    CE mark
    CE mark
    ENEC mark
    ENEC plus mark
    UL mark
    -
    Warranty period
    5 years
    Glare shielding accessories
    No  [ -]
    Constant light output
    No
    Number of products on MCB
    24
    Product Family Code
    RC461B  [ PowerBalance recessed]
    Unified glare rating CEN
    16
    Light Technical
    Saturated Red (R9)
    >50
    Operating and Electrical
    Input voltage
    220-240 V
    Input frequency
    50 to 60 Hz
    Inrush current
    21 A
    Inrush time
    0.28 ms
    Power factor (min.)
    0.9
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Housing material
    Steel
    Reflector material
    Polycarbonate
    Optic material
    -
    Optical cover/lens material
    Polycarbonate
    Gear tray material
    Steel
    Fixation material
    -
    Optical cover/lens finish
    Matte
    Overall length
    597 mm
    Overall width
    597 mm
    Overall height
    86 mm
    Colour
    White RAL 9003
    Dimensions (height x width x depth)
    86 x 597 x 597 mm (3.4 x 23.5 x 23.5 in)
    Approval and Application
    Ingress protection code
    IP20  [ Finger-protected]
    Mech. impact protection code
    IK02  [ 0.2 J standard]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    3400 lm
    Initial luminous flux at color temperature of 4000 K
    3400 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    139 lm/W
    Init. Corr. colour temperature
    4000 K
    Init. colour rendering index
    ≥90
    Initial chromaticity
    (0.38, 0.38) SDCM <3
    Initial input power
    24.5 W
    Power consumption tolerance
    +/-10%
    Over Time Performance (IEC Compliant)
    Control gear failure rate at median useful life 50,000 h
    5 %
    Median useful life L70B50
    70000 h
    Median useful life L80B50
    50000 h
    Median useful life L90B50
    25000 h
    Lumen maintenance at median useful life* 50,000 h
    L90
    Application Conditions
    Ambient temperature range
    +10 to +40 °C
    Performance ambient temperature Tq
    25 °C
    Maximum dimming level
    1%
    Suitable for random switching
    Yes (relates to presence/movement detection and daylight harvesting)
    Product Data
    Full product code
    871869996451100
    Order product name
    RC461B LED34S/940 PSD W60L60 VPC PIP
    EAN/UPC – product
    8718699964511
    Order code
    96451100
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    1
    Material no. (12NC)
    910505100245
    Net weight (piece)
    4.700 kg
    Installation Diagrams
    Photometrics
    IFGU1_RC461BPSDW60L601xLED34S940
    IFGU1_RC461BPSDW60L601xLED34S940
