        Product family information

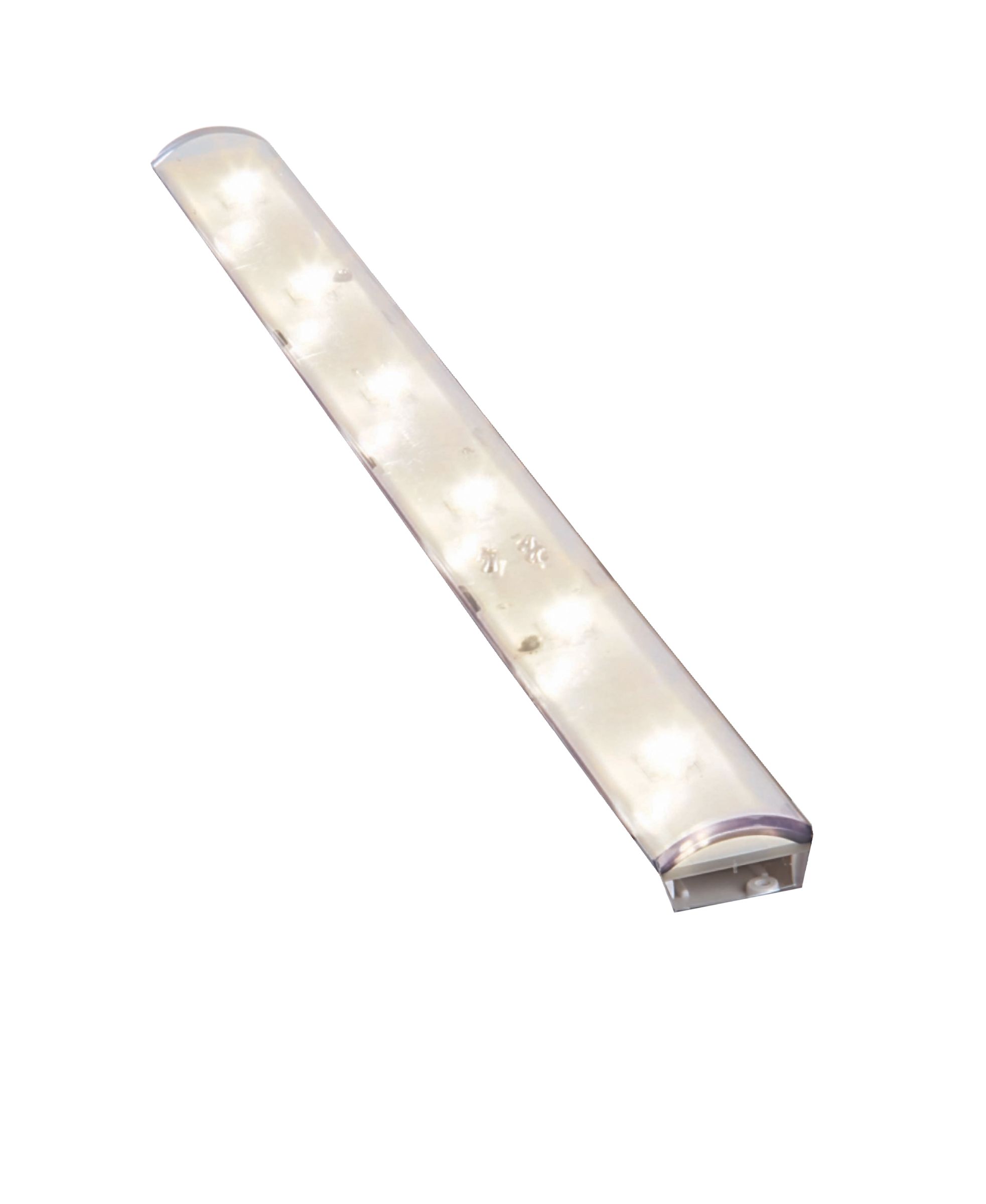

        eW Cove QLX Powercore represents the next generation of high-quality linear LED cove lighting. This elegant, low-profile fixture delivers a high output of white or solid color light at an affordable price. eW Cove QLX Powercore is designed to replace traditional white cove lighting sources for wall and ceiling glow effects, wall washing, and indirect lighting from a single cove. Multiple color temperatures, solid colors, beam angles, and lengths afford an abundance of design options.Integrated Powercore technology ensures rapid, efficient and accurate control of power output to the fixture directly from line voltage, eliminating the need for external power supplies. Use of standard wiring dramatically simplifies installation and helps lower total system cost.

        Benefits

        Excellent output of white or solid-color light
        Multiple options for design flexibility
        Energy-efficient, easy to install, and long lifetime

        Features

        Light output of up to 300 lumens per fixture
        Available in four color temperatures, ranging from a warm 2700 K to a cool 4000 K, and four solid colors (red, amber, green, and blue)
        End-to-end locking power connectors can make 180º turns; rotation in 10° increments through 180° for precise aiming and color mixing
        Smooth dimming capability with standard ELV-type dimmers
        Integrated Powercore technology

        Applications

        Wall and ceiling glow effects
        Wall washing
        Indirect lighting
        Downloads
        Leaflets
        Visuals
        Software plugins
        الأدوات المتعلقة
        Product family details
        General
        Type
        • BCX414
        Light source
        • Integral LED-module
        Power (maximum at full output, steady state)
        • 6 W
        Beam angle
        • 110 x 110º (wide beam) or 60 x 115º (medium beam)
        Luminous flux
        • Wide beam:
        • 232 lm (2700 K), 242 (3000 K), 235 lm (3500 K) or 272 lm (4000 K)
        • Medium beam:
        • 247 lm (2700 K), 276 (3000 K), 272 lm (3500 K) or 270 lm (4000 K)
        Luminaire efficacy
        • Wide beam:
        • 45.4 lm/W (2700 K), 42.5 lm/W (3000 K), 42.7 lm/W (3500 K) or 48.7 lm/W (4000 K)
        • Medium beam:
        • 45.9 lm/W (2700 K), 49.3 lm/W (3000 K), 53.6 lm/W (3500 K) or 47.4 lm/W (4000 K)
        Correlated Color Temperature
        • 2700, 3000, 3500 or 4000 K
        Color Rendering Index
        • 82 (2700 K), 82 (3000 K), 85 (3500 K), 83 (4000 K)
        Maintenance of lumen output - L70
        • 70,000 hours at 25ºC
        • 50,000 hours at 50ºC
        Maintenance of lumen output - L50
        • 90,000 hours at 25ºC
        • 70,000 hours at 50ºC
        Operating temperature range
        • -20 to +50ºC
        Driver
        • Integrated
        Mains voltage
        • 100/120/220 - 240 V AC / 50-60 Hz
        Dimming
        • Compatible with many commercial available ELV dimmers
        Optic
        • Wide and medium beam
        Material
        • Housing: injection-molded plastic
        • Lens: polycarbonate
        Color
        • White
        Connection
        • Integral male / female connectors
        Installation
        • Surface mounted or on mounting track
        Accessories
        • Mounting track, leader cable and jumper cables
