    • TUV PL-S - Compact solution for residential applications

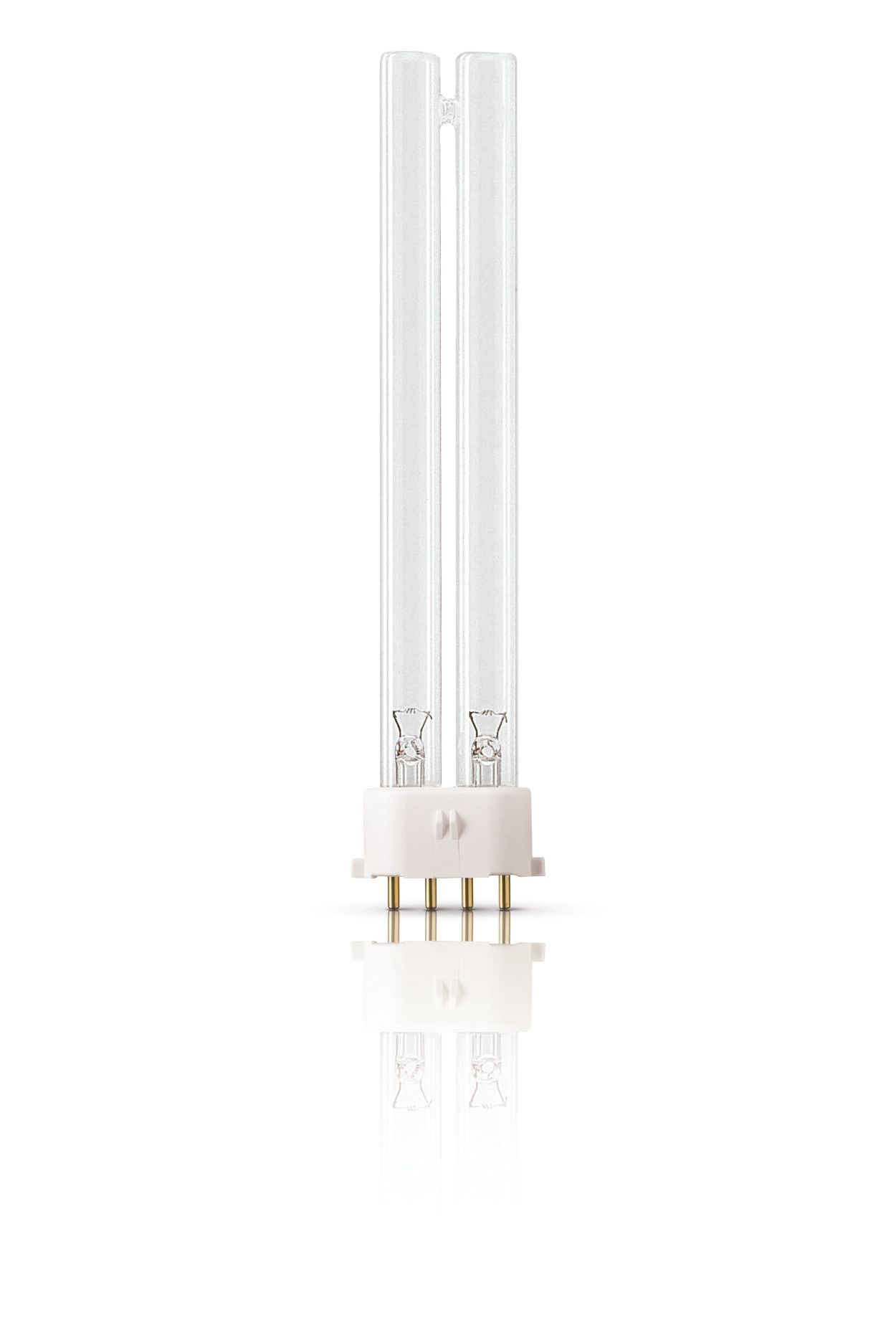

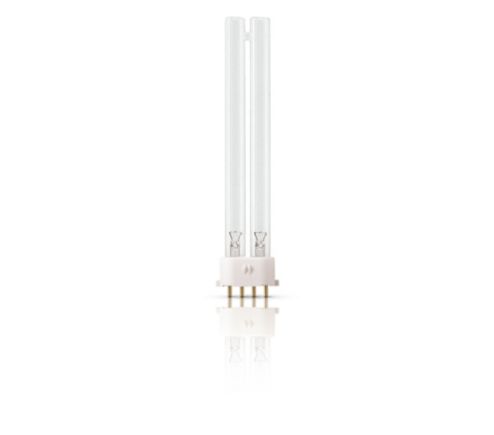

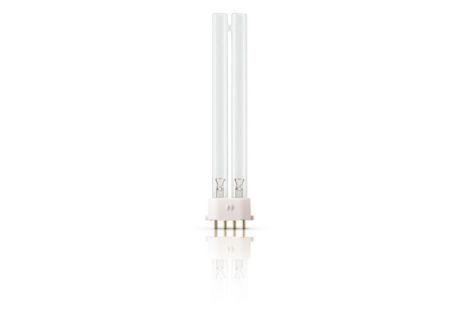

      TUV PL-S 9W/4P 1CT/6X10BOX
      TUV PL-S 9W/4P 1CT/6X10BOX
      TUV PL-S

      TUV PL-S 9W/4P 1CT/6X10BOX

      Order code: 71083380

      Full product code: 871150071083380

      Downloads

      Leaflet
      Size:2.2 MB

      See all downloads

    Specifications Show all

    General information
    Cap base
    2G7  [ 2G7]
    Main application
    Disinfection
    Useful life (nom.)
    9000 h
    Light technical
    Colour Code
    TUV
    Colour designation
    -  [ Not Specified]
    Depreciation at useful lifetime
    0.35 %
    Operating and electrical
    Power (Rated) (Nom)
    8.6 W
    Lamp current (nom.)
    0.17 A
    Voltage (Nom)
    60 V
    Mechanical and housing
    Cap-base information
    4P
    Bulb shape
    2xT12
    Approval and application
    Mercury (Hg) content (nom.)
    3.0 mg
    UV
    UV-C Radiation
    2.3 W
    Product data
    Full product code
    871150071083380
    Order product name
    TUV PL-S 9W/4P
    EAN/UPC – product
    8711500710833
    Order code
    71083380
    SAP numerator – quantity per pack
    1
    Local code description
    TUV PL-S 9W/4P 1CT/6X10BOX
    Numerator – packs per outer box
    60
    SAP material
    927901904007
    Net Weight (Piece)
    30.000 g
    Installation diagrams
    2G7
    2G7
    Photometrics
    XDPB_XUTUVPLS-Spectral power distribution B/W
    XDPB_XUTUVPLS-Spectral power distribution B/W
    XDPO_XUTUVPLS-Spectral power distribution Colour
    XDPO_XUTUVPLS-Spectral power distribution Colour
