    • TUV Amalgam XPT-Maximum efficiency, independent of temperature

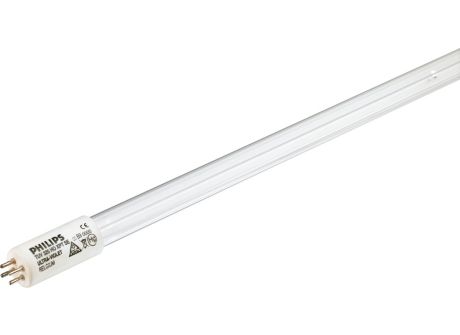

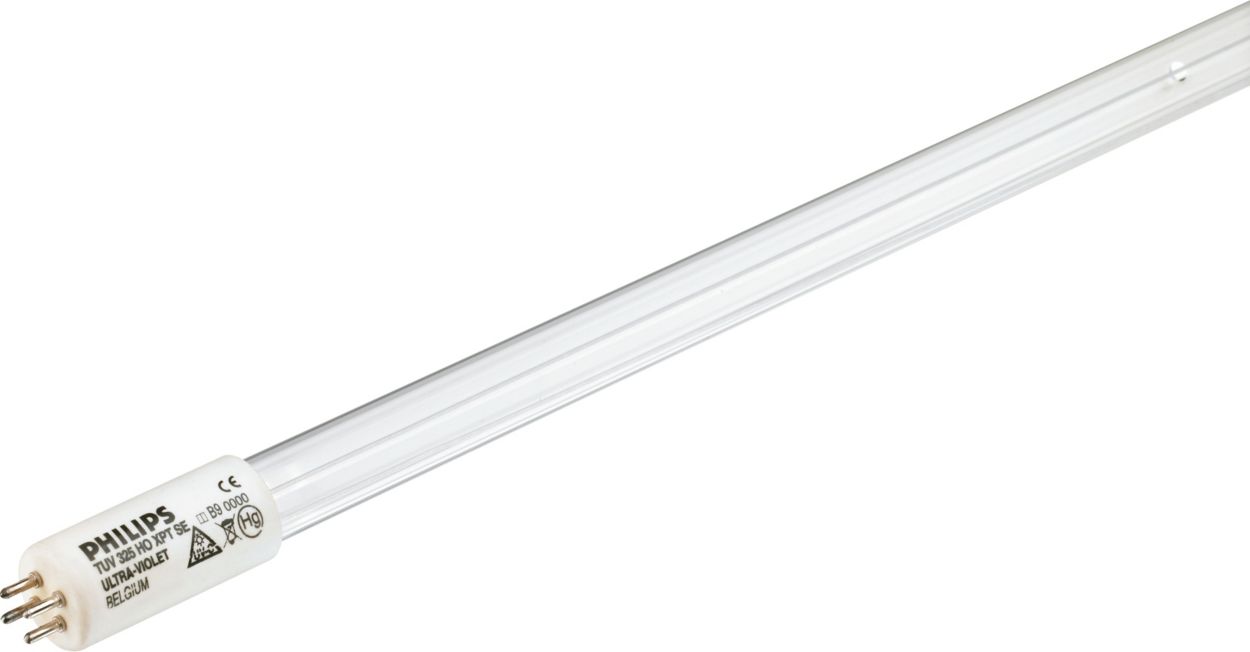

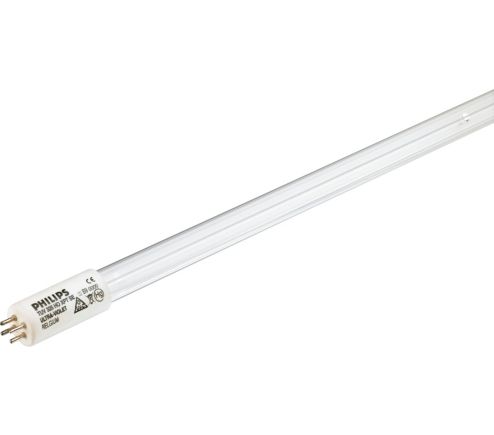

      TUV 130W XPT SE UNP/20
      TUV 130W XPT SE UNP/20
      TUV Amalgam XPT systems

      TUV 130W XPT SE UNP/20

      Order code: 20943605

      Full product code: 871150020943605

      Downloads

      Leaflet
      Size:2.3 MB

      See all downloads

    Specifications Show all

    General information
    Cap base
    G10.2Q  [ G10.2q]
    Operating position
    P10  [ Parallel +/-10D or Horizontal(HOR)]
    Main application
    Disinfection
    Light technical
    Depreciation at useful lifetime
    15 %
    Operating and electrical
    Power (Rated) (Nom)
    130 W
    Lamp current (nom.)
    2.1 A
    Ignition supply voltage (min.)
    70 V
    Controls and dimming
    Dimmable
    Yes
    Product data
    Full product code
    871150020943605
    Order product name
    TUV 130W XPT SE UNP/20
    EAN/UPC – product
    8711500209436
    Order code
    20943605
    SAP numerator – quantity per pack
    1
    Local code description
    TUV 130W XPT SE UNP/20
    Numerator – packs per outer box
    20
    SAP material
    928101805112
    Net Weight (Piece)
    0.175 kg
    Installation diagrams
    G10.2q
    G10.2q
    Performance diagrams
    XDLM_XDTUVXPT_0006-Lumen maintenance diagram
    XDLM_XDTUVXPT_0006-Lumen maintenance diagram
    Photometrics
    XDPB_XDTUVXPT-Spectral power distribution B/W
    XDPB_XDTUVXPT-Spectral power distribution B/W
