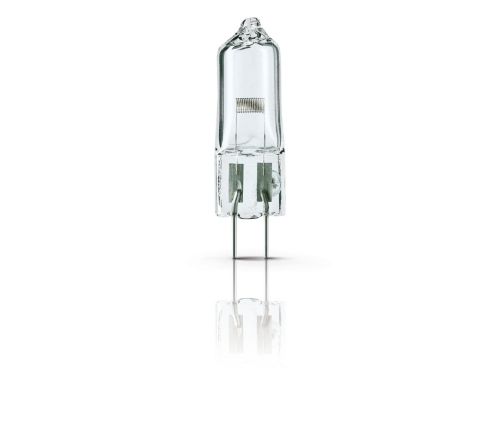

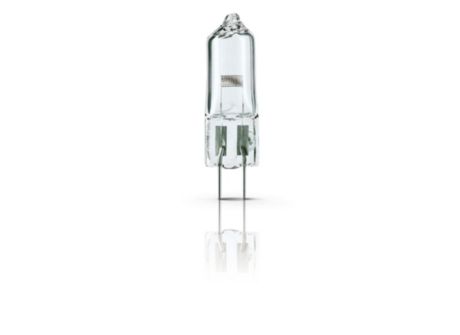

7158 150W G6.35 24V 1CT/10X10F

Specifications Show all

General information

Cap base	G6.35  [ G6.35]
Philips code	7158
ANSI Code	FCS
LIF Code	A1/216
Operating position	S90  [ Standing +/-90D or Base Down (BDH)]
Main application	Projection
Life to 50% failures (nom.)	50 h

Light technical

Luminous flux (rated) (nom.)	5200 lm
Correlated Colour Temperature (Nom)	3450 K
Colour rendering index (nom.)	100

Operating and electrical

Power (Rated) (Nom)	150 W
Voltage (Nom)	24 V

Mechanical and housing

Bulb material	Quartz-UV Open
Filament shape	Flat
Filament dimensions WxH	5.8x2.9

Luminaire design requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	400 °C
Pinch Temperature (Max)-DUP(do not use)	400 °C

Product data

Full product code	871150040983650
Order product name	7158 150W G6.35 24V 1CT/10X10F
EAN/UPC – product	8711500409836
Order code	40983650
SAP numerator – quantity per pack	1
Local code description	7158 150W G6.35 24V 1CT/10X10F
Numerator – packs per outer box	100
SAP material	923870520503
Net Weight (Piece)	0.004 kg
