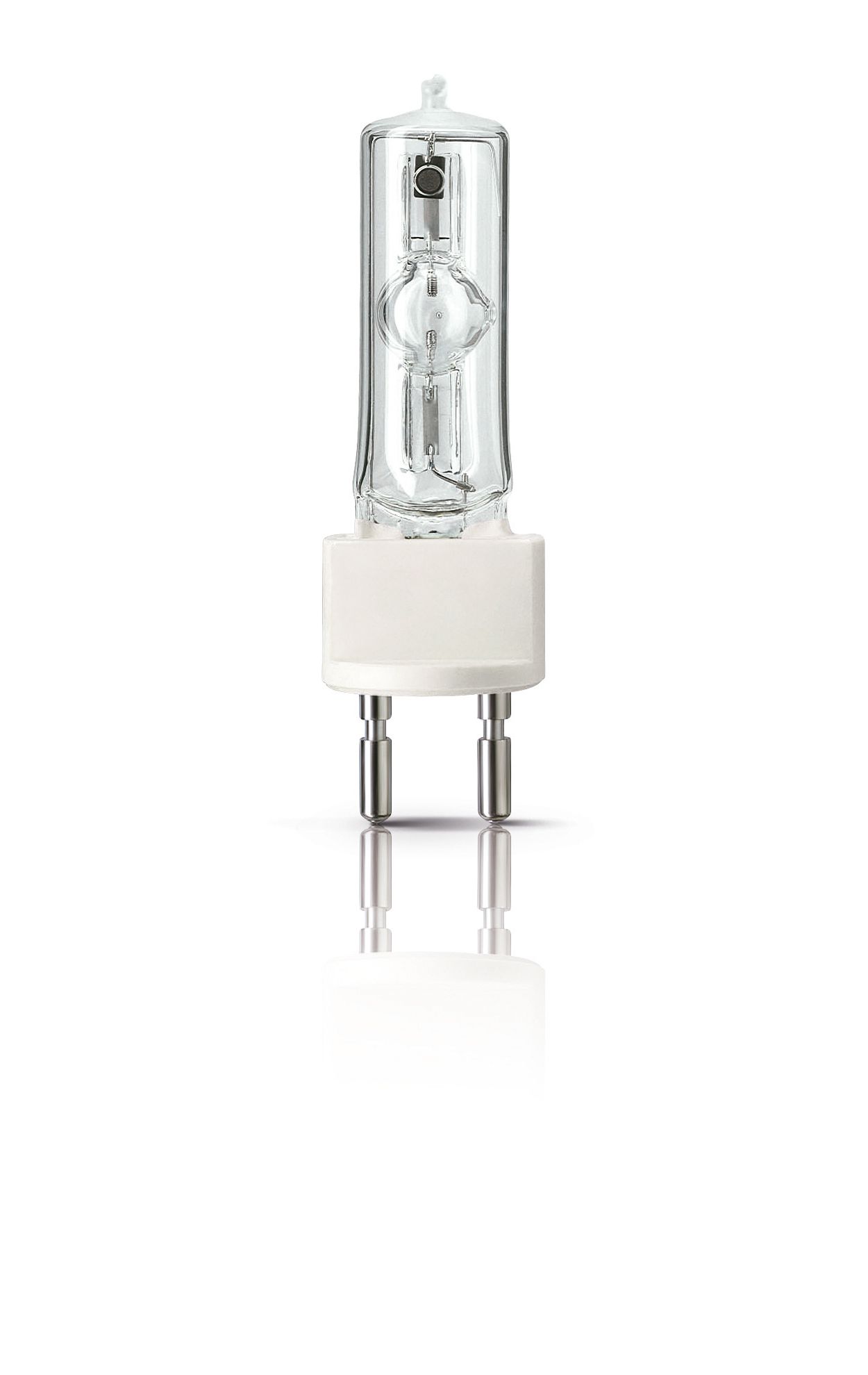

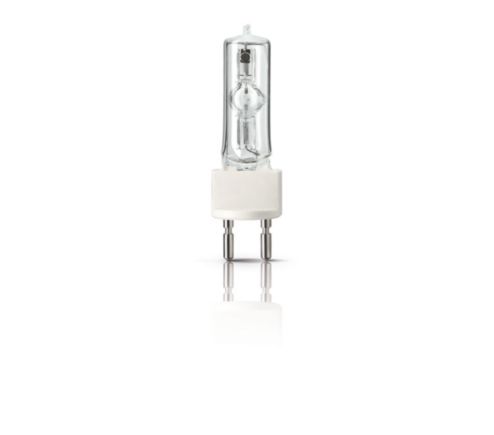

MSR 700 1CT/8

Specifications Show all

General information

Cap base	G22  [ G22]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	1000 h
System description	na  [ -]

Light technical

Colour Code	-  [ Not Specified]
Luminous flux (nom.)	55000 lm
Chromaticity coordinate X (nom.)	325
Chromaticity coordinate Y (nom.)	320
Correlated Colour Temperature (Nom)	5900 K
Luminous efficacy (rated) (nom.)	80 lm/W
Colour rendering index (nom.)	75

Operating and electrical

Power (Rated) (Nom)	700 W
Lamp current (nom.)	12 A
Ignition supply voltage (min.)	207 V

Controls and dimming

Dimmable

No

Mechanical and housing

Cap-base information

na  [ -]

Luminaire design requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	872790091575400
Order product name	MSR 700 1CT/8
EAN/UPC – product	8727900915754
Order code	91575400
SAP numerator – quantity per pack	1
Numerator – packs per outer box	8
SAP material	928078005114
Net Weight (Piece)	0.120 kg
