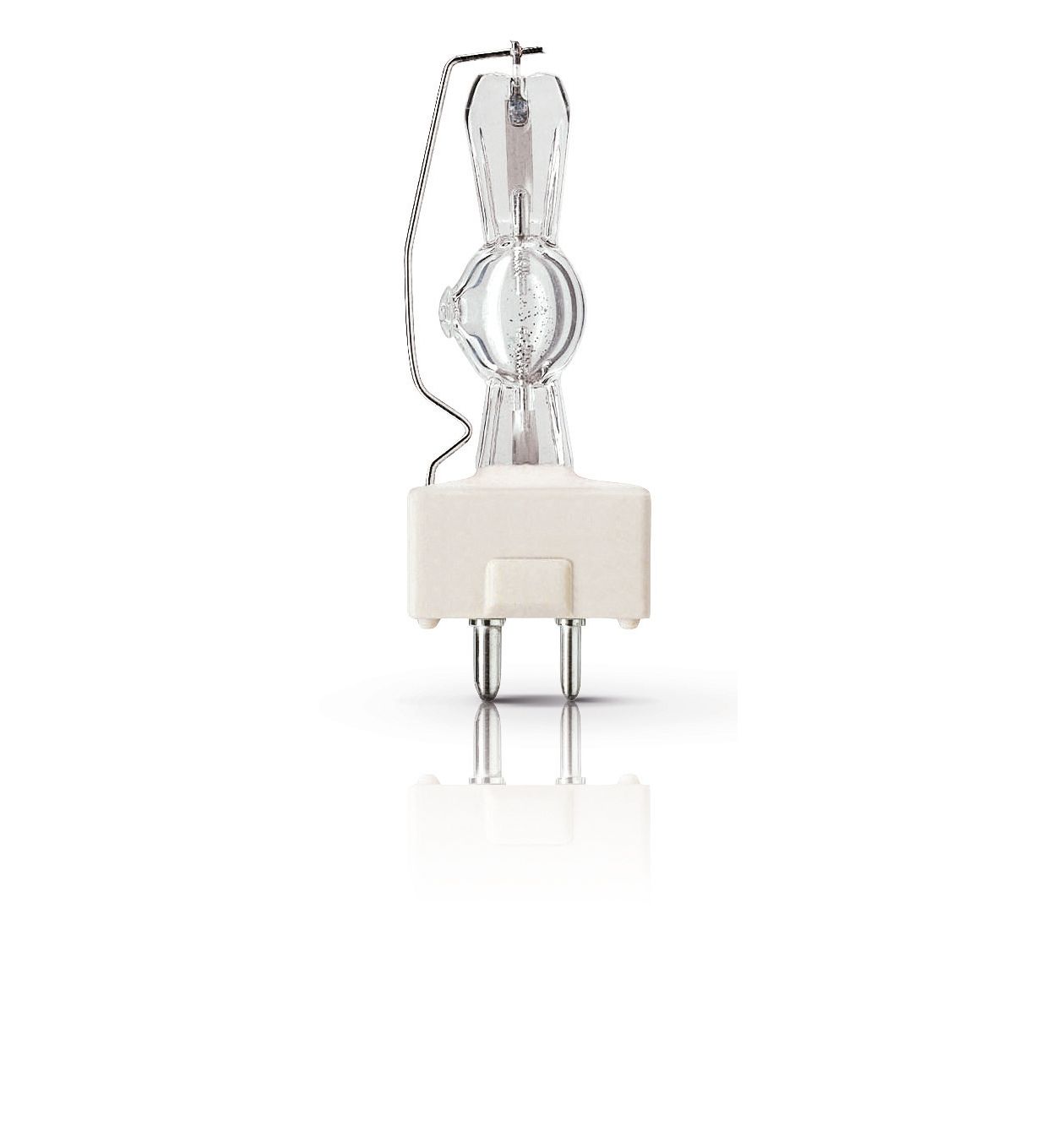

MSR 700 SA 1CT/4

Specifications Show all

General information

Cap base	GY9.5  [ GY9.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	750 h
System description	Short Arc

Light technical

Colour Code	-  [ Not Specified]
Luminous flux (nom.)	55000 lm
Chromaticity coordinate X (nom.)	333
Chromaticity coordinate Y (nom.)	342
Correlated Colour Temperature (Nom)	5600 K
Luminous efficacy (rated) (nom.)	79 lm/W
Colour rendering index (nom.)	80

Operating and electrical

Power (Rated) (Nom)	700 W
Lamp current (nom.)	11 A
Ignition supply voltage (min.)	207 V

Controls and dimming

Dimmable

No

Mechanical and housing

Cap-base information

na  [ -]

Luminaire design requirements

Bulb temperature (max.)	1000 °C
Pinch temperature (max.)	500 °C
Pinch Temperature (Max)-DUP(do not use)	500 °C

Product data

Full product code	871829122802800
Order product name	MSR 700 SA 1CT/4
EAN/UPC – product	8718291228028
Order code	22802800
SAP numerator – quantity per pack	1
Numerator – packs per outer box	4
SAP material	928170305115
Net Weight (Piece)	0.020 kg
