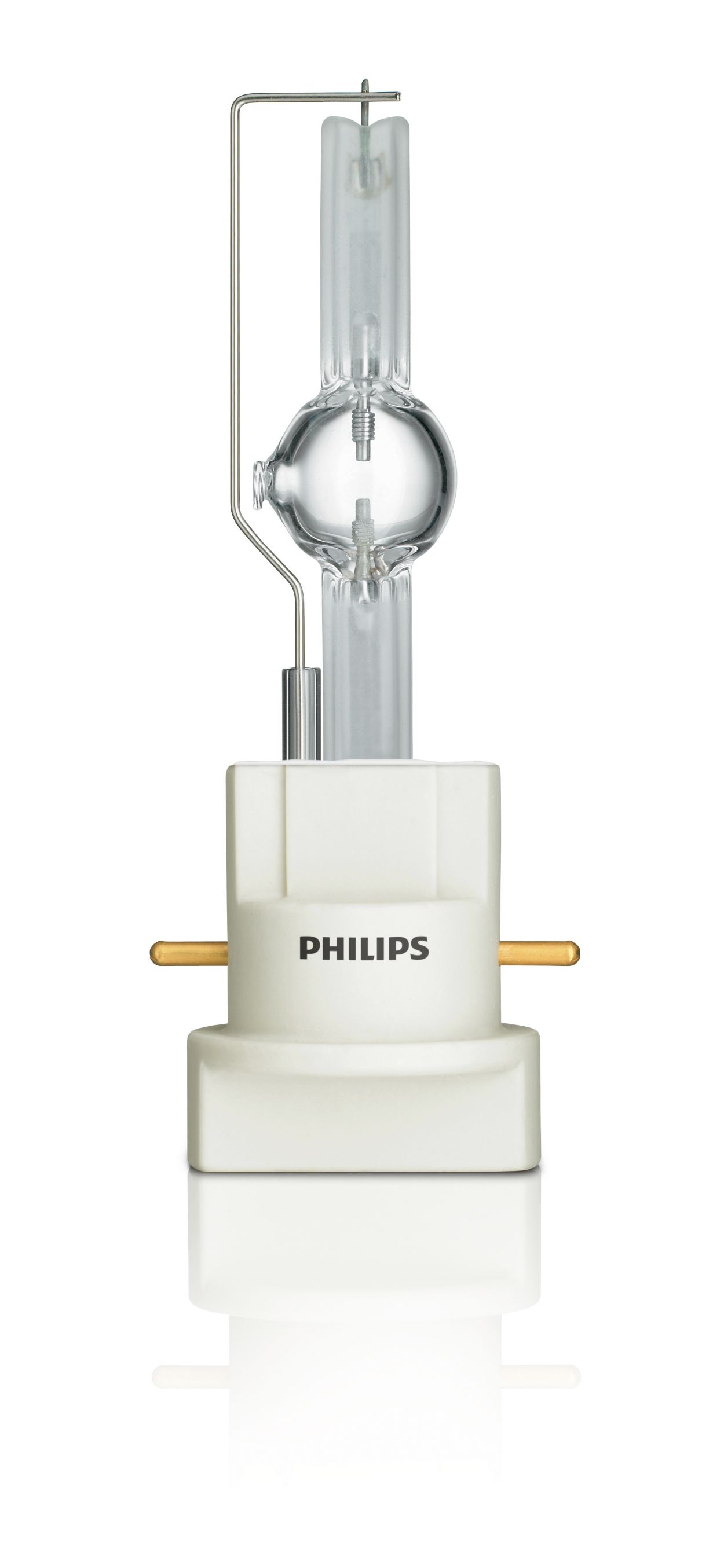

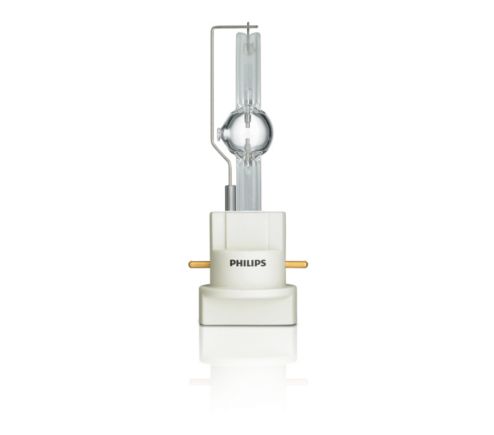

MSR Gold™ 700/2 MiniFastFit 1CT/4

Specifications Show all

General information

Cap base	PGJX28  [ PGJX28]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Entertainment
Life to 50% failures (nom.)	750 h
System description	MiniFastFit

Light technical

Colour Code	2
Luminous flux (min.)	44000 lm
Luminous flux (nom.)	47000 lm
Chromaticity coordinate X (nom.)	300
Chromaticity coordinate Y (nom.)	324
Correlated Colour Temperature (Nom)	7200 K
Luminous efficacy (rated) (nom.)	69 lm/W
Colour rendering index (nom.)	75

Operating and electrical

Power (Rated) (Nom)	700 W
Lamp current (nom.)	10.2 A
Ignition supply voltage (min.)	198 V

Controls and dimming

Dimmable

Yes

Mechanical and housing

Cap-base information

PGJX28

Luminaire design requirements

Bulb temperature (max.)	950 °C
Pinch temperature (max.)	500 °C
Pinch Temperature (Max)-DUP(do not use)	500 °C

Product data

Full product code	871829122117300
Order product name	MSR Gold™ 700/2 MiniFastFit 1CT/4
EAN/UPC – product	8718291221173
Order code	22117300
SAP numerator – quantity per pack	1
Numerator – packs per outer box	4
SAP material	928199905115
Net Weight (Piece)	0.052 kg
