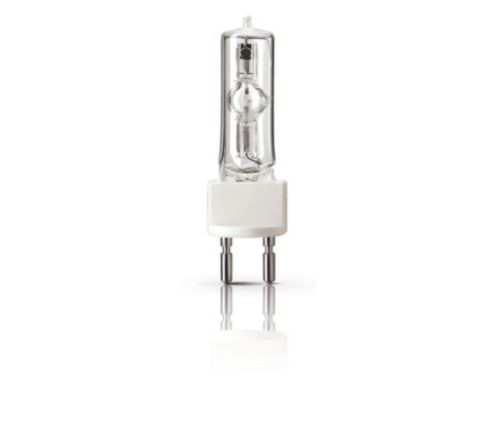

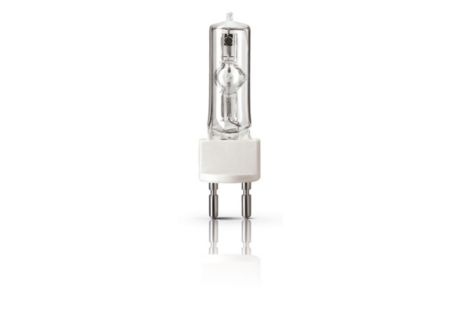

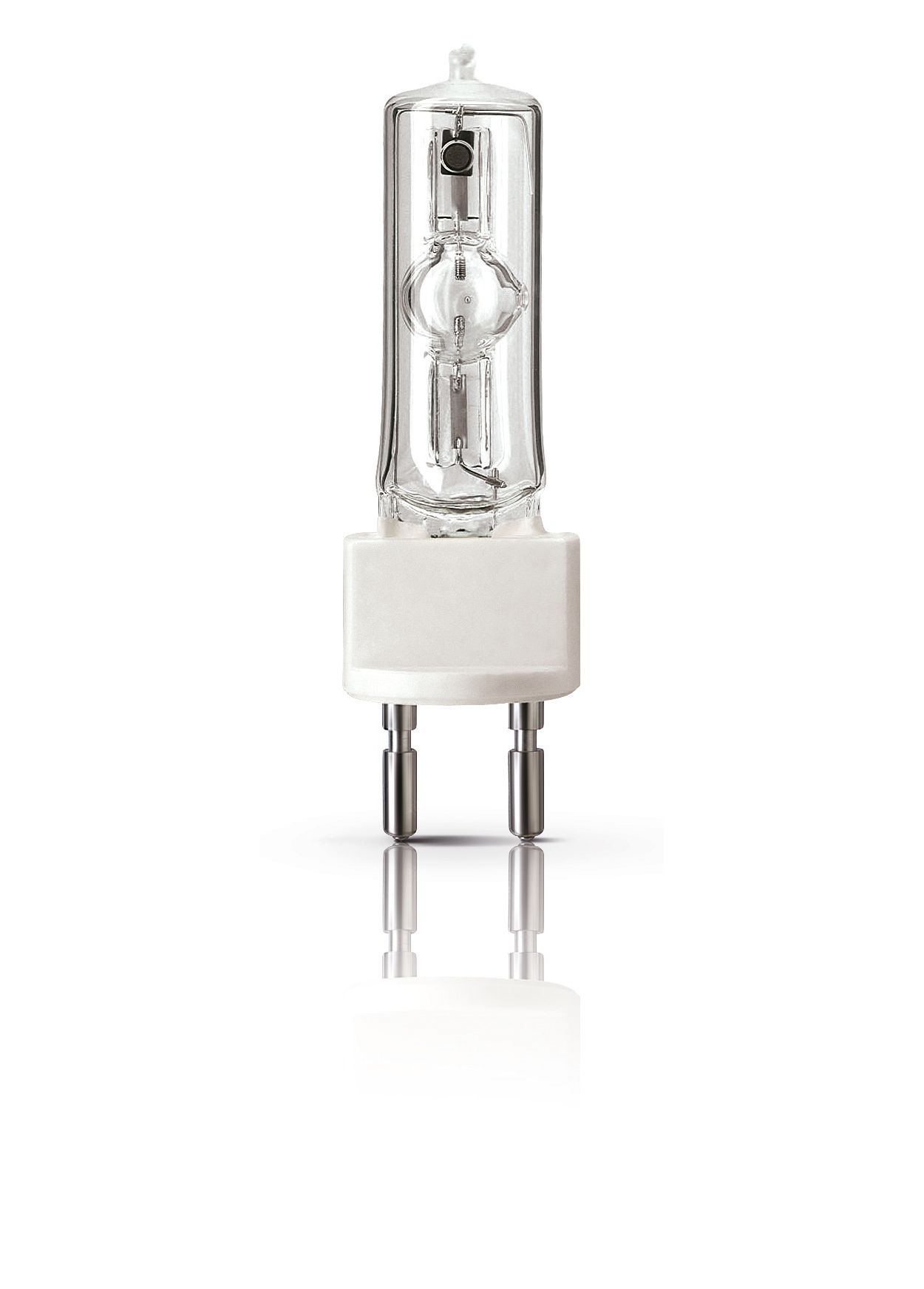

MSR 575 HR 1CT/4

Specifications Show all

General information

Cap base	G22  [ G22]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Theatre
Life to 50% failures (nom.)	1000 h
System description	Hot Restrike

Light technical

Colour Code	-  [ Not Specified]
Luminous flux (min.)	43200 lm
Luminous flux (nom.)	48000 lm
Chromaticity coordinate X (nom.)	323
Chromaticity coordinate Y (nom.)	328
Correlated Colour Temperature (Nom)	6000 K
Luminous efficacy (rated) (min.)	75 lm/W
Luminous efficacy (rated) (nom.)	83 lm/W
Colour rendering index (nom.)	90

Operating and electrical

Power (Rated) (Nom)	575 W
Lamp current (nom.)	6.75 A
Ignition supply voltage (min.)	207 V

Controls and dimming

Dimmable

Yes

Mechanical and housing

Cap-base information

na  [ -]

Luminaire design requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	871829122105000
Order product name	MSR 575 HR 1CT/4
EAN/UPC – product	8718291221050
Order code	22105000
SAP numerator – quantity per pack	1
Numerator – packs per outer box	4
SAP material	928097705115
Net Weight (Piece)	0.100 kg
